Name: Circular Downspout Roll Forming Machine Plc Control System
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سرریز
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

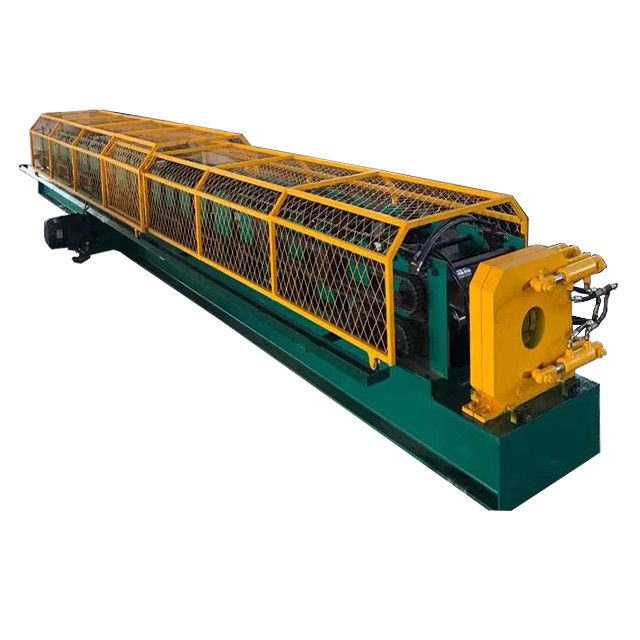

Circular Downspout Roll Forming Machine Plc Control System

circular downspout roll forming machine,plc control downspout roll forming machine,cold metal shaping downspout forming machine

plc control downspout roll forming machine

cold metal shaping downspout forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سیستم کنترل PLC دستگاه شکل دهی رول لوله دایره ای پایین

ضخامت مواد:

فولاد گالوانیزه 0.3-0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

قدرت اصلی:

سروو موتور 7.5 کیلووات

اجزای اصلی:

موتور، پمپ، PLC

گارانتی:

1 سال

ماده شفت:

45# فولاد

ابعاد (L*W*H):

9500X800X1200MM

برجسته کردن:

circular downspout roll forming machine,plc control downspout roll forming machine,cold metal shaping downspout forming machine

plc control downspout roll forming machine

cold metal shaping downspout forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

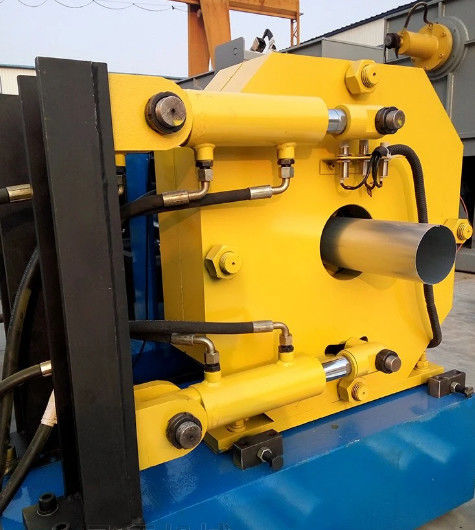

Circular Down Pipe Roll Forming Machine PLC Control System

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries.

The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.

Specification

Forming stations:	About 24 stations or according to you profile drawings
Machine structure:	Wall panel structure
Material thickness	0.3-0.8mm
Forming speed	5-12m/min (EXCLUDING CUTTING STOP TIME)
Main motor power	7.5KW
Hydraulic station power	7.5KW
Rollers material :	45# forged steel, surface coated with chrome
Way of drive :	Chain drive
Raw material request:	Galvanized steel,PPGI, Aluminum
Cutting blade material	Cr12Mov quenching treatment

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Circular Downspout Roll Forming Machine Plc Control System 0
