Name: Plc Down Pipe Roll Forming Machine Water Downspout Roller Bending
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سرریز
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Plc Down Pipe Roll Forming Machine Water Downspout Roller Bending

plc down pipe roll forming machine,bending down pipe roll forming machine,cold metal shaping gutter downspout machine

bending down pipe roll forming machine

cold metal shaping gutter downspout machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه خم کن غلتکی آب Downspout دستگاه ساخت لوله لوله آب

ظرفیت تولید:

12-15 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

وزن:

4500 کیلوگرم

اجزای اصلی:

PLC

گارانتی:

1 سال

ماده شفت:

45# فولاد

ماده غلتکی:

GCR15

برجسته کردن:

plc down pipe roll forming machine,bending down pipe roll forming machine,cold metal shaping gutter downspout machine

bending down pipe roll forming machine

cold metal shaping gutter downspout machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

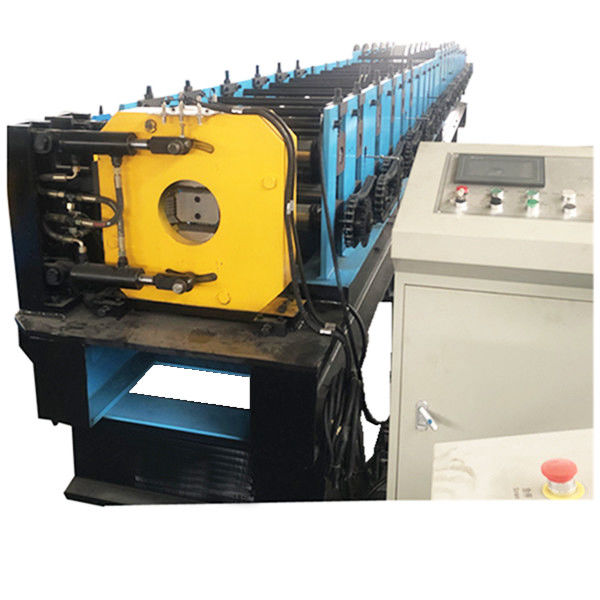

Water Downspout Roller Bending Machine Water Downpipe Making Machine

Rain leader pipe zinc downspout roll forming machine is some type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homeas it exits the pipe.A gutter is a channel installed at or just below the roofline at the edges of the home where the roof slopes downward.It is usuall made of vinyl or aluminum or copper also,stainless steel .Around rain gutter has a slight downward pitch toward the corners of the home,encouraging rainwater or snowmelt to flow "downhill" through the gutters and into the downspouts.

Specification

1	Machine name	Rain leader pipe zinc downspout roll forming machine
2	Dimension	750016001500mm
3	Weight	5.5T
4	Total power	7.5KW
5	Voltage	380V/50HZ/3PH
6	Forming steps	16 steps
7	Forming speed	12-15m/min
8	Material thickness	0.3-1.0mm
9	Tolerance	±1mm

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
