Name: Square 0.6mm PPGI Down Pipe Roll Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سرریز
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Square 0.6mm PPGI Down Pipe Roll Forming Machine Full Automatic

0.6mm down pipe roll forming machine,ppgi down pipe roll forming machine,cold metal shaping square downspout machine

ppgi down pipe roll forming machine

cold metal shaping square downspout machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU Famous

گواهی:

ISO CE

شماره مدل:

سرریز

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی لوله مربعی داونسپوت تمام اتوماتیک

ظرفیت تولید:

15 متر در دقیقه (بدون زمان برش)

ولتاژ:

380 ولت 50Hz 3Phases

ابعاد (L*W*H):

حدود 2 متر * 1.5 متر * 1.5 متر

ضخامت نورد:

0.4-0.6 میلی متر

گارانتی:

1 سال

ماده غلتکی:

45# فولاد کروم اندود

ماده مناسب:

آلومینیوم PPGI PPGL

برجسته کردن:

0.6mm down pipe roll forming machine,ppgi down pipe roll forming machine,cold metal shaping square downspout machine

ppgi down pipe roll forming machine

cold metal shaping square downspout machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

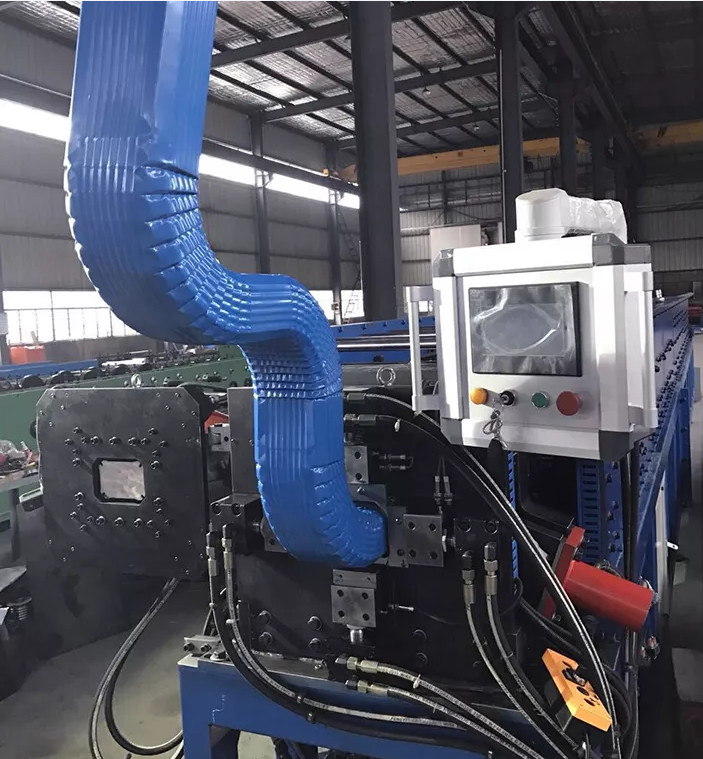

Square Downspout Pipe Roll Forming Machine Full Automatic

Uses: Collect roof rainwater and concentrate it on the rainwater pipes laid below the ground.

Usual format: Common specifications for round tubes are 40mm, 50 mm, 75 mm, 90 mm, 110 mm, 150 mm, 200 mm, 250 mm, 315 mm, 400 mm, 500 mm, etc. Common specifications of the square tube are 80mm*55mm, 80mm*63mm, 80mm*100mm, etc.

Specification

No.	Item	Description
1	Coil width	According to the final profile
2	Rolling speed	0-15m/min
3	Rolling thickness	0.4-0.6mm
4	Control system	PLC (Panasonic) as list in the note
5	Un Coiler	3T manual de-coiler

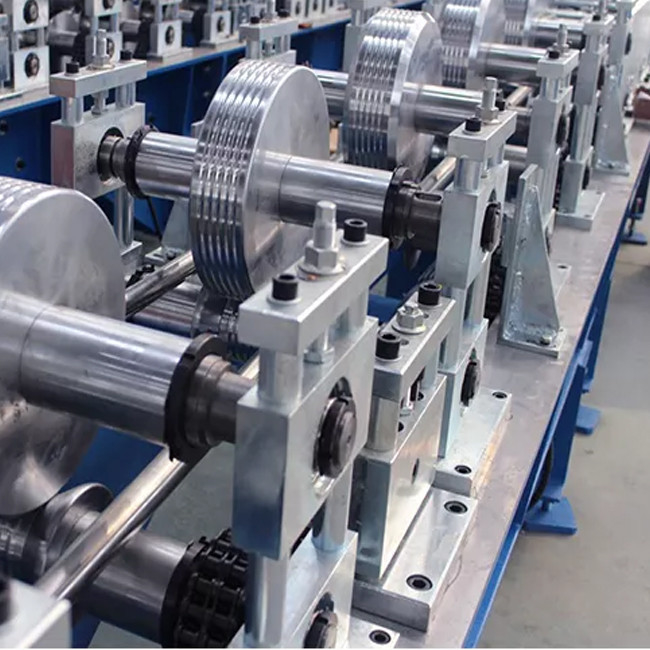

6	Roller Stations	20 stations
7	Roller Material	ASTM1045 chrome plated surface with chrome
8	Shaft Material and DIA	￠65mm, material:45# with quenching and tempering
9	Post cutting	Machine adopts hydraulic cutting system
10	Material Of Cutting	Cr12, 58-62 HRC hardness
11	Maim Motor Power	5.5kw
12	Hydraulic Station Power	5.5kw
13	Hydraulic pressure	12-16Mpa adjustable
14	Structure Of The Stations	Wall panel
15	Bending machine	With Main machine together
	Full Automatic Square Downspout Pipe Roll Forming Machine

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
