Name: Galvalume Computer Controlled Shutter Door Roll Forming Machine For U Guide Rail
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: نوار شاتر
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Galvalume Computer Controlled Shutter Door Roll Forming Machine For U Guide Rail

galvalume shutter door roll forming machine,50hz shutter door roll forming machine,computer controlled roller shutter slat machine

50hz shutter door roll forming machine

computer controlled roller shutter slat machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

نوار شاتر

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail

مواد خام:

گالوالوم، گالوانیزه، PPGI

سرعت کار:

8-12 متر در دقیقه

وضعیت:

جدید

ولتاژ:

380 ولت 50 هرتز یا سفارشی

رنگ:

طبق درخواست مشتری

سیستم کنترل:

PLC (مارک وارداتی)

برجسته کردن:

galvalume shutter door roll forming machine,50hz shutter door roll forming machine,computer controlled roller shutter slat machine

50hz shutter door roll forming machine

computer controlled roller shutter slat machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

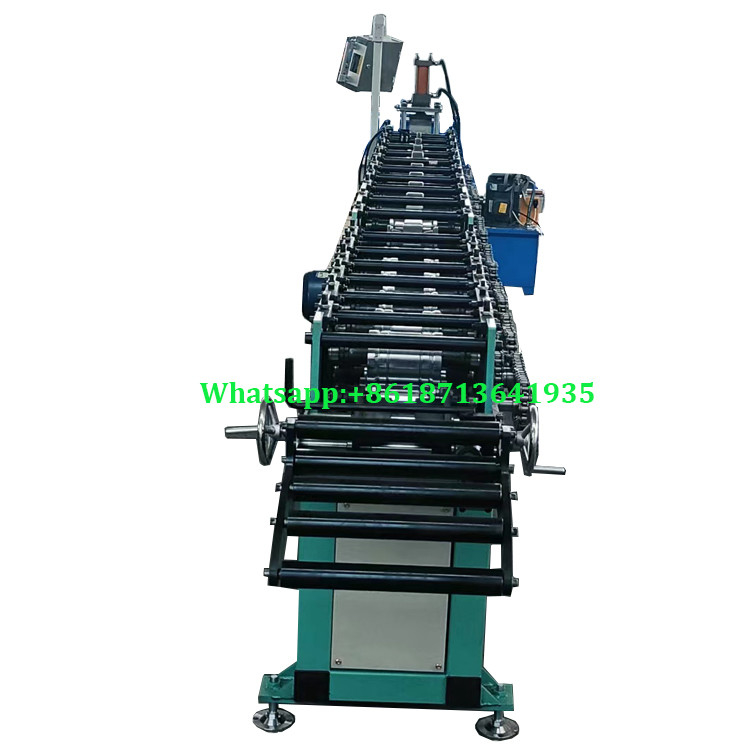

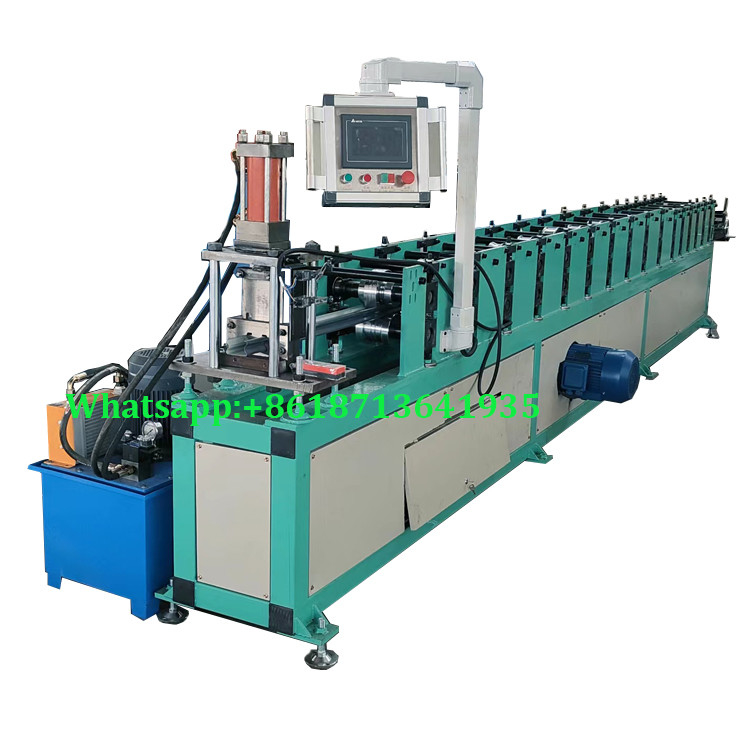

Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail

Shutter Door Roll Forming Machine

Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail.Shutter door is main made up of U guaid rail, shutter door salt and bottom guaid. As a very important part, siding U guaid rail need work with shutter door salt and bottom guide. The slidting U guide rail fix on the two side of shutter door, with it, the shutter door strips can move up and down easy, in this way, the shutter door can open and closed smoothly.

Shutter Door Roll Forming Machine Guide Rail Machine Working Flow

3.5T Decoiler -- Feeding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting -- Product Receiving Table

Specification

1	Row Material	Type	Colored steel plate, galvanized board,
		Feeding width	According to the profile
		Thickness	1-2mm
2	Main body	Roller station	12 steps
		Diameter of shaft	50mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	200mm H Steel
		Frame thickenss	14 mm
		Operation	Manual and Automatic
		Working speed	8-12 m/min
		Size (LWH)	About 1960013501610mm
		Weight	About 6.0 Tons
		Cutting type	Fly saw cutting
		Material of blade	Cr12
3	Power	Motor power	4 kw
		Hydraulic power	4 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
