Name: Double Layer Roll Forming Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

Double Layer Roll Forming Machine PLC Control

galvalume double roll forming machine,plc control double roll forming machine,plc control custom roll former

plc control double roll forming machine

plc control custom roll former

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دولایه رول فرمینگ ماشین PLC کنترل

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

کنترل PLC

استفاده کردن:

پانل سقف و دیواری

تایپ کنید:

خودکار

تیغ برنده:

cr12mov

ضخامت مناسب:

0.3-0.8mm یا به عنوان درخواست شما

سرعت تولید:

15-20 متر در دقیقه

برجسته کردن:

galvalume double roll forming machine,plc control double roll forming machine,plc control custom roll former

plc control double roll forming machine

plc control custom roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

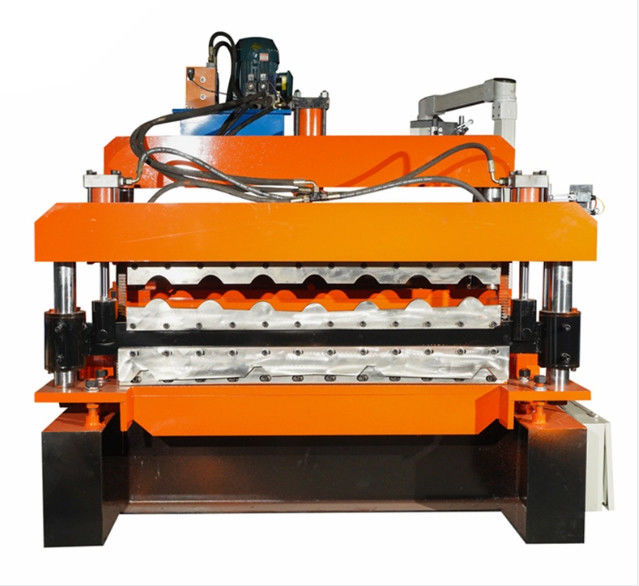

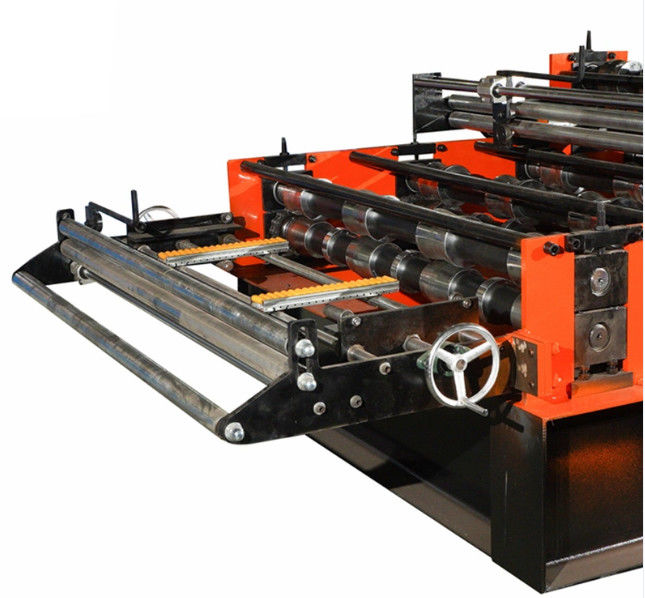

Double Layer Roll Forming Machine PLC Control

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.

Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

Specification

Name	Roofing Sheet And Wall Panel Double Layer Roll Forming Machine PLC Control
Raw Material	Material	Aluminium PPGI PPGL GI GL
	Width	914/925/1000/1200/1220/1250/1260mm
	Thickness	0.3-0.8mm, customized
Power Required	Power	380V 3Phase 50Hz, customized
	Main Motor	5.5KW, Lichao, Shanghai/Siemens Brand
	Cutting Motor	4.0KW, Lichao, Shanghai/Siemens Brand
Roll Forming Machine	Support Frame	350H steel, 10mm
	Forming Station	16/18/21 rows, exactly according to profile drawing
	Structure	16mm
	Shaft	45# high grade steel, 80mm, solid, with keyway
	Roller	45# high grade steel with heat treatment, hard chrome plated
	Chain	1.0inch
	Bearing	Standard
	Speed	12-18m/min
	Electric Components	Delta / Siemens / Mitsubishi
	Cutting Blade	Cr12Mov, quenched 58°-62°
	Operation	Touch Screen
	Dimension	9.51.61.5M
	Weight	8.0T

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
