Ibr Steel Roofing Sheet Double Layer Roll Forming Machine 1.5mm

ibr double layer roll forming machine,1.5mm double layer roll forming machine,plc control double layer forming machine

1.5mm double layer roll forming machine

plc control double layer forming machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

تولید کننده دستگاه رول فرمینگ ورق سقف فولادی دولایه Ibr

ایجاد سرعت:

6-15 متر در دقیقه

سیستم کنترل:

کنترل PLC

استفاده کردن:

پانل سقف و دیواری

تایپ کنید:

خودکار

رنگ ماشین:

سفارشی به عنوان نیاز مشتری

ماده غلتکی:

45# فولاد

ضخامت مواد:

0.3-1.5 میلی متر

برجسته کردن:

ibr double layer roll forming machine,1.5mm double layer roll forming machine,plc control double layer forming machine

1.5mm double layer roll forming machine

plc control double layer forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

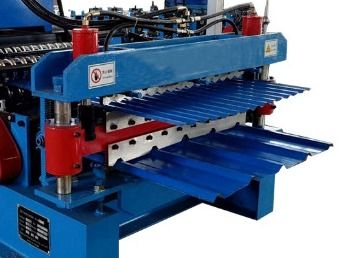

Double Layer Ibr Steel Roofing Sheet Roll Forming Machine Manufacturer

To save space and save money, some customer like to choose double layer roll forming machine, double layer roll forming machine popular sell in many countries, 2 shapes make in one machine, common it include:

1. Trapezoidal sheet and trapezoidal sheet double layer machine
2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine

Please noted that double layer machine only can work one layer one time, can not 2 layer work at same time,

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	Depend on customer' drawing
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6×1.5×1.3 m
	Machine weight	About 7.5 ton
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	7.5 kw
	Pump power	4 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
Decoiler	Weight capicatity	5 ton
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
