Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction

gl ibr roof machine,wall construction ibr roof machine,gl ibr roof sheet forming machine

wall construction ibr roof machine

gl ibr roof sheet forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول ورق فولادی Ibr برای ساخت دیوار سقف

ماده مناسب:

PPGI/PPGL/Gi/Gl

ولتاژ:

380 ولت 50Hz 3 مرحله

ابعاد (L*W*H):

5700mm*1300mm*1500mm

نکات کلیدی فروش:

بهره وری بالا

گارانتی قطعات اصلی:

1 سال

برش مواد تیغه:

رفع فرکانس Cr12

سیستم کنترل:

PLC (مارک وارداتی)

برجسته کردن:

gl ibr roof machine,wall construction ibr roof machine,gl ibr roof sheet forming machine

wall construction ibr roof machine

gl ibr roof sheet forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

بهترین قیمت رو بدست بیار

ویدئو

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

بهترین قیمت رو بدست بیار

ویدئو

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

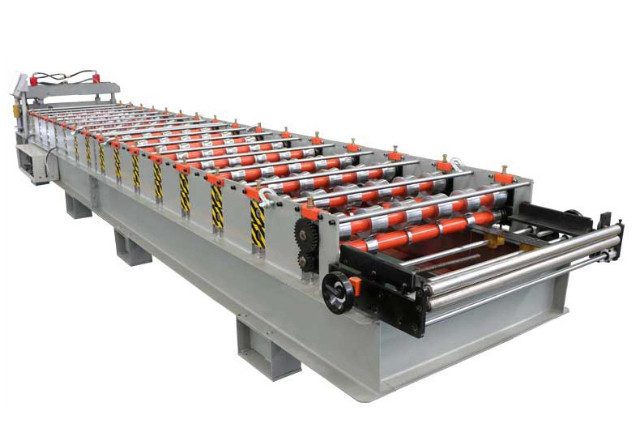

Ibr Metal Steel Sheet Roll Making Forming Machine For Roof Wall Construction

The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings,such as workshops, warehouses, gymnasiums, exhibition halls, theaters and other room surfaces and walls.

Features for roll forming machine

1. The tile formingmust use the high-number pulse input function, the high-number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure the accuracy.
2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.

Specification

Ibr Metal Steel Sheet Roll Making Forming Machine
1	Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2	Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free)
3	Main body	Roller station	16 rows(As your requirement)
		Diameter of shaft	80mm solid shaft
		Material of rollers	45# steel, hard chrome plated on the surface
		Machine body frame	350 H steel
		Drive	Chain transmission
		Dimension(LWH)	850016001600(customize)
		Weight	6.5T

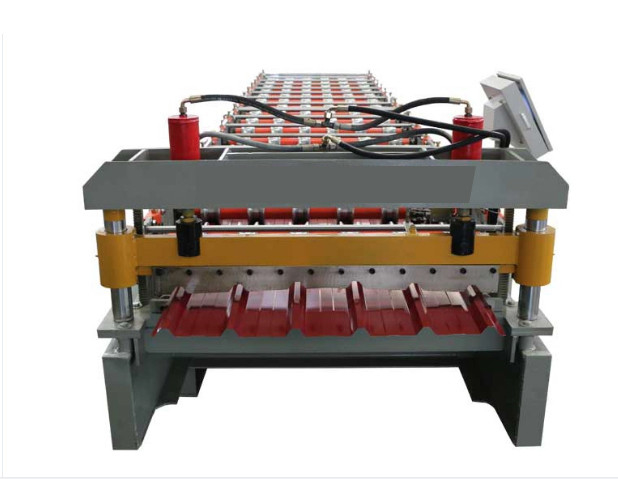

4	Cutter	Automatic	cr12mov material, no scratches, no deformation
5	Power	Motor Power	5.5KW
5	Power	Hydraulic system power	5.5KW
6	Voltage	380V 50Hz 3Phase	As your requirement
7	Control system	Electric Box	Customized(famous brand)
		Language	English(Support multiple languages)
		PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8	Forming Speed	15-20m/min	The speed depends on the shape of the tile and the thickness of the material.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
