Roofing 1.2mm Standing Seam Roll Former Machine For Nail Strip Snap Lock Panel

1.2mm standing seam roll former,three phase standing seam roll former,1.2mm standing seam former

three phase standing seam roll former

1.2mm standing seam former

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه تشکیل رول درز ایستاده سقف برای پانل قفل ضربه محکم و ناگهانی نوار ناخن

ظرفیت تولید:

10-15 متر در دقیقه

ضخامت نورد:

0.6-1.2 میلی متر

ابعاد (L*W*H):

7000*1300*1550 میلی متر

برش مواد تیغه:

Cr 12 فولاد درجه یک

قاب اصلی:

فولاد 400H

ولتاژ:

380 ولت 3 فاز 50 هرتز به عنوان درخواست شما

برجسته کردن:

1.2mm standing seam roll former,three phase standing seam roll former,1.2mm standing seam former

three phase standing seam roll former

1.2mm standing seam former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

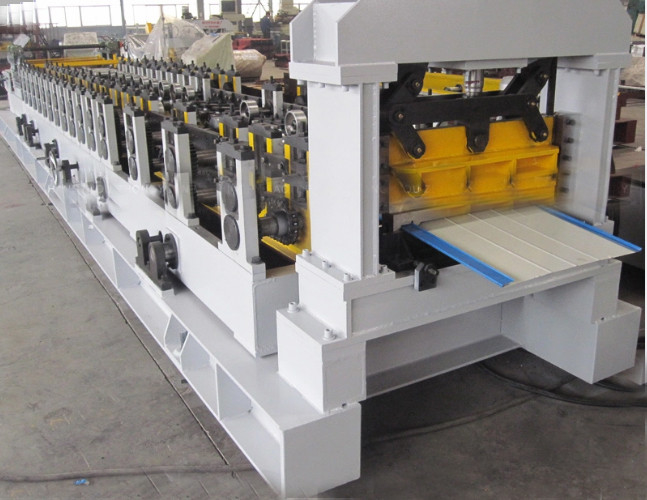

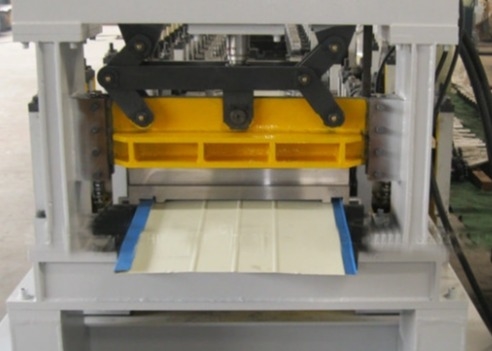

Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel

Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel,roofing sheet standing seam profile roll forming machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet,selflock roof machine.The standing seam roof sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

Specification

No.	Roofing Standing Seam Roll Forming Machine For Nail Strip Snap Lock Panel
1	Suitable to process	Color alu-zinc steel coil/Aluminium Coil
2	Roller	16Rows
3	Dimensions	7.01.31.55m
4	Motor Power	7.5Kw
5	Pump Station Motor	5.5Kw.
6	Thickness of the plate	0.6-1.2mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ90mm
10	Weight	About 4800kgs
11	Main structure of the machine	400H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	20mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
