IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity

building roof tile roll forming machine,ibr roof tile roll forming machine,7 ribs tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقف 900 با دهانه بلند 7 دنده با ظرفیت بالا

ضخامت سیم پیچ:

0.3-0.8mm

ابعاد (L*W*H):

7500X1500X1910mm

وزن:

6.5T

سرعت:

12 متر در دقیقه

ولتاژ:

380 ولت 3 فاز 50 هرتز

برجسته کردن:

building roof tile roll forming machine,ibr roof tile roll forming machine,7 ribs tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs.It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.
Because of price pressure of the material used to manufacture, this product is getting thinner and harder requiring these IBR Rollforming machines to be specially designed to produce and ensure a good quality finished product. It can also be noted that the machines are often required to run 915mm material as well or even 1225mm wide coil.

No.	High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as need
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	10-20m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm
7	Dimension	7500x1500x1910mm
8	Weight	About 7 T
9	Voltage	380V 3phase 50HZ or as the customer's requirements
10	Material of roller	High grade 45# forged steel plated with hard chrome plating
11	Material of cutting	Cr12 mould steel with quenched treatment
12	Working time	Can be 24 hours
13	Workers	1-2 only

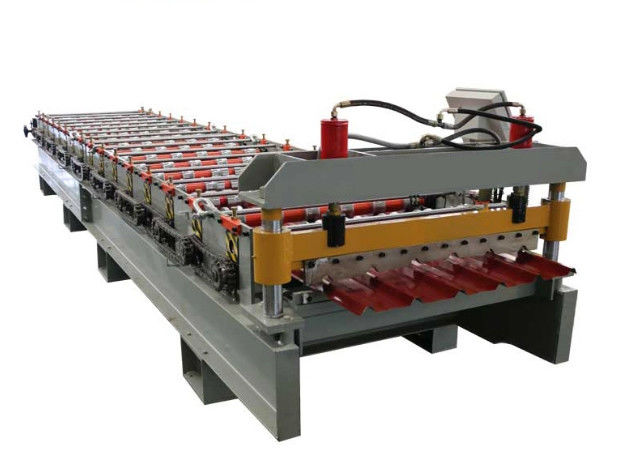

IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity 0
