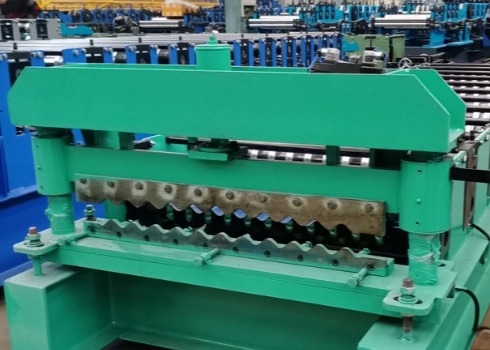

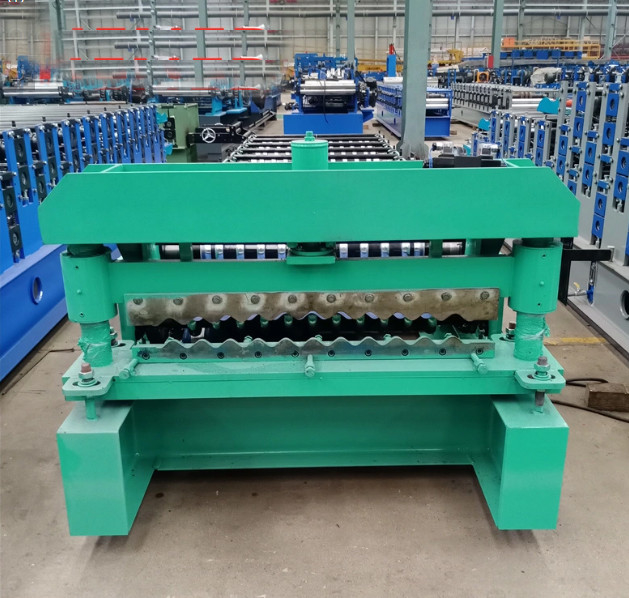

Roof Tile Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine
Roof Tile Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine.
They are used in various fields, such as workshop, warehouse, carport, wall board, portable house, Compared with traditional tiles, it has many advantages, such as light weight, high strength, heat insulation, easy installation, bright colors and waterproof.
We have professional foreign trade sales team, operation team, R & D team and after-sales team. Our R & D cycle for new products is at least 20 days. The working experience of our sales team is 3-5 years. The R & D personnel are all undergraduates. The average equipment maintenance experience of after-sales engineer is 8 years. In order to supply the satisfactory products and services, we have built a modern quality management system which is in strict accordance with international standards.
Specification
| Type |
China Color Steel Corrugated Steel Roll Forming Machine |
| Thickness Of Material |
0.3-0.8mm |
| Frame Design |
350H steel |
| Roll Stages |
14 stages |
| Material Of Forming Roller |
45# steel CNC Iathes Hard Chrome Coated |
| Shafts Diameter |
70mm |
| Thickness Of Middle plate |
16mm |
| Main Motor Power |
4KW |
| Speed |
13-15M/min |
| Electric Standard |
380V/50HZ/3PH or as your need |
| Color of Machine |
Blue or as your requirements |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
