Metal Tile Plc Control Roof Panel Forming Machine Low Noise

plc control roof panel forming machine,low noise roof panel forming machine,plc control metal roof forming machine

low noise roof panel forming machine

plc control metal roof forming machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه تشکیل دهنده کاشی سقف فلزی دستگاه پانل سقف کم صدا

ضخامت:

0.3-0.8mm

سیستم کنترل:

کنترل PLC

غلتک:

45# فولاد به عنوان نیاز مشتری

وزن ماشین:

خودکار

موتور:

5.5 کیلووات

ماده غلتکی:

45# فولاد

تیغ برنده:

Cr12 Mov

برجسته کردن:

plc control roof panel forming machine,low noise roof panel forming machine,plc control metal roof forming machine

low noise roof panel forming machine

plc control metal roof forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

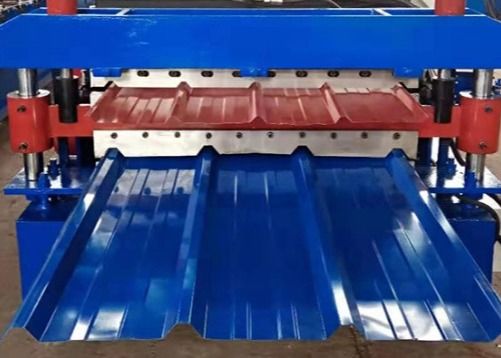

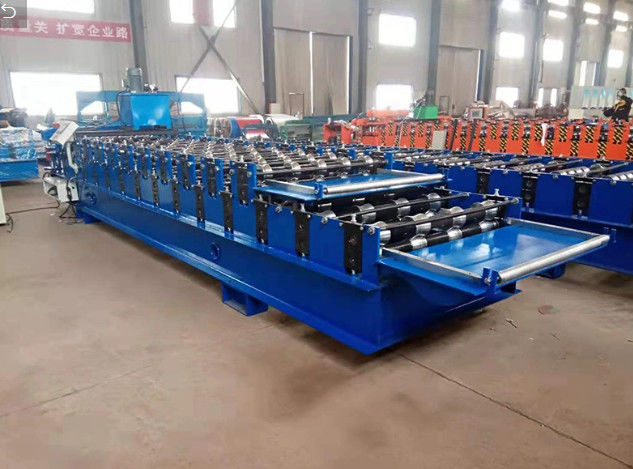

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine,The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can't produce the 2 profiles at the same time.

Specification

Coil required	Material	PPGI GI AL
	Width	914/925/1000/1200/1220/1250mm
	Thickness	0.3-0.7mm , as custom order
Power required	Power	380V 50Hz 3 Phase , as custom order
	Main Motor	5.5KW Siemens Brand
	Cutting Motor	4KW Siemens
Machine	Support Frame	400 H Steel 10mm
	Forming Station	14 rows as profile
	Structure	18-20mm
	Shaft	75mm
	Roller	45# Steel with heat treatment
	Chains	1.2 inch
	Bearings	Standard as custom order
	Speed	15-30m/min
	Electric Components	Delta and Siemens
	Size	7.51.31.6M
	Weight	4T

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
