Lock Seam Door 0.48mm Metal Roll Former No Nails Self Locking

lock seam metal roll former,0.48mm metal roll former,self locking metal roll forming machine

0.48mm metal roll former

self locking metal roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

قفل درز فلزی رول رول بدون میخ خود قفل دستگاه رول فرمینگ

ظرفیت تولید:

8-15 متر در دقیقه

سیستم کنترل:

کنترل PLC

ولتاژ:

380 ولت 50Hz 3Phases

ماده غلتکی:

فولاد قالب Cr 12 با درمان خاموش

ضخامت مواد اولیه:

0.42-0.48 میلی متر

ابعاد (L*W*H)::

5-12 متر * 1.3 متر * 1.3 متر

مواد صفحه برش:

CR12

دستگاه برش:

برش هیدرولیکی

برجسته کردن:

lock seam metal roll former,0.48mm metal roll former,self locking metal roll forming machine

0.48mm metal roll former

self locking metal roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

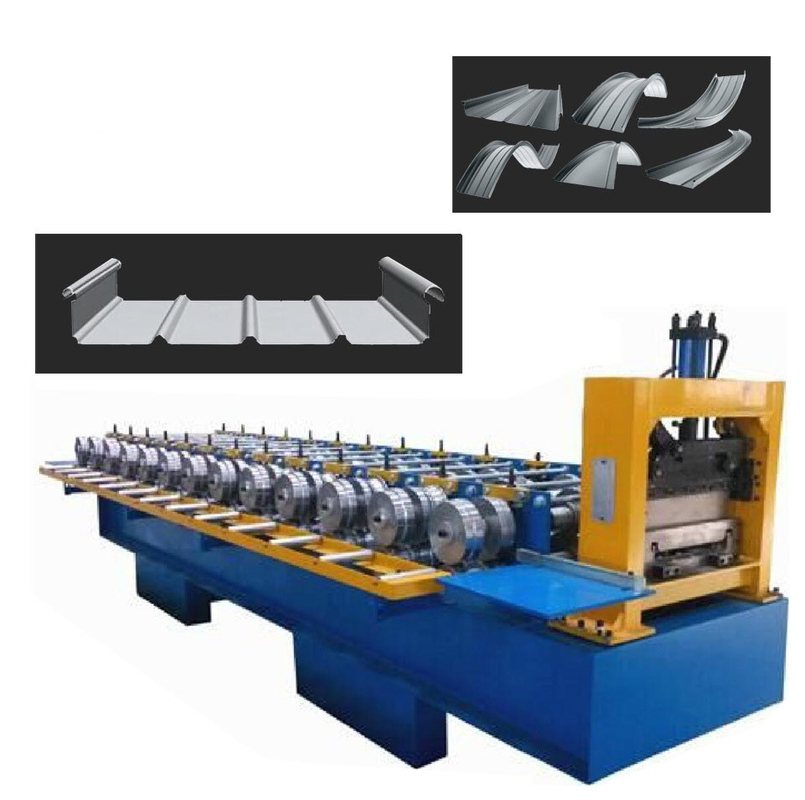

Lock Seam Metal Door Roll Former No Nails Self Locking Roll Forming Machine

FMS roll forming machinery CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1995. We are ready to provide quality products and excellent service to our customers with our company motto "Quality first and nothing but credit".

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site

Equipment Detailed Parameters:

Article No.	Item Name	Specification

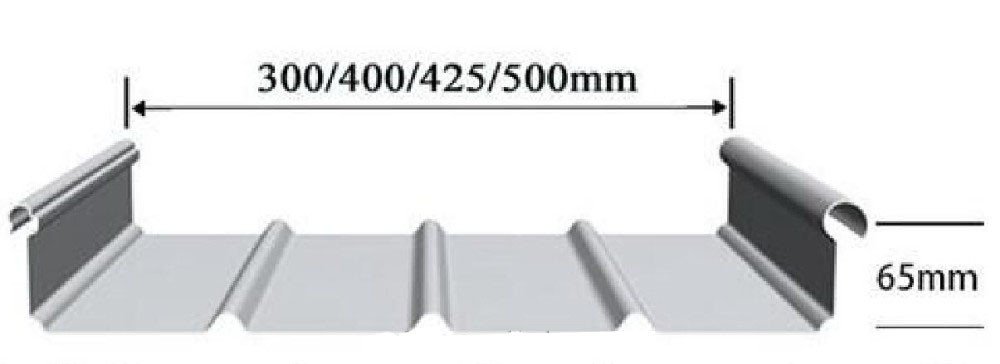

1	Effective width	300/400/425/500 mm coil sheet
2	Thickness of feeding material	0.42-0.48 mm coil sheet
3	Roller station	10-15 stations
4	Shaft Diameter	55-75mm
5	Productivity	8-12m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	2.5-8 ton
9	length	5.5 m-11m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	8 Tons
13	Motor	3kw-7.5 kw
14	Driving way	Chain transmission
15	Chain size	0.6 inch-2 inch
16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
