Metal Panel Roofing Sheet Rollformers 0.3mm Hydraulic Cutting

hydraulic cutting rollformers,roofing sheets manufacturing rollformers,0.3mm roofing sheets manufacturing machine

roofing sheets manufacturing rollformers

0.3mm roofing sheets manufacturing machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

Metal Panel Roofing Sheet Rollformers 0.3mm Hydraulic Cutting

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ کره RO-D250 برای ورق بام پانل سقف فلزی

ضخامت نورد:

8-15 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

وزن:

6500 کیلوگرم

عرض تغذیه:

1250 میلی متر

نام محصول:

دستگاه شکل دهی سقف C21

ابعاد (L*W*H):

6500*1300*1300 میلی متر

ضخامت مواد اولیه:

0.3-0.8 میلی متر

برجسته کردن:

hydraulic cutting rollformers,roofing sheets manufacturing rollformers,0.3mm roofing sheets manufacturing machine

roofing sheets manufacturing rollformers

0.3mm roofing sheets manufacturing machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

بهترین قیمت رو بدست بیار

ویدئو

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

بهترین قیمت رو بدست بیار

ویدئو

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

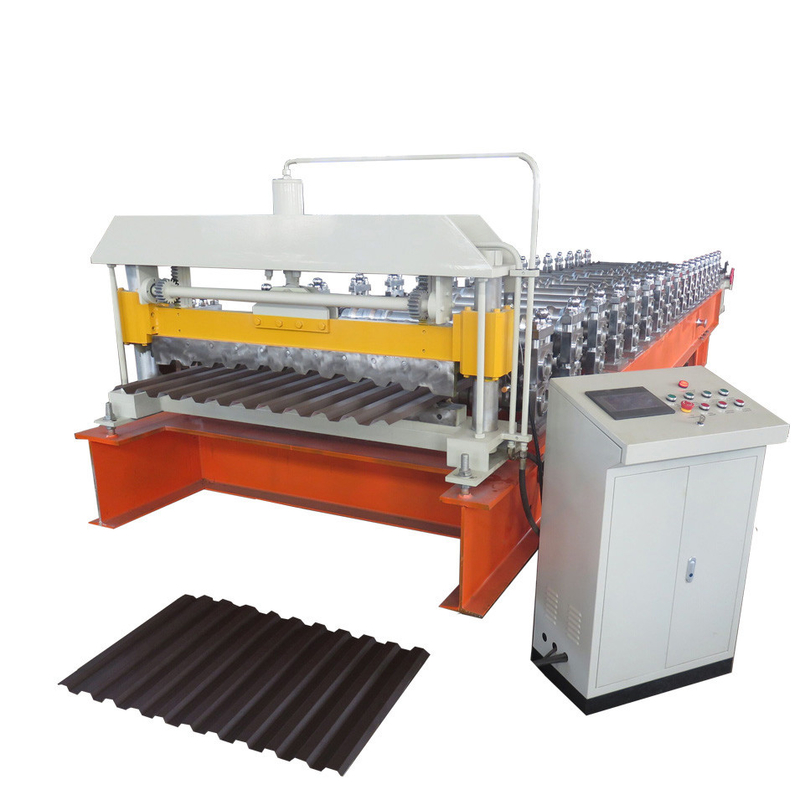

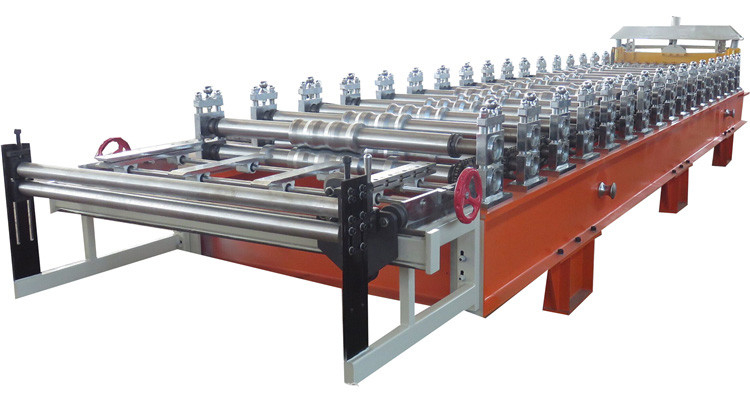

KOREA RO-D250 Roll Forming Machine For Metal Roof Panel Roofing Sheet

KOREA RO-D250 Roll Forming Machine For Metal Roof Panel Roofing Sheet are designed for high volume producers in the steel metal building industry,well build to your specific panel design from 20 to 30 gauge. Our lines are built to be flexible ,high speed and robust for tough production environments.Now this kind of machine have been exported to many countries, the most important is that ur need can be customized.

The main width of feeding coil material including: 914mm,1000,1219mm,1220mm and 1250mm. Then the effective width of roof tile is different.

Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine

Specification

Part details	Item Name	Specification
Manual uncoiler	carrying capacity	5 tons
Manual uncoiler	Stype	Manual
Raw coil	Coil material	steel
Raw coil	Coil thickness	0.3-0.8 mm
Machine body	Roller station	15-20 station
	Roller material	45# steel
	Shaft material	45# steel
	Shaft diameter	75 mm
	Machine weight	About 6.5 tons
	Machine size	6.51.51.5 m
	Speed	8-12 m/min
Cutter	Operate	Hydraulic cutting
Cutter	Blade material	Cr12
Power	Operate	Chain transmission
Power	Chain size	1 inch chain
Control system	PLC brand	Delta made in Taiwan
	Motor power	7.5 kw
	Hydraulic pump power	4 kw
	Voltage	380V 50Hz 3phase
	Machine color	As ur need
	Machine language	Chinese and English

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
