Ic72 1.5mm Metal Sheet Roof Roll Forming Machine Panel Trapezoidal Low Noise

trapezoidal metal sheet roof roll forming machine,1.5mm metal sheet roof roll forming machine,trapezoidal roof panel roll forming machine

1.5mm metal sheet roof roll forming machine

trapezoidal roof panel roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

Ic72 1.5mm Metal Sheet Roof Roll Forming Machine Panel Trapezoidal Low Noise

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقف ورق ذوزنقه ای پانل IC72 با صدای کم

ظرفیت تولید:

15 متر/دقیقه

ولتاژ:

3 فاز 380 ولت 50 هرتز (سفارشی)

وزن:

6 تن

نکات کلیدی فروش:

بهره وری بالا

ماده شفت:

45# قطر بیرونی فولاد: 75 میلی متر

ضخامت مواد اولیه:

0.3-1.5 میلی متر

سیستم کنترل:

PLC

برجسته کردن:

trapezoidal metal sheet roof roll forming machine,1.5mm metal sheet roof roll forming machine,trapezoidal roof panel roll forming machine

1.5mm metal sheet roof roll forming machine

trapezoidal roof panel roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

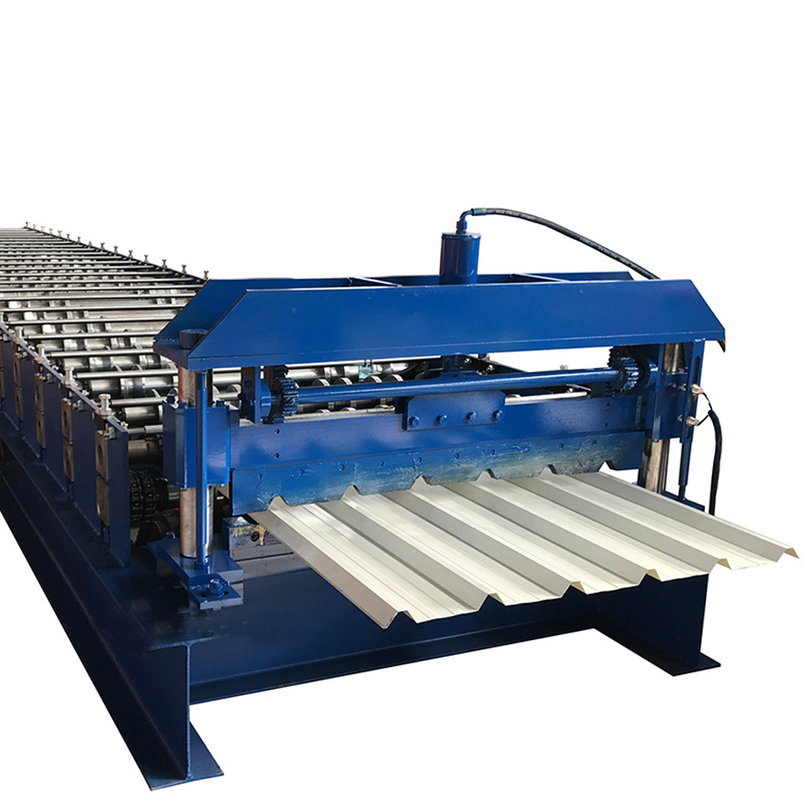

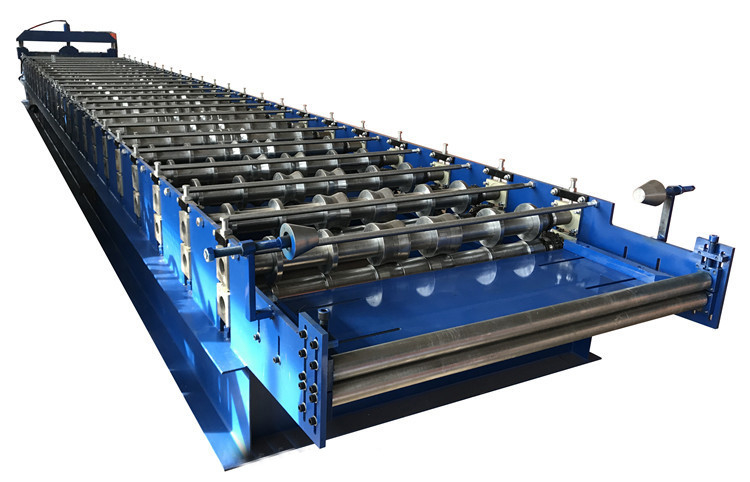

IC72-Panel Trapezoidal Sheet Metal Roof Roll Forming Machine Low Noise

We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 20 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China.

trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 840/1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Specification

Article No.	Item Name	Specification
1	Effective width	1000 mm
2	Thickness of panel	0.3-0.8 mm coil sheet
3	Roller station	23 stations
4	Shaft Diameter	75 mm
5	Productivity	8-15 m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	6.5 tons
9	length	7 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	5 tons
13	Motor	5.5 kw
14	Driving way	Chain transmission
15	Chain size	0.6-2 inch
16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
