Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick

0.8mm thick panel roll forming machine,palisade fence panel roll forming machine,decorative fence roll forming machine

palisade fence panel roll forming machine

decorative fence roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

قاب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی پانل حصار تزئینی Palisade اتوماتیک

ظرفیت تولید:

0-15 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز یا طبق درخواست

وزن:

2000 کیلوگرم

ضخامت نورد:

0.3-0.8mm

ماده غلتکی:

فولاد 45# با کروم 0.05mm

سیستم کنترل:

زیمنس / دلتا پی ال سی

برجسته کردن:

0.8mm thick panel roll forming machine,palisade fence panel roll forming machine,decorative fence roll forming machine

palisade fence panel roll forming machine

decorative fence roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

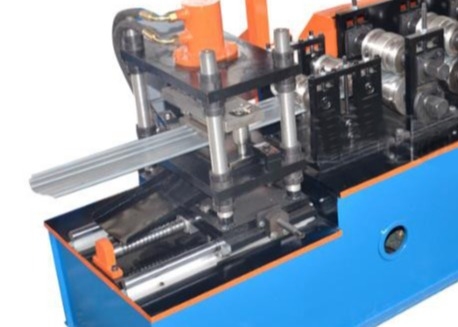

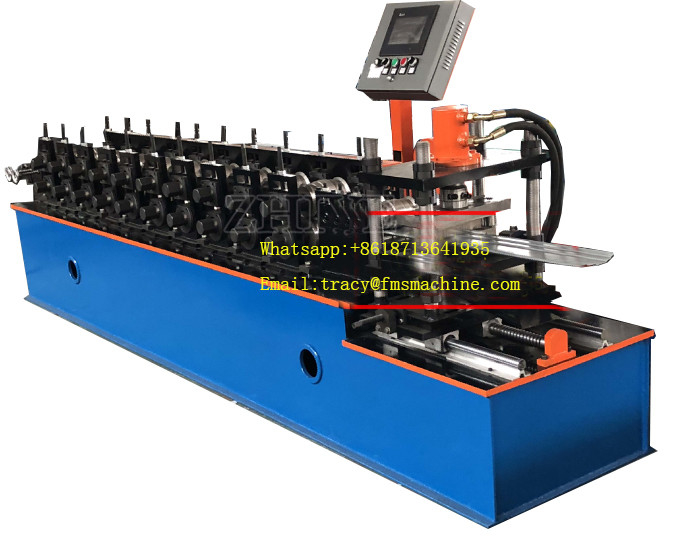

Palisade Decorative Fence Panel Roll Forming Machine Automatic

Cangzhou Famous Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.

Palisade Decorative Fence Panel Roll Forming Machine Automatic,Our Fence Roll Forming Machine for different models based on different designs or customer's samples .The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.

Specification

No.	Item	Characteristic
1.	Processing Material	PPGI,GI
2.	Processing Thickness(mm)	0.6-1.6mm
3.	Main Frame/Middle plate	H400 Steel Beam/ 20mm Steel plate
4.	Material of Rollers	45# steel, with hard chrome coated
5.	Diameter of Shaft	100mm
6.	Number of Rollers	26 stand rollers
7.	Production Speed	0-14m/min
8.	Roller Driven	Decelerating Motor+20A Chain Transmission
9.	Cutting Model	Hydraulic Profile Cutting
10.	Length Measurement	Encoder
11.	Control Style	PLC
12.	Operation Model	Button + Touch Screen
13.	Total Power	27.5kw
14.	Voltage	380V 50HZ or at buyer's request
15.	Testing Material	Q195

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
