Name: High Speed Metal Stud Omega Roll Forming Machine Ppgi
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: امگا
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

High Speed Metal Stud Omega Roll Forming Machine Ppgi

ppgi omega roll forming machine,plc omega roll forming machine,high speed plc roll forming machine

plc omega roll forming machine

high speed plc roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

امگا

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه فرمینگ رول امگا دستگاه فرمینگ رول گل میخ فلزی با سرعت بالا

مواد خام:

PL، GL، PPGL، PPGI

ولتاژ:

380V/50HZ3Phase (به درخواست مشتری)

ثابت کننده غلتک:

ستون راهنما

قاب:

صفحه وسط جوش داده شده

ضخامت قاب:

25 میلی متر

حالت محرک:

دنده

مواد غلتک:

GCr12mov

برجسته کردن:

ppgi omega roll forming machine,plc omega roll forming machine,high speed plc roll forming machine

plc omega roll forming machine

high speed plc roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

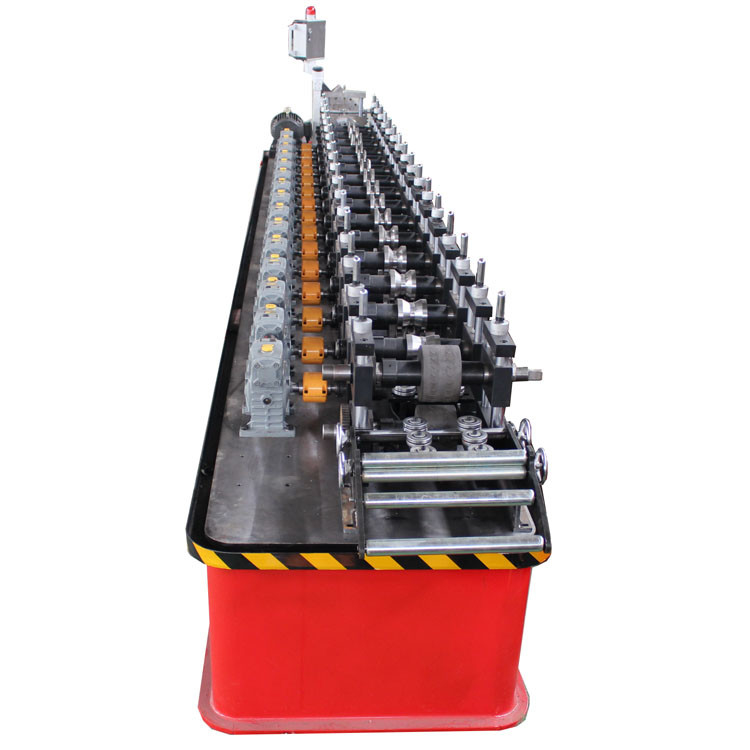

Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine

Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine, in ceiling and drywall making. Omega channel is the weight bearing channel, so normally we will design with dotting. This device uses a high level of color steel automatic control software, production information management. The entire unit automation control system uses a highly integrated network, automation systems and better performance.Omega roll forming machine cutter portion is driven by a hydraulic cylinder to move up and down the tool, you can put steel cut off. Corrugated steel sheet Roll forming machine production process is as follows: steel roller into the molded part after molding to-pressure part, pressed into an equidistant one, the cutter is responsible for cutting to length.

Specification

No.	Item	Description
1	Core Components	Motor, Engine, PLC
2	Shaft material	45#steel hardening and tempering
3	Cutting Mode	Hydraulic Cutting
4	Material of shafts	40Cr steel with tempering
5	Cutting length tolerance	±1mm
6	Diameter of shafts	φ40mm
7	Number of rollers for omega	11 rollers
8	Main power	3kw
9	Power Supply	380V, 50HZ, 3 PHASES
10	Cutting Accuracy	±2 mm
11	Driving Mode	Single Chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
