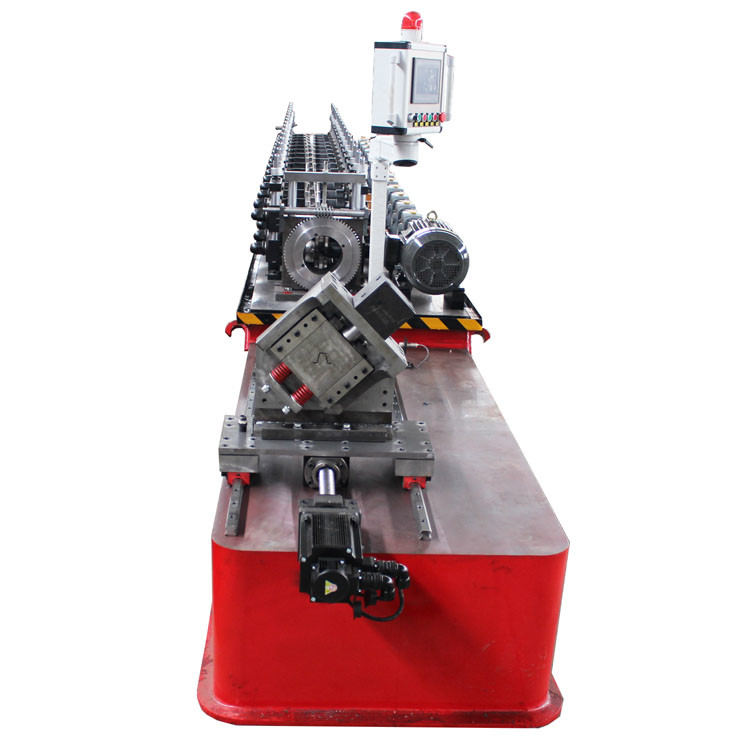

Name: Omega Sheet PPGL Metal Roll Forming Machine Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: امگا
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Omega Sheet PPGL Metal Roll Forming Machine Automatic

omega sheet metal roll forming machine,ppgl metal roll forming machine,automatic plc roll forming machine

ppgl metal roll forming machine

automatic plc roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

امگا

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین خط شکل دهنده رول ورق فلز امگا اتوماتیک برای ترکیه

مواد خام:

PL، GL، PPGL، PPGI

ولتاژ:

380V/50HZ3Phase (به درخواست مشتری)

ضخامت:

0.3-0.6 میلی متر

سرعت کار:

10-30 متر در دقیقه

ماده غلتکی:

فولاد Cr 12 Mov

حالت محرک:

دنده

مواد:

کر 12

برجسته کردن:

omega sheet metal roll forming machine,ppgl metal roll forming machine,automatic plc roll forming machine

ppgl metal roll forming machine

automatic plc roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Omega Sheet Metal Roll Forming Line Machine Automatic For TURKEY

Omega Sheet Metal Roll Forming Line Machine Automatic For TURKEY,Description of Omega hat roll forming machine ceiling used omega roll forming machine is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework. Working Process The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. ...

Specification

NO	Type		Specification
1	Raw material	Type	GI

		Thickness	0.3-0.6 mm
2	Decoiler	Operation	Manual
2	Decoiler	Weight apacity	5 Tons
3	Main body	Roller station	9 row
		Diameter of shaft	55 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	Cr 12 Mov steel
		Type	Chinese type
		Frame	300mm C-beam
		Frame thickness	16 mm
		Material	Cr 12
		Operation	Hydraulic automatic
		Working speed	10-30 m/min
4	Power	Driving way	1 inch chain
		Main motor	5.5 KW
		Voltage	380V/50HZ, 3 phase
5	Control box	Electric box	PLC control system, inventer
5	Control box	Language	Chinese and English

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
