Drywall Profile Light Gauge Steel Machine Hydraulic Cutting

drywall profile light gauge steel machine,hydraulic cutting light gauge steel machine,hydraulic cutting drywall roll forming machine

hydraulic cutting light gauge steel machine

hydraulic cutting drywall roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

پروفیل Drywall Stud Track Roll Forming Machines Light Gauge Steel Machines

ماده شفت:

45# فولاد

موتور:

4 کیلو وات

نوع برش:

برش هیدرولیکی

مشخصات:

8*1.5*1.3 متر

سرعت:

0-25 متر در دقیقه

ماده غلتکی:

CR12

برجسته کردن:

drywall profile light gauge steel machine,hydraulic cutting light gauge steel machine,hydraulic cutting drywall roll forming machine

hydraulic cutting light gauge steel machine

hydraulic cutting drywall roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

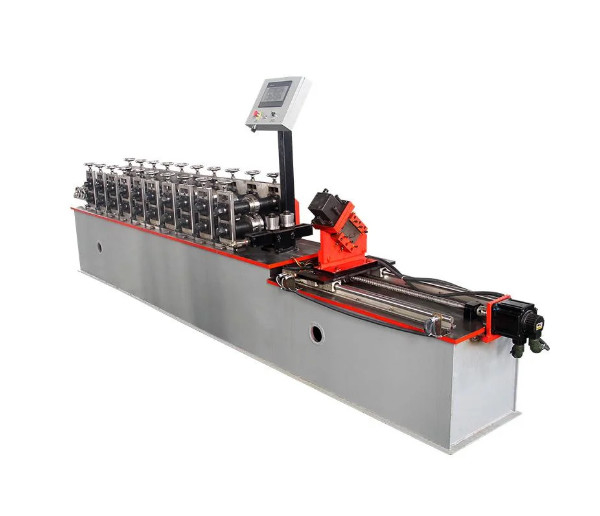

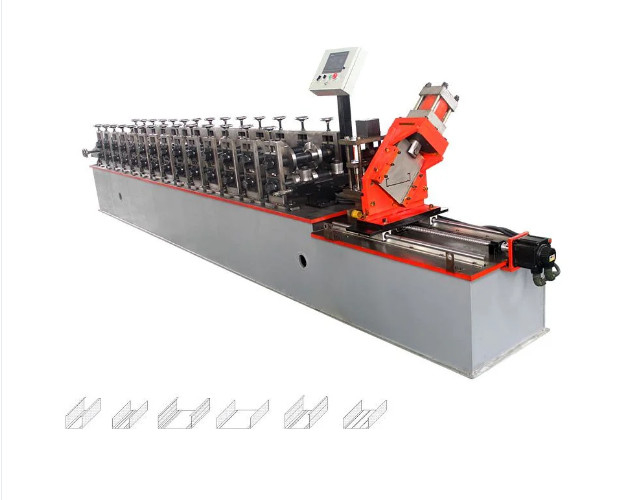

Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine

Drywall Profile Stud Track Roll Forming Machines Light Gauge Steel Machine.This machine has 12 forming steps,and the roller's material is CR12 with quenching,the shaft material is 45# Steel,and the diameter is 40mm.
The transmission of this machine is gear transmission and it will control by PLC.

The cutting system is hydraulic tracking cutting system,it is non-stop cutting,so that it can save the cutting time,and improve the production speed.
The cutter material is CR12 MOV,the hardness of this material is higher and it is suitable for use as the cutter mold.
There is one oil pump connect the cutter,it will provide the power for the cutter.

This machine control by PLC,it can automatically measure the length of the product and the quantity of production, the operation is simple, workers only need to input the length and quantity of production, the machine can work automatically.

Specification

Main Forming machine	Forming steps	12steps
	Shaft diameter	40mm
	Machine stand	Individual Arch Plate
	Machine frame	steel plate welded
	roller material	Cr12
	shaft material	45# steel with quenching and tempering
	Work speed	0-25m/min
	Transport	By gear
	Power of main machine	4kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	201.51.2m
	Machine weight	About 3.5T
	Machine color	Yellow and blue(as required)
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
