Fixed Type 0.4mm Roof Panel Roll Forming Machine Seam Lok Plc Controlled

fixed roof panel roll forming machine,0.4mm roof panel roll forming machine,roof panel plc roll forming machine

0.4mm roof panel roll forming machine

roof panel plc roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ویتنام نوع ثابت سقف پانل رول فرمینگ ماشین درز-Lok PLC-کنترل شده

ماده شفت:

45# فولاد

ضخامت دیوار کناری:

18 میلی متر

نوع برش:

برش هیدرولیکی

خروجی:

حدود 12-15 متر در دقیقه

شفت:

75 میلی متر

مواد برش:

Cr12MOV، عملیات حرارتی

برجسته کردن:

fixed roof panel roll forming machine,0.4mm roof panel roll forming machine,roof panel plc roll forming machine

0.4mm roof panel roll forming machine

roof panel plc roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

بهترین قیمت رو بدست بیار

ویدئو

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

بهترین قیمت رو بدست بیار

ویدئو

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Vietnam Fixed Type Roof Panel Roll Forming Machine Seam-Lok PLC-Controlled

Vietnam Fixed Type Roof Panel Roll Forming Machine Seam-Lok PLC-Controlled.One of machines that creates Concealed Fastener Roofs which are aesthetically pleasing and are popular in residential and commercial applications. Rollers and shearing die-set are especially designed to create these great Screwless Roofing Roll Forming Machine. There are a wide range of Standing Seam Panel Roll Forming Machine we have made, two common types are Mechanical Seam Panels (including crimping tools) and Locking Seam Panels (Snap Lock – the seams are locked by a simple snapping of the panels together). Special crimping tools: Electric Seamer (can run forward and reverse – Backward running, or retro running), Hand Crimper

Specification

Application
	Standing seam roof is an economical, snap-together roofing system, for commercial and residential applications. Standing seam roof roll forming machine is special designed for its production.
	Technical Parameters
	1		Suitable Material	PPGI Steel Coil / Galvalume Steel Coil / Aluminium Coil / Galvanized Steel Coil
	2		Material Width	According to Profile Drawing
	3		Material Thickness	0.4-0.8 mm PPGI Steel Coil / 0.7-1.2 mm Aluminium Coil
	4		Roll forming speed	10-20 m/min (Exclude Cutting Time)
Equipment List
1		Hydraulic Decoiler with Breaking device is equipped for coil processing			1 set
2		Rollformer with tooling			1 set
3		Hydraulic cut-off machine			1 set
4		Siemens Or Mitsubishi PLC and Touchable Screen are used for data processing and setting			1 set
5		Automatic Seamer			1 set

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

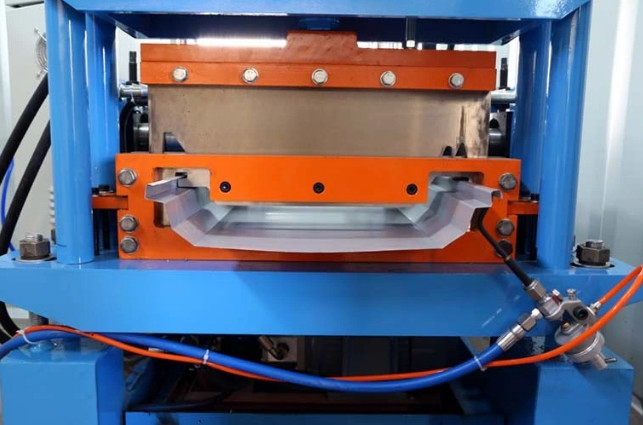

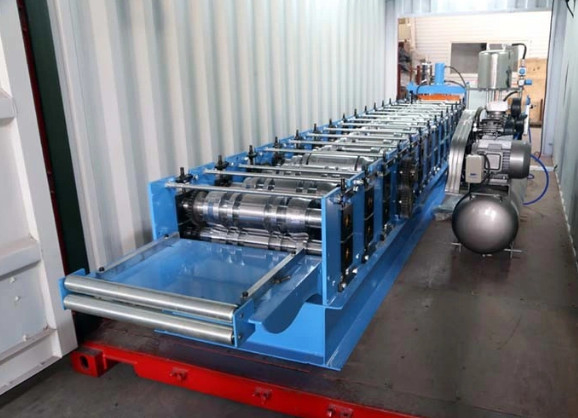

Fixed Type 0.4mm Roof Panel Roll Forming Machine Seam Lok Plc Controlled 0
