Rib Type Ibr Roof Tile Roll Forming Machine 3 Phase

3phase roof tile roll forming machine,ibr roof tile roll forming machine,rib type roof tile forming machine

ibr roof tile roll forming machine

rib type roof tile forming machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

فیلیپین نوع دنده ماشین IBR سقف کاشی ورق رول ماشین

روش:

فشار هیدرولیکی

محدوده ضخامت:

0.3-0.8mm

سرعت کار:

10-15 متر در دقیقه

وزن ماشین:

حدود 5 تن

ماده غلتکی:

380 ولت 3 فاز 50 هرتز

مشخصات:

6300mm*1500mm*1500mm(L*W*H)

سفارشی:

سفارشی

برجسته کردن:

3phase roof tile roll forming machine,ibr roof tile roll forming machine,rib type roof tile forming machine

ibr roof tile roll forming machine

rib type roof tile forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine

Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine.It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 925mm, thickness range is from 0.25mm to 0.8mm. We adopt 16mm thick wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

Specification

Philippines Rib Type Machine IBR Roof Tile Sheet Roll Forming Machine
Main motor power	5.5kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	18 groups
Raw material	0.3-0.8mm
Coil width	925mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 5 ton
Size of machine	About 8500×1200×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

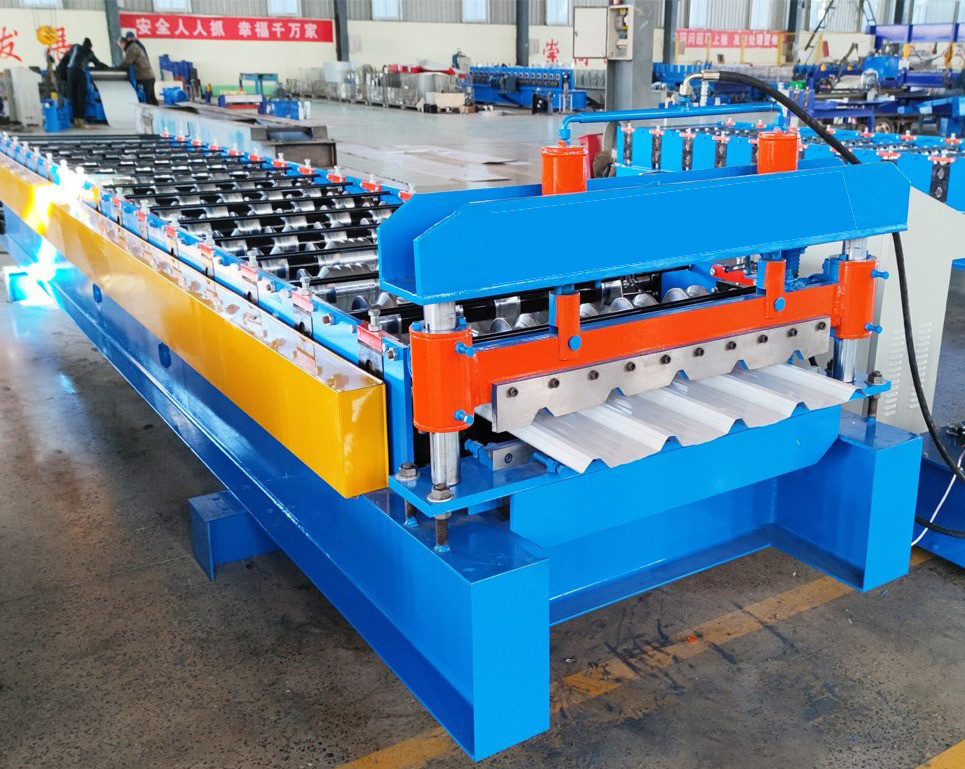

Rib Type Ibr Roof Tile Roll Forming Machine 3 Phase 0
