W Purlin 3.5mm Highway Guardrail Roll Forming Machine Saw Cutting

3.5mm highway guardrail roll forming machine,w highway guardrail roll forming machine,w purlin guardrail roll forming machine

w highway guardrail roll forming machine

w purlin guardrail roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

W Purlin Guardrail Roll Forming Machine Machine Roll Forming Guardrail Highway Guardrail Roll Formin

ضخامت:

2.5-3.5 میلی متر

سرعت ماشین:

10-15 متر / دقیقه

ایستگاه های رول:

20 ایستگاه رول (با 6 عدد غلتک برای تسطیح D

ولتاژ:

380V.50HZ.3فاز

قطر شافت:

110 میلی متر

نوع برش:

برش هیدرولیکی

قدرت برش:

15.5 کیلووات (فشار: 25 مگا پاسکال) 3 عدد برش

ضخامت چاشنی:

22 میلی متر

ماده شفت:

فورج 45# فولاد

برجسته کردن:

3.5mm highway guardrail roll forming machine,w highway guardrail roll forming machine,w purlin guardrail roll forming machine

w highway guardrail roll forming machine

w purlin guardrail roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

50 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

بهترین قیمت رو بدست بیار

ویدئو

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

بهترین قیمت رو بدست بیار

ویدئو

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

بهترین قیمت رو بدست بیار

ویدئو

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

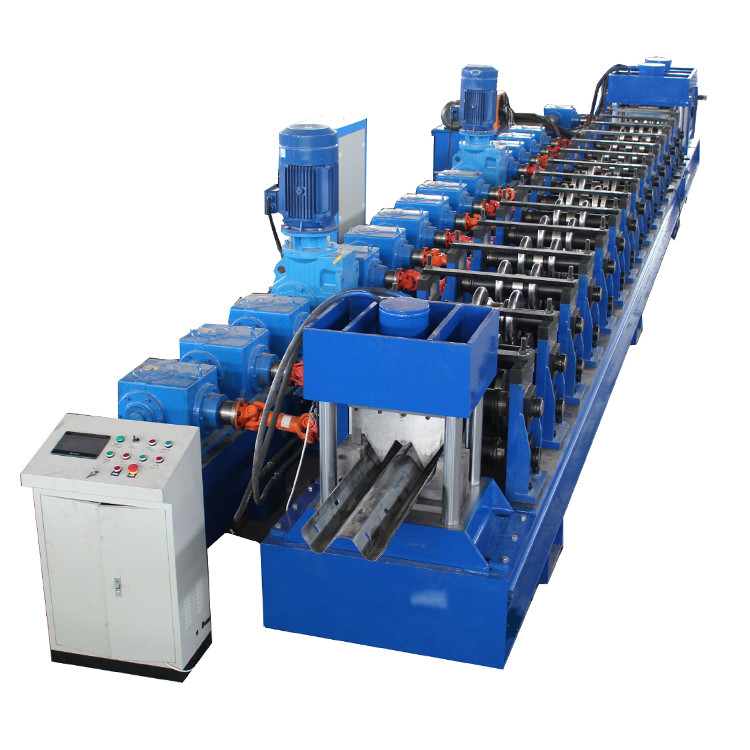

W Purlin Guardrail Roll Forming Machine Highway Guardrail Roll Forming Machine

W Purlin Guardrail Roll Forming Machine Highway Guardrail Roll Forming Machine.

Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Specification

Item		Specification
1.Information of raw material	Suitable material:	Galvanized coil
	Width:	748mm
	Thickness:	2.5-3.5mm
	Yield strength:	Q235A HR
2.Production specification	Detailed as the file
3.Power requirement:	Main power:	22kw two sets
	Cutter power:	15.5kw(pressure:25mpa) 3 pcs cutter
	Speed of machine:	10-15meters/min
4.Hydraulic de-coiler:	Loading:	5tons
	Inner diameter	508mm
	Type:	Automatic type
5.Machine specification:	Structure:	400I beam
	Roll stations:	20 roll stations (with 6pcs rollers for leveling diameter:80mm)
	Splint thickness:	22mm
	Diameter of shaft:	110mm,
	Material of shaft:	Forged 45# steel
	Type of cutting:	Saw cutting
	Material of roller:	CR12 with heat treatment: HRC58-62
	Sizes of machine:	15.51.01.5meters
	Material of punching mold:	Cr12,hydraulic pre-punching
	Sizes of chain:	2.0inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
