Name: 8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure

8 rib roof tiles making machine,18 sections roof tiles making machine,simple roof tile roll forming machine

18 sections roof tiles making machine

simple roof tile roll forming machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین ساخت کاشی سقف 8 Ribtype با ساختار ساده 18 ایستگاه

ظرفیت تولید:

10-15 متر در دقیقه

نکات کلیدی فروش:

طول عمر طولانی

سرعت کار:

10-15 متر در دقیقه

وزن ماشین:

5000 کیلوگرم

ماده غلتکی:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

ایجاد سرعت:

10-20 متر در دقیقه

برجسته کردن:

8 rib roof tiles making machine,18 sections roof tiles making machine,simple roof tile roll forming machine

18 sections roof tiles making machine

simple roof tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

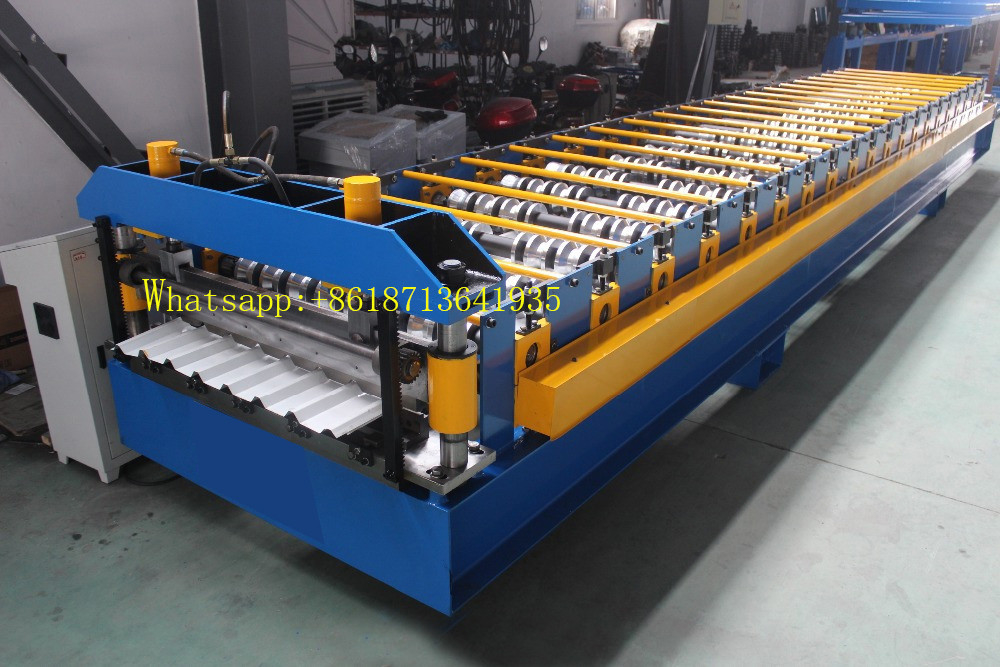

8 Ribtype Roof Tiles Making Machine With 18 Stations Simple Structure

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings.

Specification

Description	Explaination
Working speed	10-20 m/min(Shear time is not included)
Pressed plate thickness	0．3-0．8mm
Control mode	Siemens PLC
Discharging rack	5T electric discharging rack
Number of molding passes	22 lanes
Roll material	After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter 轴材质及轴径	45# Steel finishing,Shaft diameter is￠70mm
Main engine power	7.5kw
Power of hydraulic station	3kw
Hydraulic pressure	12Mpa
Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode	1.0 inch single row chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

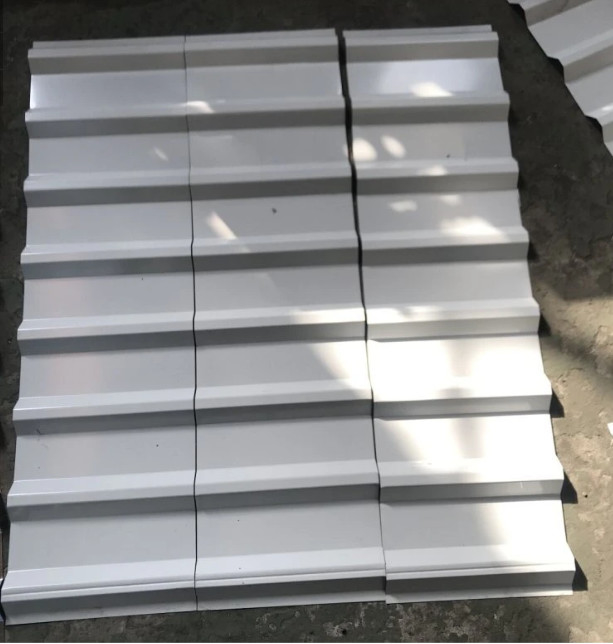

8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure 0
