Name: 5t Hydraulic Uncoiler Cable Tray Roll Forming Machine With Press Machine
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

5t Hydraulic Uncoiler Cable Tray Roll Forming Machine With Press Machine

1.5mm cable tray roll forming machine,3phases cable tray roll forming machine,hydraulic uncoiler cable tray manufacturing machine

3phases cable tray roll forming machine

hydraulic uncoiler cable tray manufacturing machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی سینی کابل 5T هیدرولیک با دستگاه پرس

ماده غلتکی:

Gcr15، کروم آبکاری شده HRC58-62 Quench

قدرت موتور مایم:

22 کیلو وات

ولتاژ:

380 ولت 50Hz 3Phases

قدرت برش هیدرولیک:

7.5 کیلو وات

مواد برش:

CR12 با درمان کوئنچ

اتهام اتوماسیون:

خودکار

ماده غلتکی:

فولاد فورج 45#

اندازه طول دستگاه:

11000 میلی متر * عرض 800 میلی متر * ارتفاع 1000 متر

برجسته کردن:

1.5mm cable tray roll forming machine,3phases cable tray roll forming machine,hydraulic uncoiler cable tray manufacturing machine

3phases cable tray roll forming machine

hydraulic uncoiler cable tray manufacturing machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

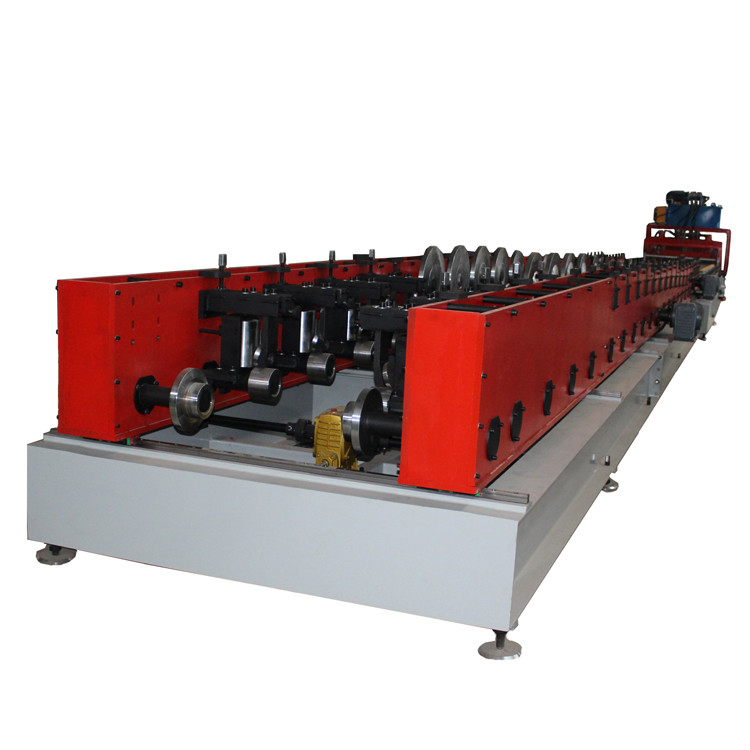

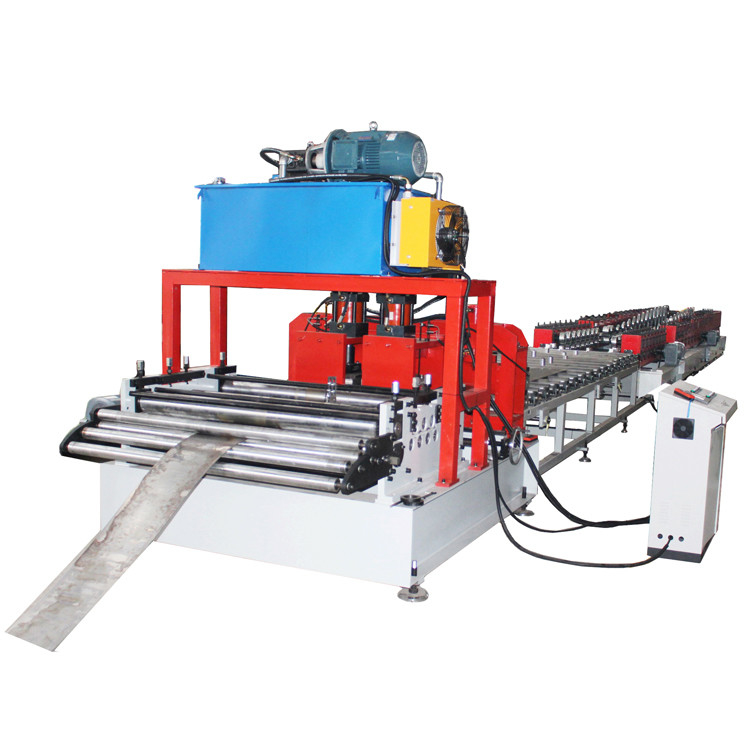

5T Hydraulic Uncoiler Cable Tray Roll Forming Machine With Press Machine

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.

Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

specifications

rticle No.	Item Name	Specification
1	Thickness	1.5mm-2.0mm
2	Hydraulic Station Power	7.5KW
3	Roller station	22 stations
4	Main Power with reducer	22KW
5	Rolling Speed	8-12m/min
6	Height of the profile	50-200mm
7	Tolerance	+-1.5mm
8	Weight	About 8 tons

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
