Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine

cu omega profile roll forming machine,cold omega profile roll forming machine,truss furring cold forming machine

cold omega profile roll forming machine

truss furring cold forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول پروفیل امگا دستگاه شکل دهی سرد خرپا کانال CU

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

45 متر در دقیقه

نوع برش:

برش هیدرولیکی

برش مواد تیغه:

Cr 12 فولاد درجه یک

ابعاد (L*W*H):

4800mm*1.55mm*1.3mm

ضخامت نورد:

0.3-0.8mm

سیستم کنترل:

PLC (مارک دلتا)

برجسته کردن:

cu omega profile roll forming machine,cold omega profile roll forming machine,truss furring cold forming machine

cold omega profile roll forming machine

truss furring cold forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

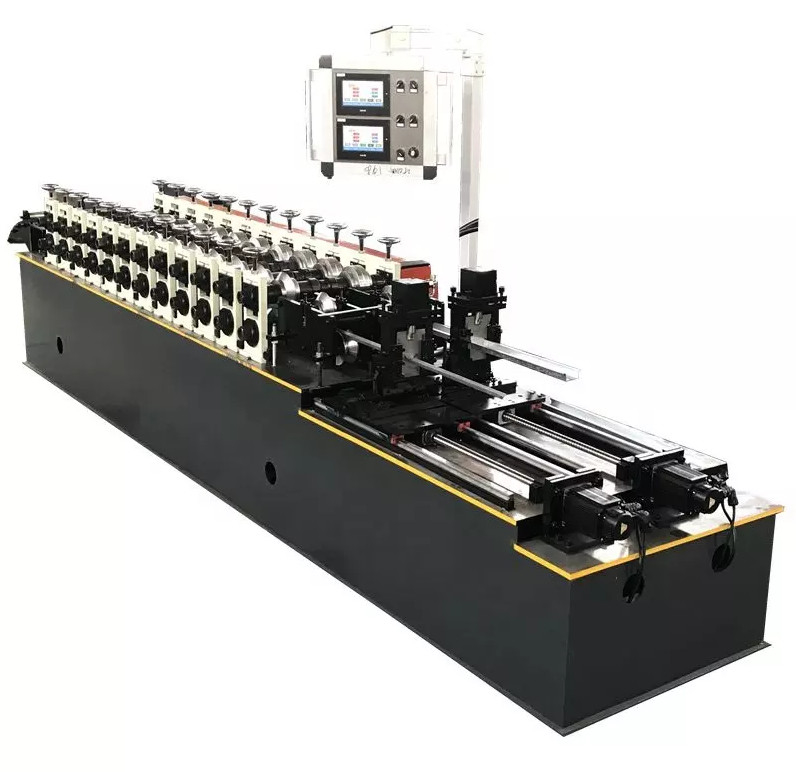

Omega Profile Roll Forming Machine C U Channel Truss Furring Cold Forming Machine

This is Perforated galvanized steel metal fence panel sheet roll forming machine , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .

Specification

1	Raw Material	Type	GI&PPGI
		Thickness	0.3-0.8mm
		Yield Strength	235Mpa to 350Mpa
2	Decoiler	Operation	Manual/ Hydraulic for option
2	Decoiler	Weight Capacity	5Tons
3	Main Body	Roller Station	12 rows
		Diameter of Shaft	50-60mm
		Material of Rollers	Cr12
		Material of shaft	45# steel with chrome 0.05mm
		Transmission	Gear
4	Cutter	Operate	Automatic Hydraulic / Electric type
4	Cutter	Blade material	Cr12MOV
5	Power	Pump motor for cutter	4KW
		Main Motor	5.5KW
		Voltage	380V 50Hz 3 Phase
6	Control system	Electric Box	PLC control system , Inverter
6	Control system	Language	English / Chinese
7	Speed	30-50M/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
