Automatic Cz Purlin Cold Roll Forming Machine Plc Control System

automatic cz purlin roll forming machine,cold cz purlin roll forming machine,plc control system cz purlin machine

cold cz purlin roll forming machine

plc control system cz purlin machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سیستم کنترل خودکار PLC دستگاه شکل دهی رول سرد CZ Purlin

ظرفیت تولید:

10-20 متر در دقیقه

ابعاد (L*W*H):

7000*800*1400 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

قدرت پمپاژ:

5.5 کیلووات

وزن:

7500 کیلوگرم

اتهام اتوماسیون:

خودکار

قدرت حرکتی اصلی:

15 کیلووات

برجسته کردن:

automatic cz purlin roll forming machine,cold cz purlin roll forming machine,plc control system cz purlin machine

cold cz purlin roll forming machine

plc control system cz purlin machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

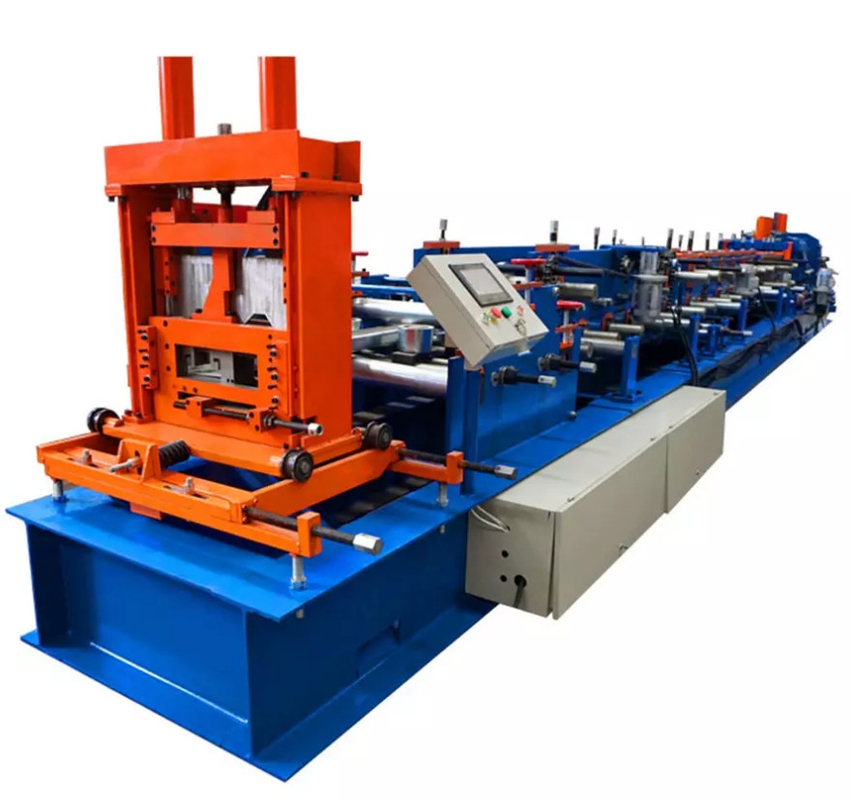

Automatic CZ Purlin Cold Roll Forming Machine PLC Control System

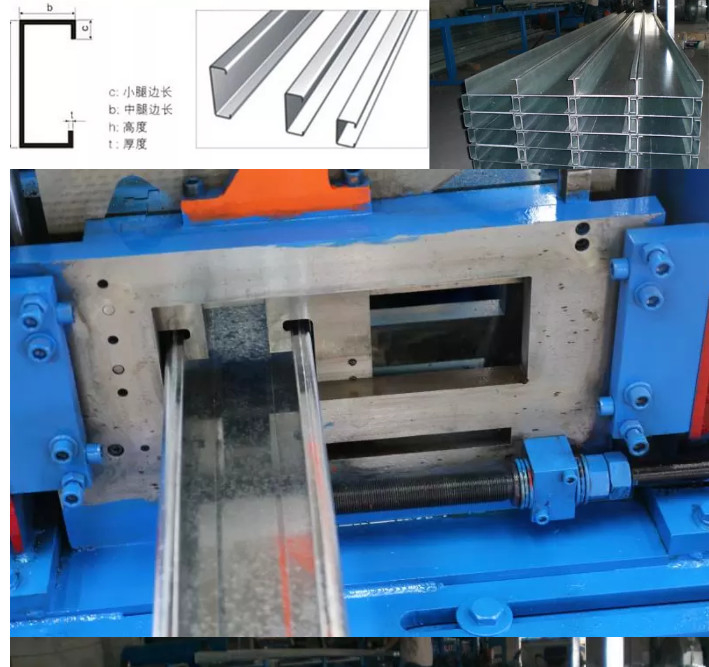

C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.

The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.

automatic steel c z frame purlin second hand metal sheet rolling machine

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel/colored steel coil
2	Material thickness:	1.5-3.5mm
3	Capacity:	10-20m/min
4	The weight:	2-8 ton
5	Main motor power:	15kw
6	Pump power:	5.5kw
7	Shaft diameter:	80mm
8	Forming steps:	9+13+2 steps
9	Roller material:	bearing steel
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)
14	size(LengthWidthHeight):	1.50.50.7m-125.32.5m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
