Automatic Cz Purlin Machine Size Change Type

plc cz purlin machine,size change type cz purlin machine,plc cz purlin roll forming machine

size change type cz purlin machine

plc cz purlin roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خودکار CZ Purlin دستگاه تغییر اندازه خودکار نوع

ایستگاه پمپ هیدرولیک:

22 کیلو وات

ولتاژ:

380 ولت 50Hz 3Phases

ماده غلتکی:

فولاد عیار 45#

وزن:

7500 کیلوگرم

سیستم کنترل:

کامپیوتر PLC

موتور الکتریکی:

5.5 کیلووات

بشقاب وسط:

20 میلی متر

برجسته کردن:

plc cz purlin machine,size change type cz purlin machine,plc cz purlin roll forming machine

size change type cz purlin machine

plc cz purlin roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

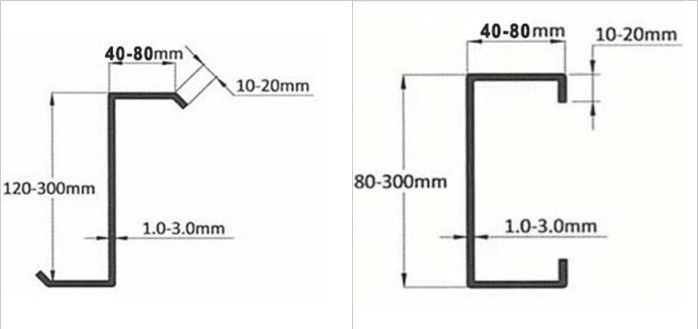

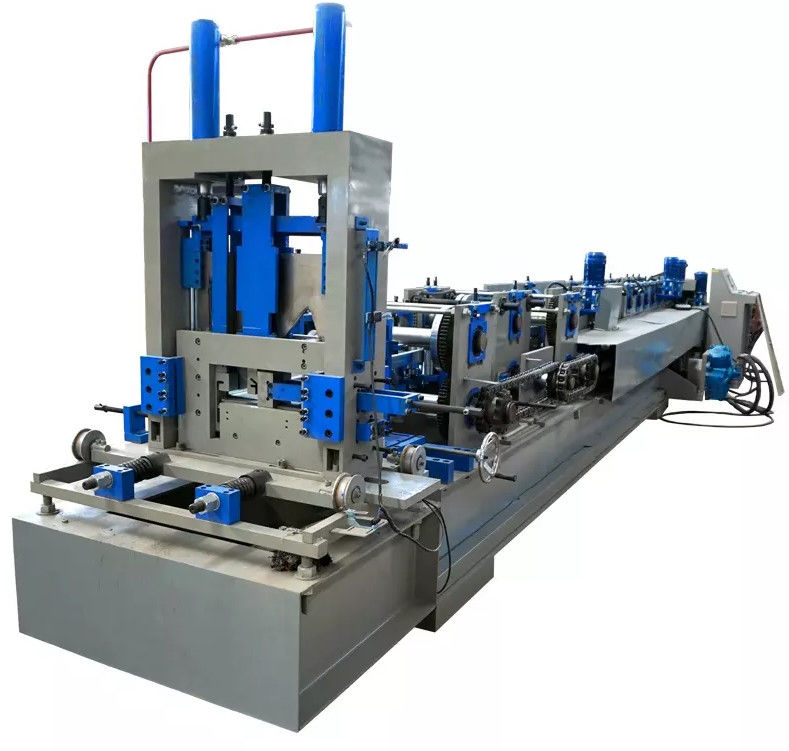

Automatic CZ Purlin Machine Automatic Size-Change Type
Automatic CZ Purlin Machine Automatic Size-Change Type.

Main features of automatic cz purlin roll forming machine:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side

specifications

NO.	Item	Specification
		Servo motor	Hydraulic motor
1	Thickness of material	1.0~3.0mm galvanized steel
2	Main motor power	22kw
3	Hydraulic pressure	16Mpa
4	Control system	PLC panel control
5	Shaft material	40Cr(φ80mm)
6	Roller material	GCr15
7	Forming speed	25~35m/min	16~20m/min
8	Hole punch & cutting	Hydraulic 7.5kw
9	Decoiler	Manual
10	Cutting blade material	Cr12Mov
11	Roller station	22stations
12	Dimension of machine(LWH)	10m1.35m1.75m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
