Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine

plc roof roll forming machine,7/8 inch roof roll forming machine,7/8'' corrugated roof sheet making machine

7/8 inch roof roll forming machine

7/8'' corrugated roof sheet making machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقف 7/8 اینچ ورق راه راه

سیستم کنترل:

PLC

ضخامت مناسب:

0.3-0.8mm یا به عنوان درخواست شما

تایپ کنید:

خودکار

تیغ برنده:

cr12mov

ولتاژ:

380 ولت / 50 هرتز / برق تک فاز یا در صورت نیاز

مواد غلتک:

C45 Steel Quenched و Chrome

مشخصات:

13500mm*1600mm*1450mm(L*W*H)

برجسته کردن:

plc roof roll forming machine,7/8 inch roof roll forming machine,7/8'' corrugated roof sheet making machine

7/8 inch roof roll forming machine

7/8'' corrugated roof sheet making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

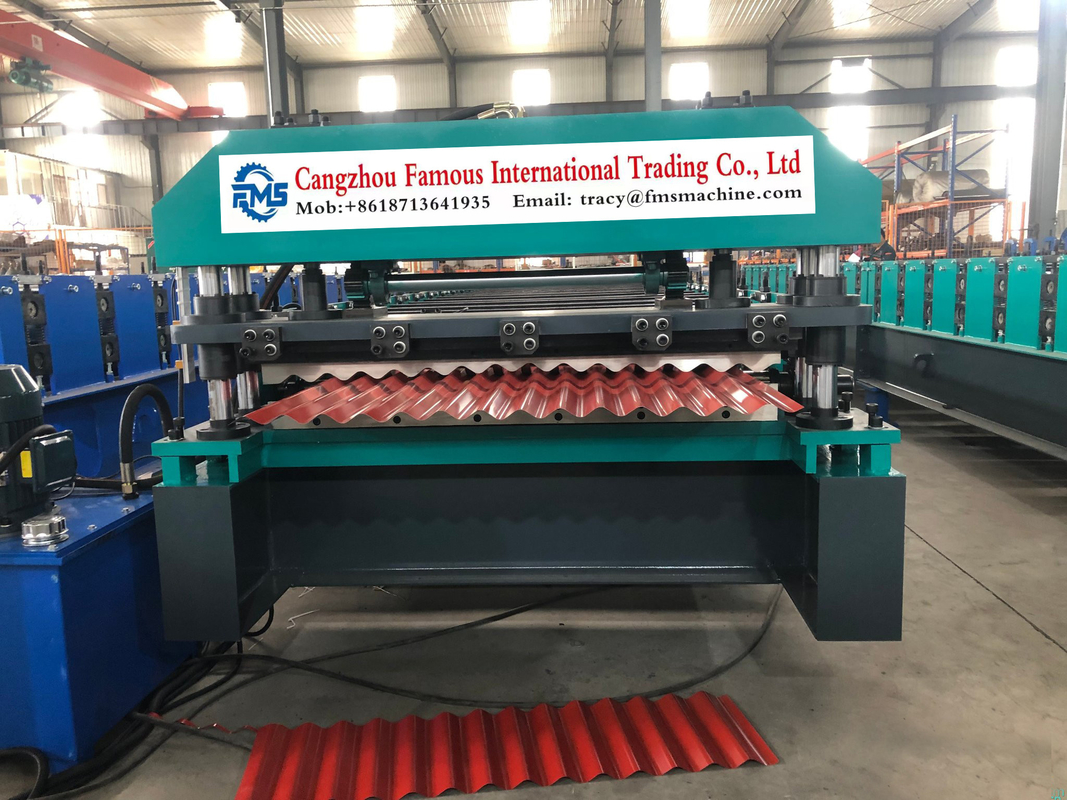

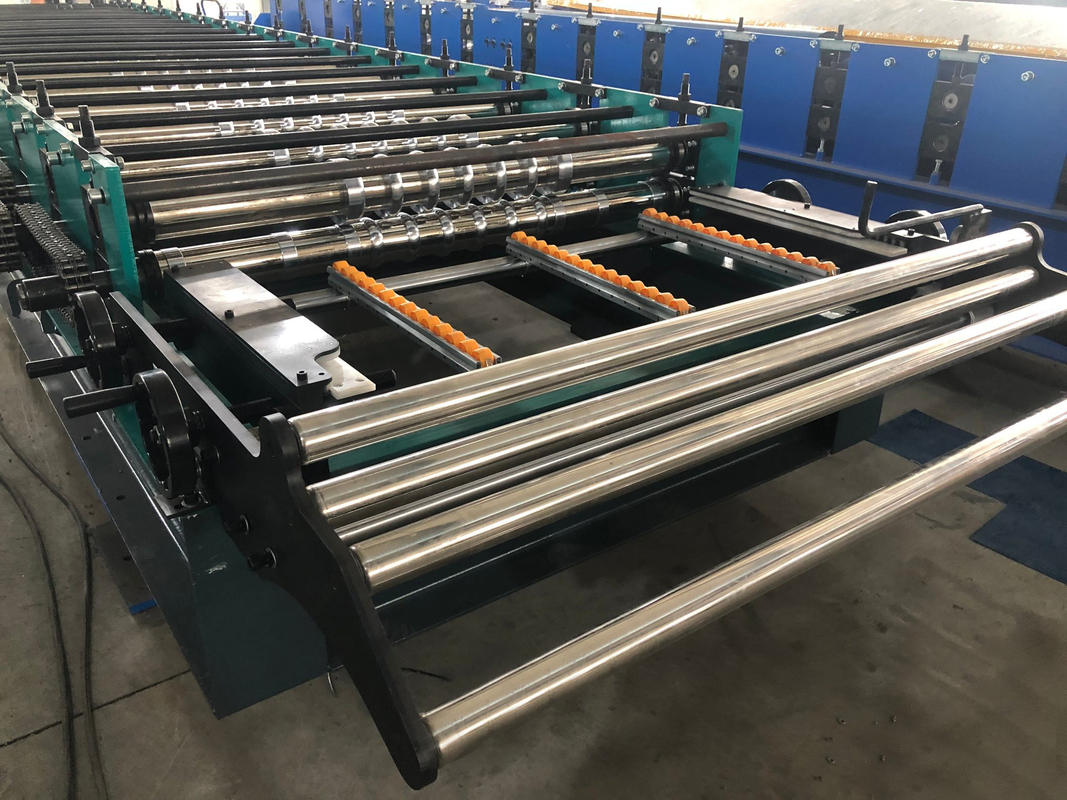

Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine

Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine.The roof panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.

Specification

Name	Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine
Raw Material	Material	Aluminium PPGI PPGL GI GL
	Width	914/925/1000/1200/1220/1250/1260mm
	Thickness	0.3-0.8mm, customized
Power Required	Power	380V 3Phase 50Hz, customized
	Main Motor	2*7.5KW, Lichao, Shanghai
	Cutting Motor	5.5KW, servo motor
Roll Forming Machine	Support Frame	400H-beam
	Forming Station	26
	Structure	16mm
	Shaft	45# high grade steel, 90mm, solid, with keyway
	Roller	45# high grade steel with heat treatment, hard chrome plated
	Chain	1.2inch
	Bearing	Standard
	Speed	12-18m/min
	Electric Components	Delta / Siemens / Mitsubishi
	Cutting Blade	Cr12Mov, quenched 58°-62°
	Operation	Touch Screen
	Dimension	13.51.61.45M
	Weight	7.0T

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
