Pakistan Style Roofing Sheet Roll Forming Machine Fedd Width 1200mm

hydraulic roofing sheet roll forming machine,1200mm roofing sheet roll forming machine,1200mm sheet metal roll forming machines

1200mm roofing sheet roll forming machine

1200mm sheet metal roll forming machines

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ ورق سقفی سبک پاکستان Fedd عرض 1200 میلی متر

روش:

فشار هیدرولیکی

نیروگاه ایستگاه هیدرولیک:

7.5 کیلو وات

روغن هیدرولیک:

روغن هیدرولیک 40#

ماده غلتکی:

380 ولت 3 فاز 50 هرتز

عرض تغذیه:

1200 میلی متر، 1000 میلی متر

بهره وری:

20 تا 25 متر/دقیقه

اندازه ظاهر:

8580mm*1550mm*1510mm

برجسته کردن:

hydraulic roofing sheet roll forming machine,1200mm roofing sheet roll forming machine,1200mm sheet metal roll forming machines

1200mm roofing sheet roll forming machine

1200mm sheet metal roll forming machines

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

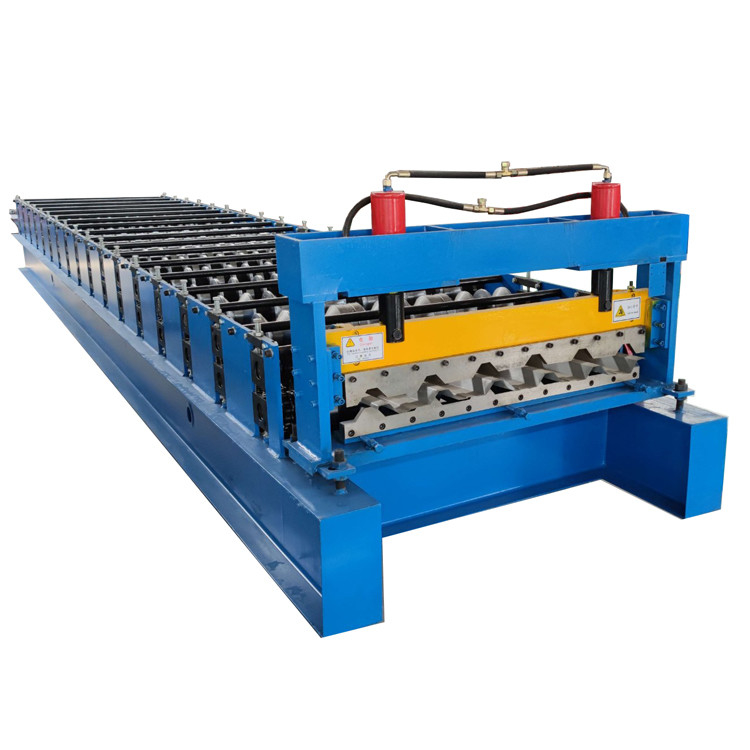

Pakistan Style Roofing Sheet Roll Forming Machine Fedd Width 1200mm

Pakistan Style Roofing Sheet Roll Forming Machine Fedd Width 1200mm.Main Advantages

1) Young factory with advanced technology , and experienced Engineer , professional foreign trade team .
2) Standard design for your choose from , custom design also acceptable .
3) Adopt updated design and structure , making machine durable and better than always .
4) Short delivery time , free trainning , free technical support for whole life .
5) Futher research for local market , help client grow up and development .

Main machine

The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece.The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.

Specification

Machine details
roller material	High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material	High grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment

diameter of shaft	70mm or as your requirement
main frame	300 H steel
productivity	20-25 m/min
Middle plate	16 MM
hydraulic station power	7.5 KW
hydraulic pressure	10-12MPa
material of cutting table	Cr 12 mould steel with quenched treatment
appearance size	8580mm1550mm1510mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirements

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Pakistan Style Roofing Sheet Roll Forming Machine Fedd Width 1200mm 0
