Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan

gi corrugated sheet roll forming machine,zinc corrugated sheet roll forming machine,gi steel sheet roll forming machine

zinc corrugated sheet roll forming machine

gi steel sheet roll forming machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول ورق راه راه فولاد روی برای پاکستان

روش:

فشار هیدرولیکی

نیروگاه ایستگاه هیدرولیک:

7.5 کیلو وات

وزن:

2.5T

ماده غلتکی:

380 ولت 3 فاز 50 هرتز

عرض تغذیه:

0.3-0.8mm

ضخامت مواد:

8-12 متر در دقیقه

اندازه ظاهر:

6500mm*1500mm*1300mm

برجسته کردن:

gi corrugated sheet roll forming machine,zinc corrugated sheet roll forming machine,gi steel sheet roll forming machine

zinc corrugated sheet roll forming machine

gi steel sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

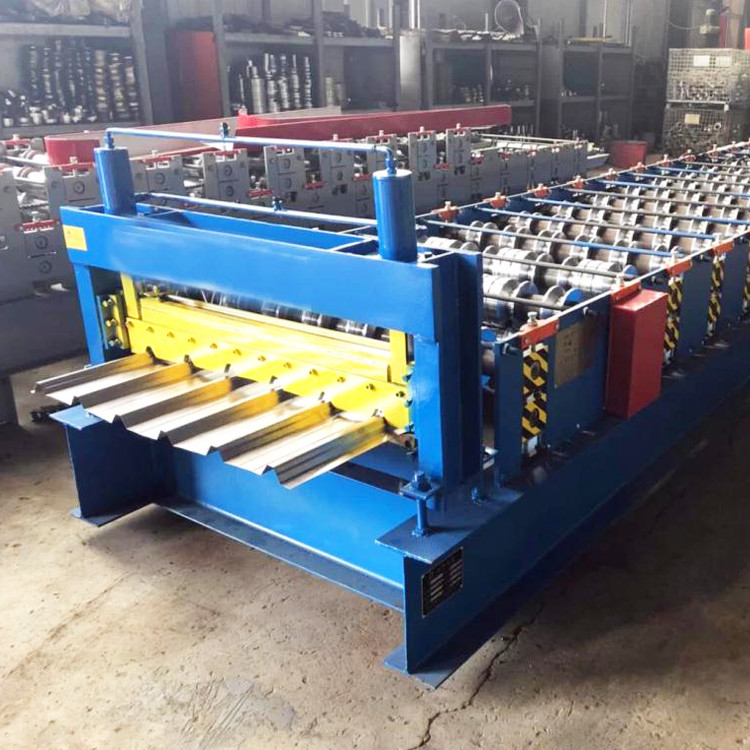

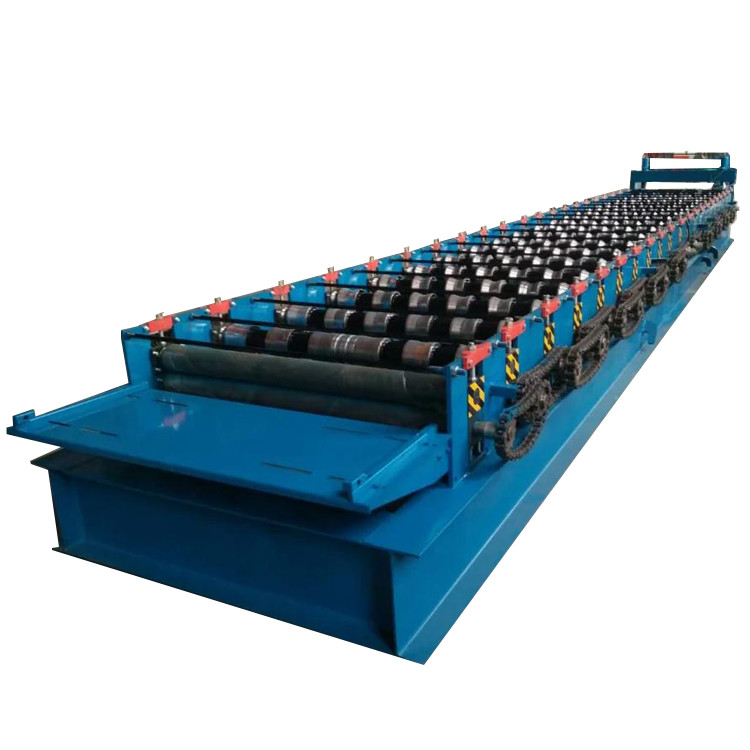

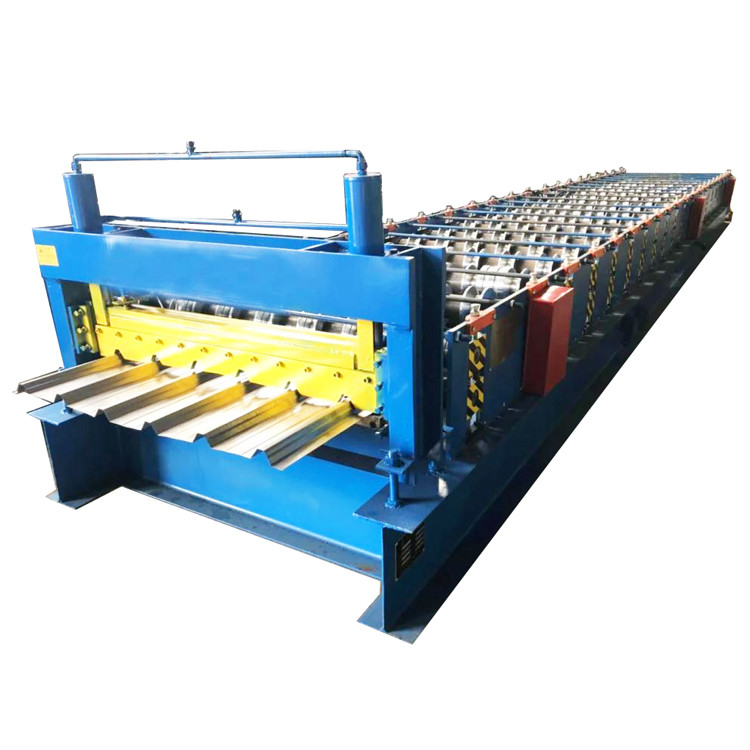

Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan

Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan. This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

Specification

ding host	Model	roof tile making machine
	Forming size	6500mm1500mm1300mm
	weight	2.5T
	Host big frame structure	Frame welded
	Roll station	13row
	Axial material	45# steel
	Out diameter of shaft	Φ75mm
	Roller materials	45# steel hard chromium plating
	Drive	By chain
	Sprocket chain	1 inch
	Main power	5.5 + 4 kw
	Working speed	8-12 m/min
	Material thickness	0.3-0.8mm
	Made board	18mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan 0
