gymnasiums Roof & Wall Sheeting Panels Roll Forming Machine Line

915mm roof roll forming machine,gymnasiums roof roll forming machine,915mm sheet roll forming machine

gymnasiums roof roll forming machine

915mm sheet roll forming machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

سقف و دیوار ورق پانل های رول فرمینگ ماشین خط

ظرفیت تولید:

8-15 متر در دقیقه

سیستم کنترل:

PLC (مارک وارداتی)

ماده غلتکی:

380 ولت 50Hz 3Phases

عرض تغذیه:

915-1250 میلی متر

وزن:

5000 کیلوگرم

مشخصات:

8600x1500x1300mm

ماده شفت:

45# قطر بیرونی فولاد: 80 میلی متر

برجسته کردن:

915mm roof roll forming machine,gymnasiums roof roll forming machine,915mm sheet roll forming machine

gymnasiums roof roll forming machine

915mm sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

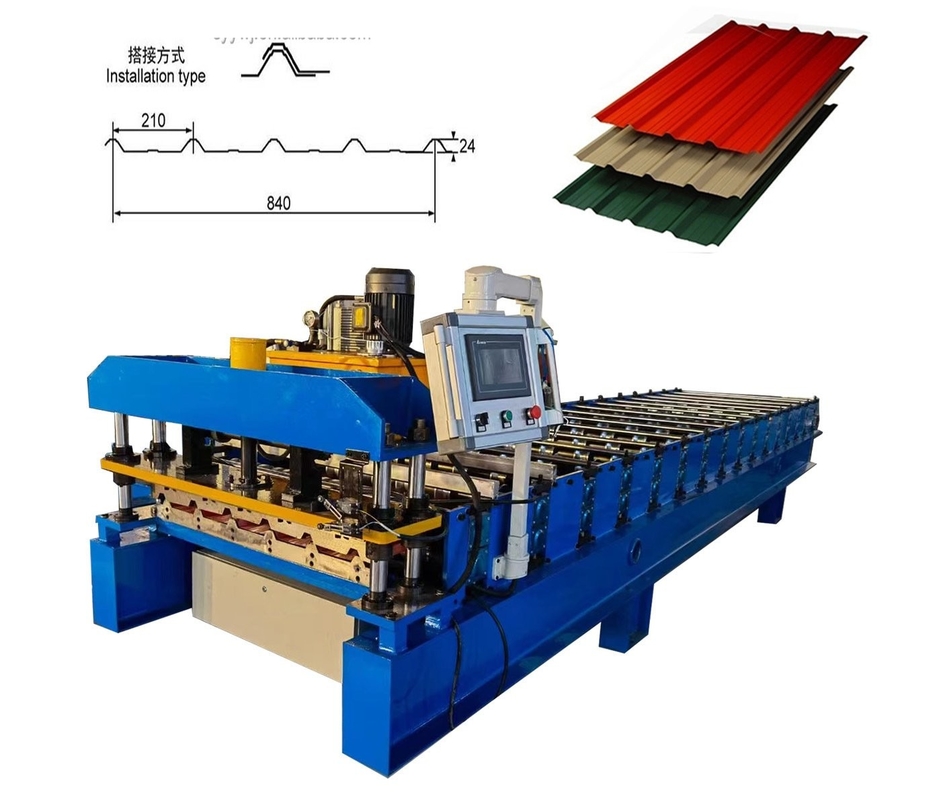

Roof & Wall Sheeting Panels Roll Forming Machine Line

Roof & Wall Sheeting Panels Roll Forming Machine Line

1.Different roof/wall panel cold roll former can produce different shapes of steel roof wall sheets.According to the client's profile drawings and requirements.We can also supply the customized machines

2. Applications of Roof/Wall Panel Roll forming Machine:The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition,centers etc.

Specification

Name	Details	Remark
Feed frame roller	Stainless Steel
Machine base structure	350H steel welded
Machine architecture	Middle plate	20mm thick
Drive mode	Chain drive
Roller station numbers	18 rows of rollers
Rollers material	45# steel	Surface hard chromium plating
Shaft diameters	Φ 90mm +80mmSolid shafts
Shaft material	45# steel
Motor power	5.5kw
Forming speed	0-12m per minute
Power	380v 50hz 3Phase	Or as customer request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
