Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness

zinc shutter door roll forming machine,0.12mm shutter door roll forming machine,0.4mm thickness shutter roll forming machine

0.12mm shutter door roll forming machine

0.4mm thickness shutter roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

قاب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول درب شاتر Ondulado برای آلومینیوم روی ضخامت 0.12-0.4 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

ابعاد (L*W*H):

5000*1600*1500 میلی متر

ظرفیت تولید:

10-15 متر در دقیقه

ضخامت نورد:

0.3-01.2 میلی متر

ماده غلتکی:

45#فولاد

ایستگاه غلتکی:

ایستگاه 14

وزن:

3500 کیلوگرم

اجزای اصلی:

PLC ، موتور ، یاتاقان ، موتور ، دنده

برجسته کردن:

zinc shutter door roll forming machine,0.12mm shutter door roll forming machine,0.4mm thickness shutter roll forming machine

0.12mm shutter door roll forming machine

0.4mm thickness shutter roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

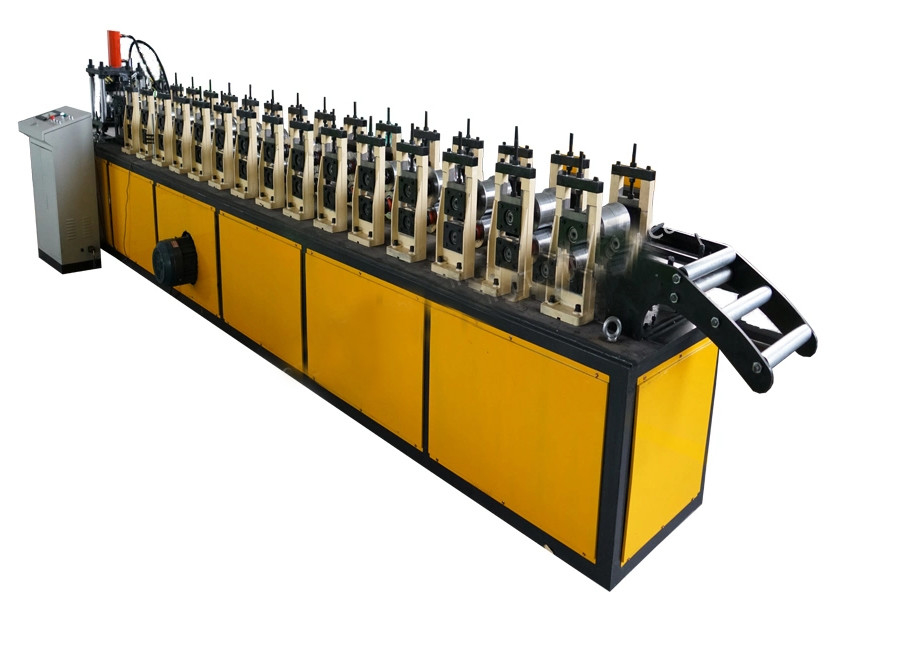

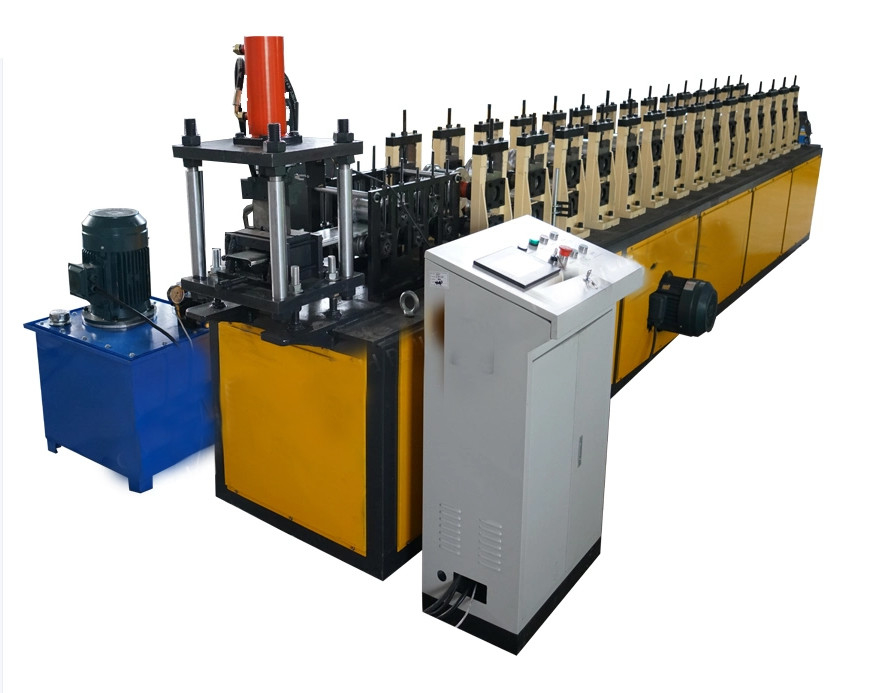

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness.

CANGZHOU FAMOUS INTERNATIONAL TRADING CO, LTD is a large enterprise specialized in galvanized/galvalume/color steel coil,hot/cold steel coil,all kinds of roofing sheet ,roofing machine and so on products .In order to meet thr requirements of customers ,there are four main sectors in our company ,which are purchase ,sales,storage and transportations .With highly effective operations ,reasonable prices and timely delievery ,our company have established a well-known brand in the steel industry and have won high praise of customers and colleagues .

Specification

NO.
1.	Raw material	Type	GI&PPGI
		Thickness	0.3-0.8mm
		Yield strength	235Mpa TO 350Mpa
2.	Decoiler	Operation	Manual/Hydraulic for option
2.	Decoiler	Weight apacity	5tons
3.	Main body	Roller station	12 stations
		Diameter of shaft	70mm
		Material of rollers	45# steel with chrome 0.05mm
		Material of shaft	45# steel with chrome 0.05mm
		Frame	350mm H-Beam
		Chain	1inch
4.	Cutter	Operate	Automatic hydraulic type
4.	Cutter	Blade Material	Cr12MOV
5.	Power	Pump motor for cutter	4kw
		Main motor	5.5kw
		Voltage	380V 50HZ
6.	Control system	Electric Box	PLC control system, Inverter, encoder
6.	Control system	Language	English
7.	Speed	8-12m/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
