Name: Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درز ایستاده اسنپ قفل
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic

iso roofing panel roll forming machine,fullautomatic roofing panel roll forming machine,portable standing seam roll forming machine

fullautomatic roofing panel roll forming machine

portable standing seam roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

درز ایستاده اسنپ قفل

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

درز ایستاده سقف پانل رول فرمینگ دستگاه قابل حمل تمام اتوماتیک

استفاده کردن:

درز ایستاده پانل قفل نوار ناخن

ابعاد (L*W*H):

8.5 متري × 1.5 متري × 1.2 متري

ضخامت نورد:

0.5-0.8

وزن:

8310 کیلوگرم

وضعیت:

جدید

ولتاژ:

380V/415V/220V،50/60Hz،3Ph

ظرفیت تولید:

18-20

برجسته کردن:

iso roofing panel roll forming machine,fullautomatic roofing panel roll forming machine,portable standing seam roll forming machine

fullautomatic roofing panel roll forming machine

portable standing seam roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

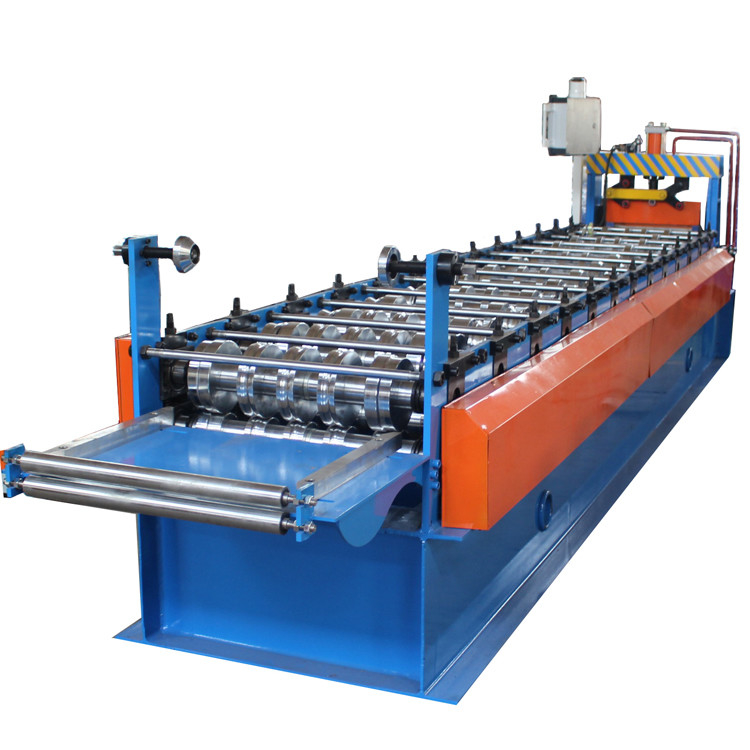

Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic

The advantages of Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic are as follows:

1.Low cost, light weight but high strength, short building period, and re-cycle use

2.can produce KALZIP,LYSAGHT,BEMO,KINGSPAN style Standing Seam Roof Panel

3.Easy operation, low maintenance cost

Standing seam roof panel machine rollers:

Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options. Body frame made from 350# H type steel by welding.

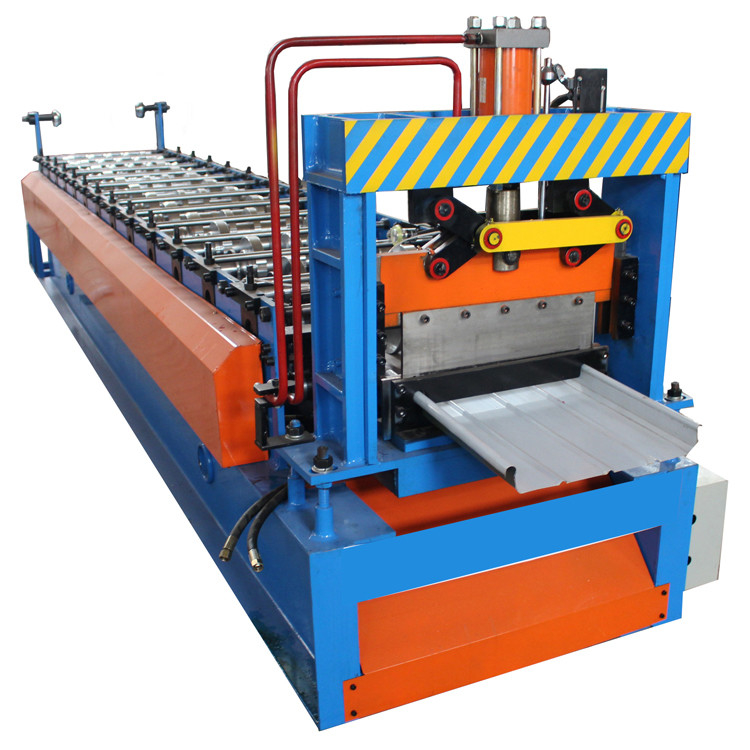

Standing seam roof panel machine post cutter:

Made by high quality mold steel Cr12 with heat treatment.Cutter frame made from high quality 20mm steel plate by welding.hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Main motor	5.5KW*2
3	Forming speed	15-18m/min
4	Cut-to-length tolerance	≤±2 mm
5	Dimension (LWH)	8.5M x 1.5M x 1.2M
6	Machine Weight	8310 kg
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	4 KW
10	Cutting Accuracy	±2 mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic 0
