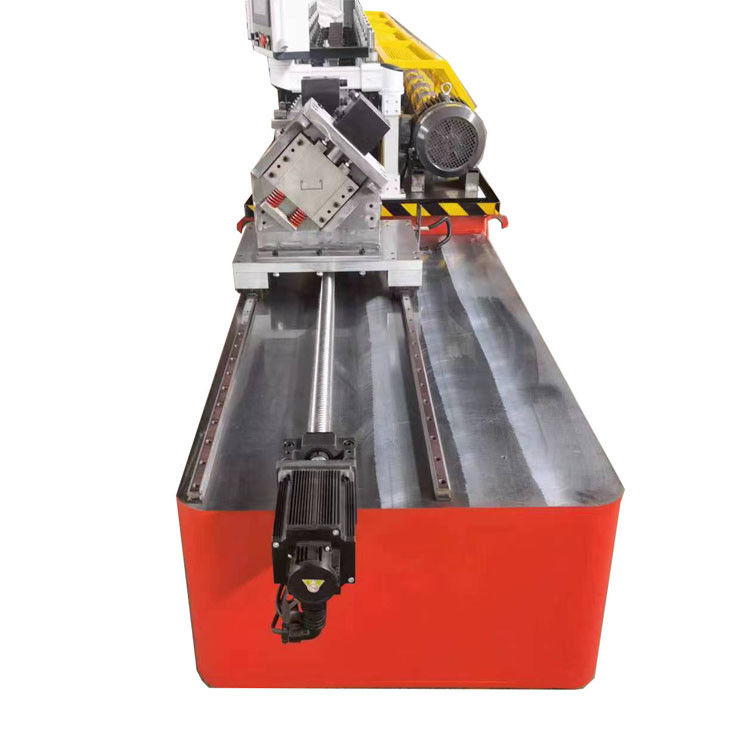

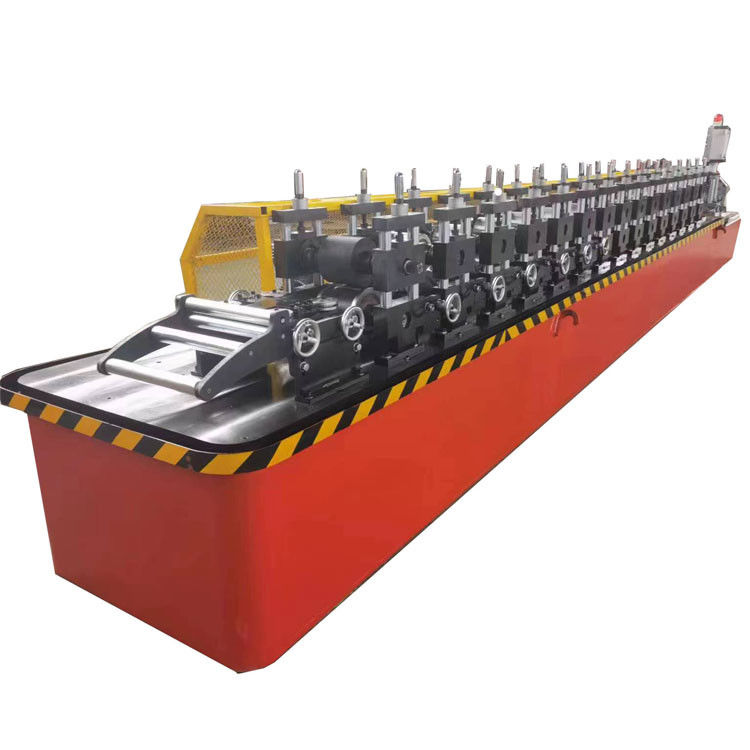

High Speed Stud And Track Roll Forming Machine Automatic C U Profiles Drywall

galvanised stud and track roll forming machine,4kw stud and track roll forming machine,nonstop cutting drywall roll forming machine

4kw stud and track roll forming machine

nonstop cutting drywall roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

پر سرعت گل میخ و رول رول فرمینگ دستگاه اتوماتیک CU پروفیل Drywall

تایپ کنید:

دستگاه رول فرمینگ برش بدون توقف

نوع کاشی:

فولاد گالوانیزه

استفاده کردن:

دیوار خشک

ظرفیت تولید:

45 متر در دقیقه

وزن:

3500 کیلوگرم

موتور اصلی:

4 کیلو وات

سیستم کنترل:

PCL

برجسته کردن:

galvanised stud and track roll forming machine,4kw stud and track roll forming machine,nonstop cutting drywall roll forming machine

4kw stud and track roll forming machine

nonstop cutting drywall roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Metal Stud And Track Forming Machine For Light Construction Use

Decoiler ( Selectable configuration ):
Optional configuration ): Hydraulic decoiler; Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm

Forming station :

With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm ;
Tie rod:ф22 Galvanized
Rollers manufactured from Gcr15/Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm,surface with mirror treatment
The warranty for the rollers is 2 years
Shafts Diameter=ф60 mm,precision machined
Gear/Sprocket driving,about 10-step to form
Main Motor=18.5KW , Frequency speed control
Speed redcucer motor:K series;
Size changing motor:6pcs, Automatically controlled by PLC Programing.
Sliding block:150*150mm;
All the screw bolts with grade 8.8
Real forming speed 20m/min (depending on the number of punching holes)With squareness roller setup

Post Hydraulic Cutting Device ,Fly- Cutting,pieces type of cutting blade design, no blanking
Hydraulic motor:5.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station

Specification

Roll forming machine	Feeding device	Platform, the width is adjustable
	Roller stations	16 stages The distance between 2 stages is 443mm
	Roller shaft	Shaft material: 45# steel
	Roller shaft	Shaft diameter: φ70 mm
	Roller	Roller material: 45# steel
	Roller	Roller material: 45# steel	Roller spacer	Anti rusty treatment
	Work speed	60m/min
	Main structure	Middle plate weld with structure
	Motor power	5.5KW
	Transmission	1.0INCH CHAINS
	Machine basic frame	400# H steel welded with diagonal bracing inside
	Bearing	Chinese famous brand

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
