Name: Galvanized Roofing Tile Roll Forming Machine For Metal Roof Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Galvanized Roofing Tile Roll Forming Machine For Metal Roof Making Machine

galvanized roofing tile roll forming machine,900mm roofing tile roll forming machine,hydraulic pressure tile roll forming machine

900mm roofing tile roll forming machine

hydraulic pressure tile roll forming machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ کاشی سقفی گالوانیزه دستگاه ساخت سقف فلزی کور

روش:

فشار هیدرولیکی

ظرفیت تولید:

20 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

عرض تغذیه:

900 میلی متر

مواد غلتکی (سخت):

Cr12، حرارت داده شده و خاموش، پرداخت

ابعاد (L*W*H):

8500*1400*1400 میلی متر

ضخامت نورد:

0.3-0.8mm

زیر قاب:

350H-beam، ساختار جوش

مواد پیش برش:

cr12mov

برجسته کردن:

galvanized roofing tile roll forming machine,900mm roofing tile roll forming machine,hydraulic pressure tile roll forming machine

900mm roofing tile roll forming machine

hydraulic pressure tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

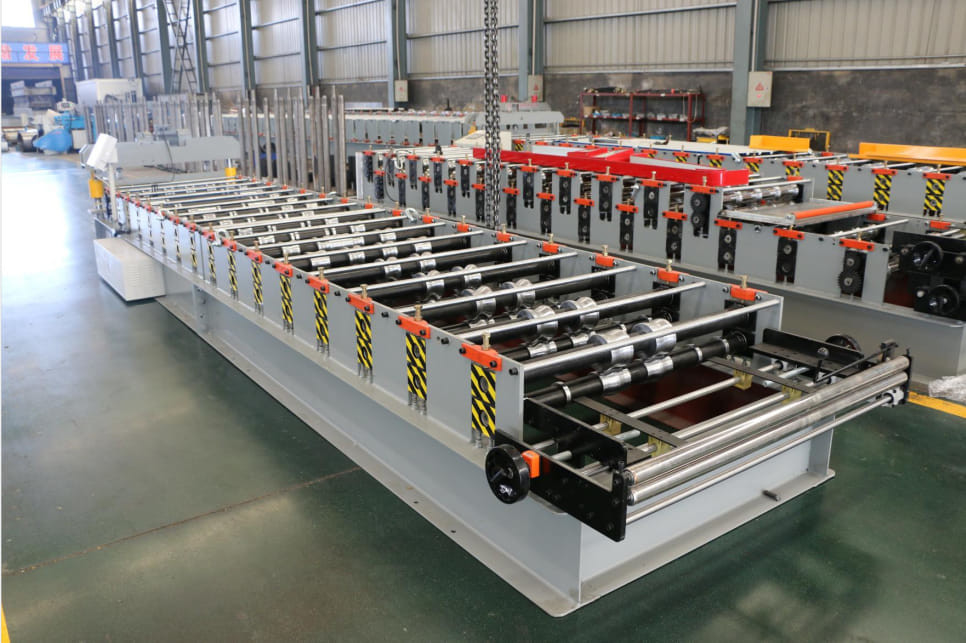

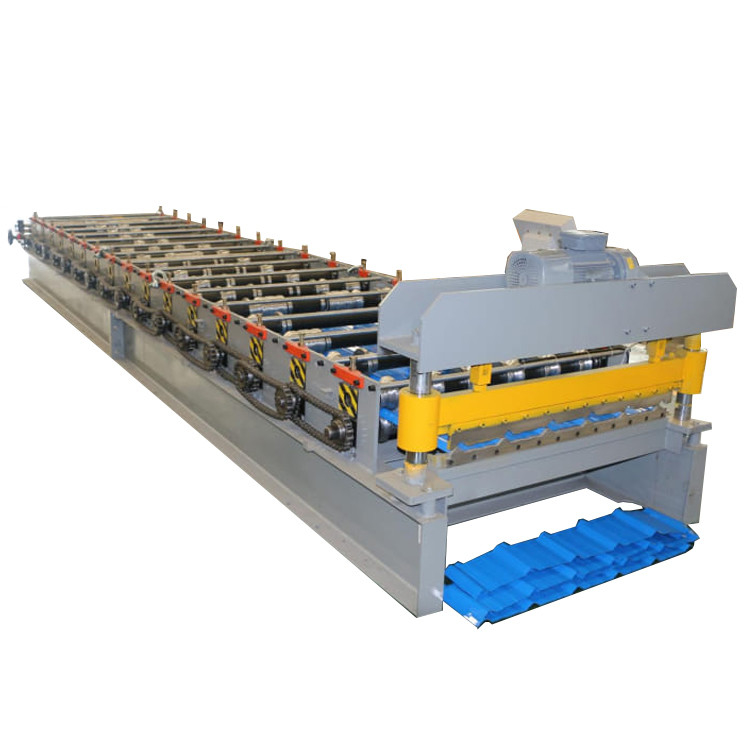

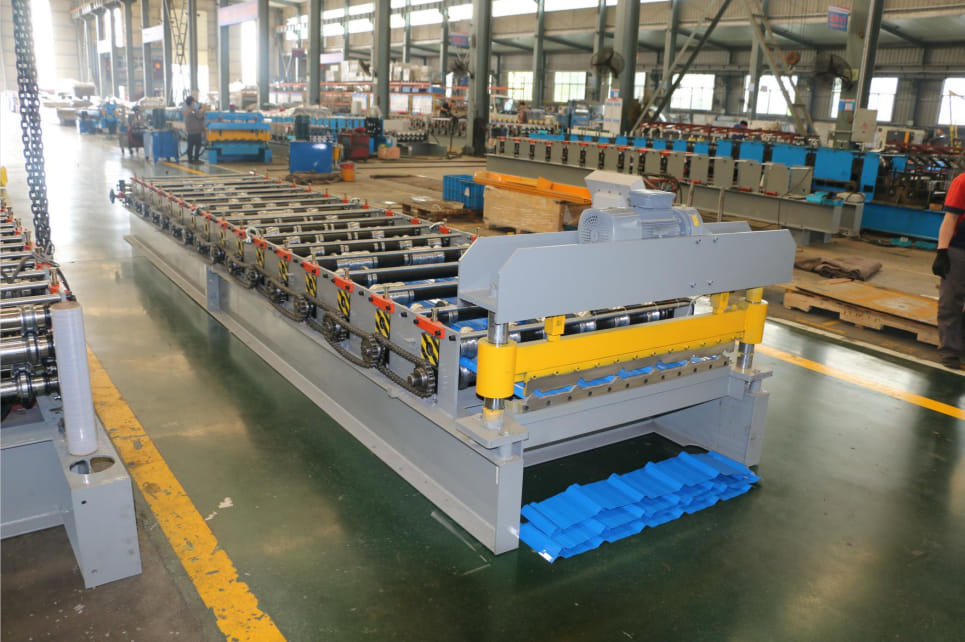

Galvanized Roofing Tile Roll Forming Machine Cor Metal Roof Making Machine

Galvanized Roofing Tile Roll Forming Machine Cor Metal Roof Making Machine.

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is cal glazed tile forming machine ,c/z puline machine for light steel structure building ,floor deck forming machine sandwich

panel production line ,fast guardrail roll forming

line and various kind of full automatic cold bending

roll forming machine equipment.

we have approved certification of ce iso9001,the concept control everyone orocess and perfect all products is curved in everyone mind ,each machine.will be via load carrying test before leaving factory,problem machines will never be delivered to customer.

we are willing to promote the economic and technical,exchange with the word ,and do positive work to enhance the between people from different countries,we sincerely hope you and hand in hand ,create the glorious future altogether.

Specification

Roller station	16Steps
Under Frame	350H-beam, Welded structure
Shaft diameter(Solid)	70mm-0.01~-0.03(with key-way)
Shaft material(Hard)	High grade 45# steel,heated and quenched,cylindrical grinding,
Roller material(Hard)	Cr12,heated and Quenched,polishing
Bearing Type	Standard
Transmission Gear	Heat treatment
Motor Power	5.5KW(Lichao,Shanghai)
Forming Speed	0-20m/min(Non-Stop)
Hydraulic Cutting	Tracking Length To Cut
Pump power	5.5 KW
Hydraulic pressure	20 Mpa
Voltage Standard	380V/3Phases/50Hz
Cutting die	Cr12Mov, Quenched processed

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
