Name: Hydraulic Automatic Metal Curving Machine Curved Roof Can Bend Larger Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سقف قوسی منحنی
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Hydraulic Automatic Metal Curving Machine Curved Roof Can Bend Larger Roof

hydraulic metal curving machine,ppgl metal curving machine

ppgl metal curving machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

سقف قوسی منحنی

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین منحنی اتوماتیک هیدرولیک سقف منحنی می تواند سقف بزرگتر را خم کند

مواد خام:

PPGL,GL,PPGI,GI,

ابعاد (L*W*H):

5800x1400x1600mm (L*W*H)

ضخامت نورد:

Cr 12 فولاد درجه یک

برش مواد تیغه:

45# قطر بیرونی فولاد: 70 میلی متر

ولتاژ:

380 ولت / 50 هرتز / 3 pH یا به عنوان مشتری

سیستم کنترل:

PLC

ماده شفت:

درجه عالی No.45 فورج

برجسته کردن:

hydraulic metal curving machine,ppgl metal curving machine

ppgl metal curving machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

40 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

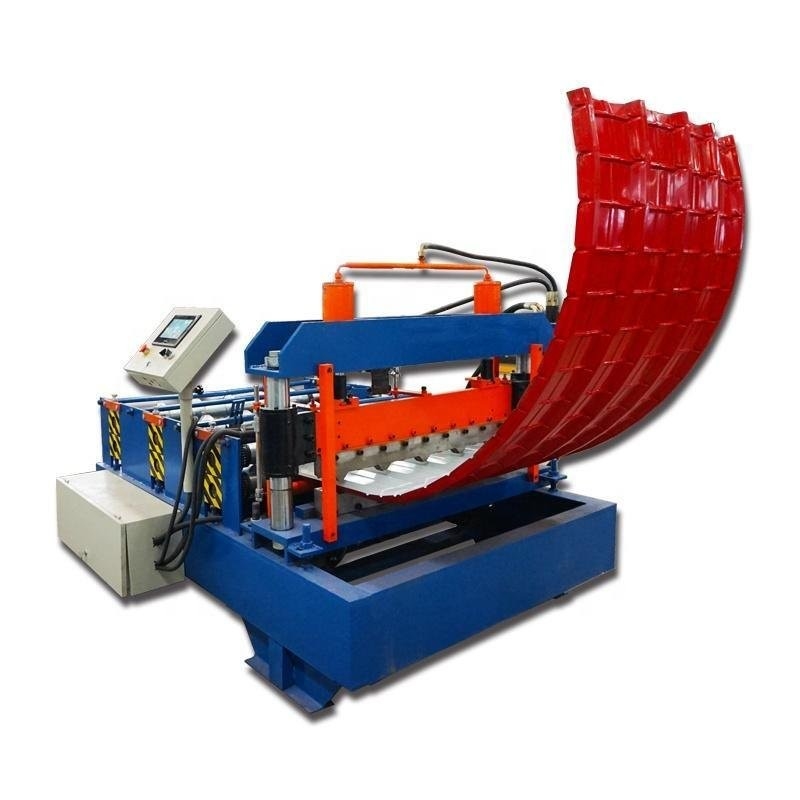

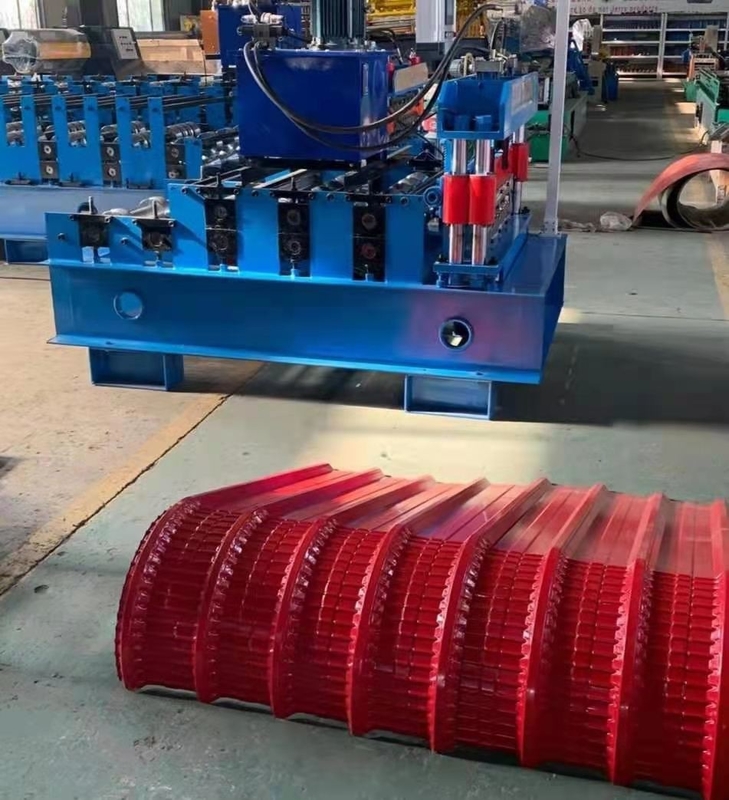

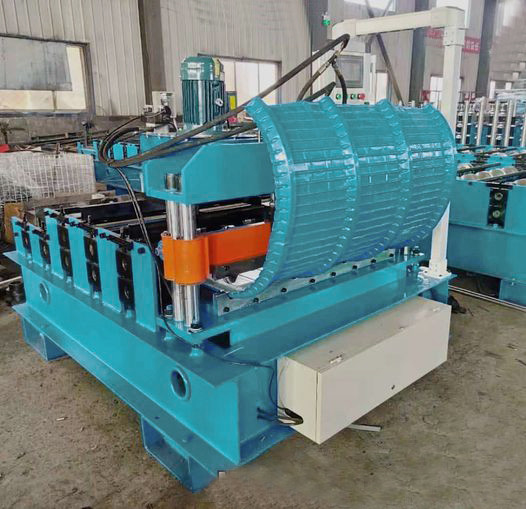

Hydraulic Automatic Curving Machine Curved Roof Can Bend Larger Roof

Hydraulic Automatic Curving Machine Curved Roof Can Bend Larger Roof:

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables

This stand seam roof curving machine is for curving the stand seam roof into concave and convex shape, 3 steps roll forming and choose gear transmission. It can both curve aluminum sheet and metal steel shee, this type of standidng roof can build more beautiful steel house and big sport hall. So small design, you can take this machine for your steel building project anywhere.

Specification

Hydraulic Automatic Curving Machine Curved Roof Can Bend Larger Roof
Material thickness	0.3-0.8mm
Diameter of shaft(solid shaft)	70mm
Material of shaft (solid shaft)	(high grade) 45# Steel, quenching and tempering treatment
Material of roller	45# steel polished and coated with chrome HRC55-60°
Reducer	8# cycloid reducer (high grade)
Cutting	hydraulic cutting after roll forming
Control system	PLC Frequency Control System with touch screen

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received

Hydraulic Automatic Metal Curving Machine Curved Roof Can Bend Larger Roof 0
