Name: Glazed Tile Roll Forming Machine Bamboo Type Roof Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: بامبو
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Glazed Tile Roll Forming Machine Bamboo Type Roof Making Machine

380v glazed tile roll forming machine,7.5 kw glazed tile roll forming machine,bamboo roof glazed tile forming machine

7.5 kw glazed tile roll forming machine

bamboo roof glazed tile forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

شماره مدل:

بامبو

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه ساخت سقف بامبو نوع رول کاشی لعابدار

عرض:

3-5 متر در دقیقه

وزن:

4000 کیلوگرم

ماده غلتکی:

380 ولت 50Hz 3Phases

ماده غلتکی:

45# فولاد

تشکیل قدرت موتور:

7.5 کیلو وات

مشخصات:

8500 * 1300 * 1200 میلی متر

قدرت:

7.5 کیلو وات

برجسته کردن:

380v glazed tile roll forming machine,7.5 kw glazed tile roll forming machine,bamboo roof glazed tile forming machine

7.5 kw glazed tile roll forming machine

bamboo roof glazed tile forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

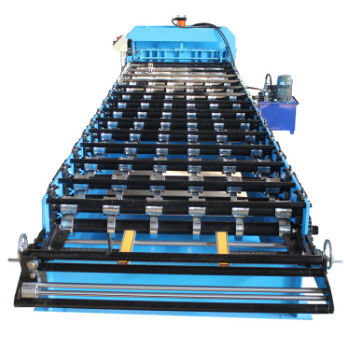

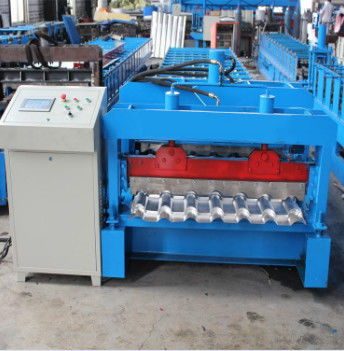

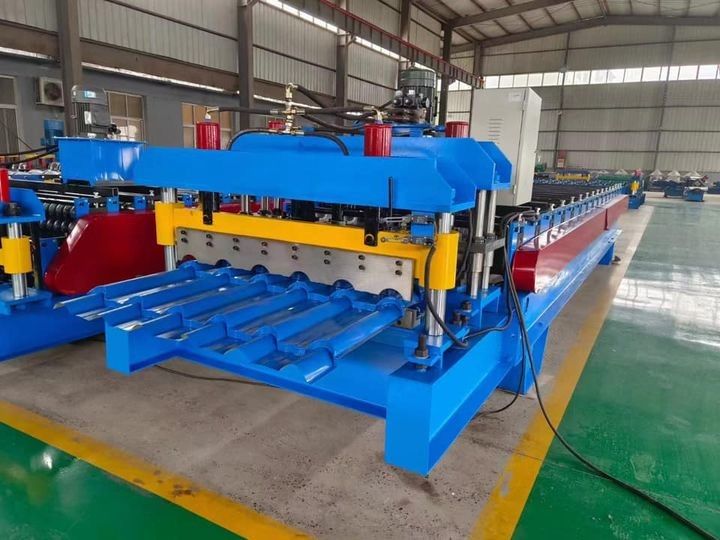

Glazed Tile Roll Forming Machine Bamboo Type Roof Making Machine

Glazed Tile Roll Forming Machine, Use PPGI as material and other harder coils , the finished tiles Widely worked for roof and wall panel . Glazed tile roll forming machine is our advantage equipment. We have high standard for glazed tile roll forming machine. firstly No painting break . secondly is the accurate length of every tiles. The third is installation with easy operate.

Specification

Suitable material	Strip steel
Working speed	1- 3 m/min
Main motor power	7.5 kw
Hydraulic station power	4 kw
Thickness of material	0.3-0.8 mm
Roller station	16 stations
Driving mode	Chain
Electric tension	380 V /3 phase/ 50 HZ
Material of roller	45# forged steel
Material of cutting	Cr12

Application

The finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes

Delivery And Payment

FOB Tianjin Xingang Port or CIF require Port

The Delivery Time: 30 days after the down payment is received.

30% advance payment for arrange production .

70% balance before shipping and after inspection .
