Name: Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 6 دنده IBR
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase

3phase roof tile roll forming machine,6rib roof tile roll forming machine,trapezoid type roof tile roll former

6rib roof tile roll forming machine

trapezoid type roof tile roll former

محل منبع:

چین

نام تجاری:

fms

گواهی:

CE,ISO

شماره مدل:

6 دنده IBR

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی تایل سقفی ذوزنقه نوع 6 دنده ای 3 فاز

روش:

فشار هیدرولیکی

محدوده ضخامت:

0.2-0.6 میلی متر

سرعت کار:

7-15 متر در دقیقه

وزن ماشین:

5 تن

ماده غلتکی:

380 ولت 3 فاز 50 هرتز

مشخصات:

6300mm*1500mm*1500mm(L*W*H)

سفارشی:

سفارشی

برجسته کردن:

3phase roof tile roll forming machine,6rib roof tile roll forming machine,trapezoid type roof tile roll former

6rib roof tile roll forming machine

trapezoid type roof tile roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

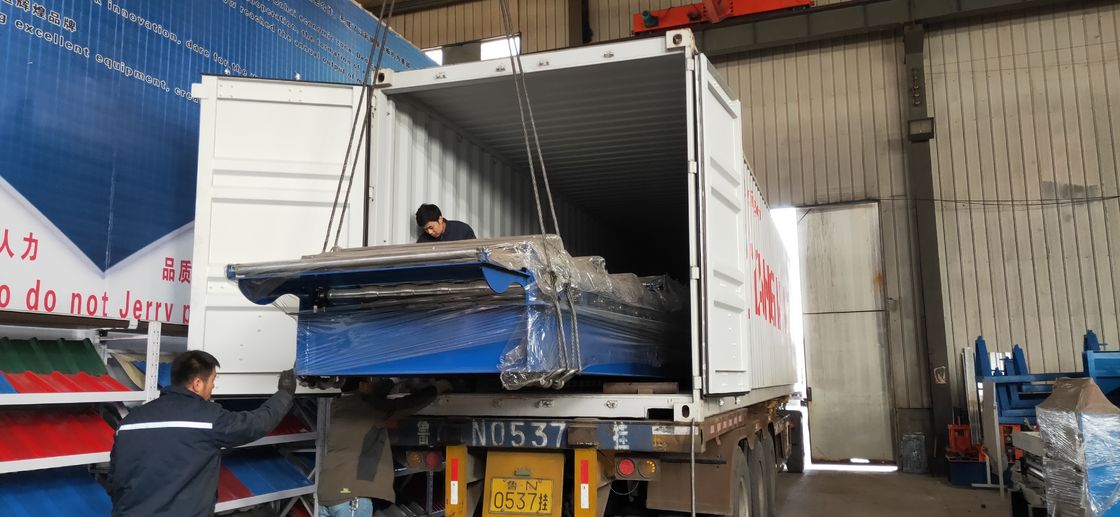

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

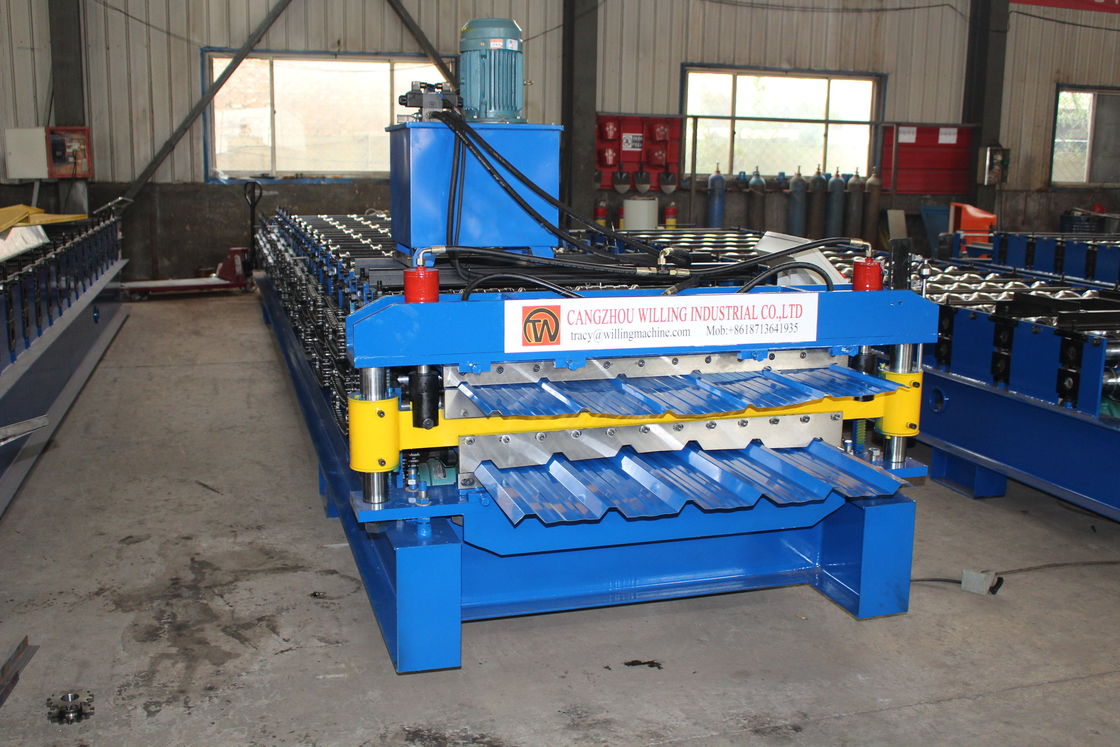

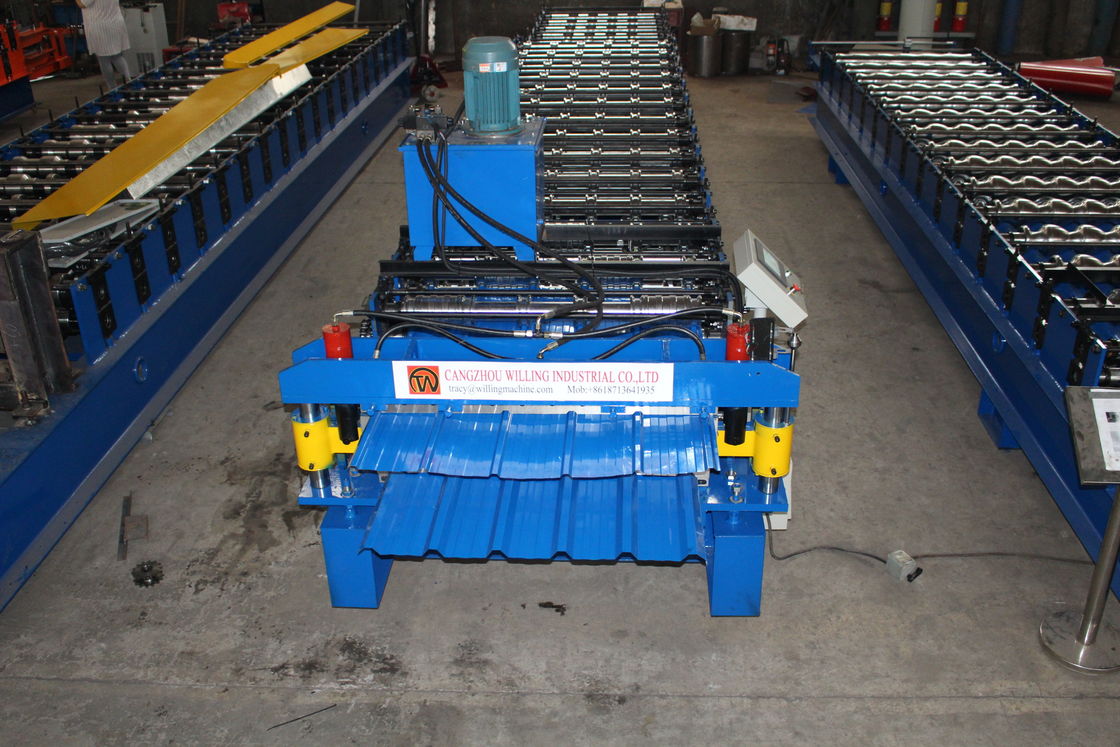

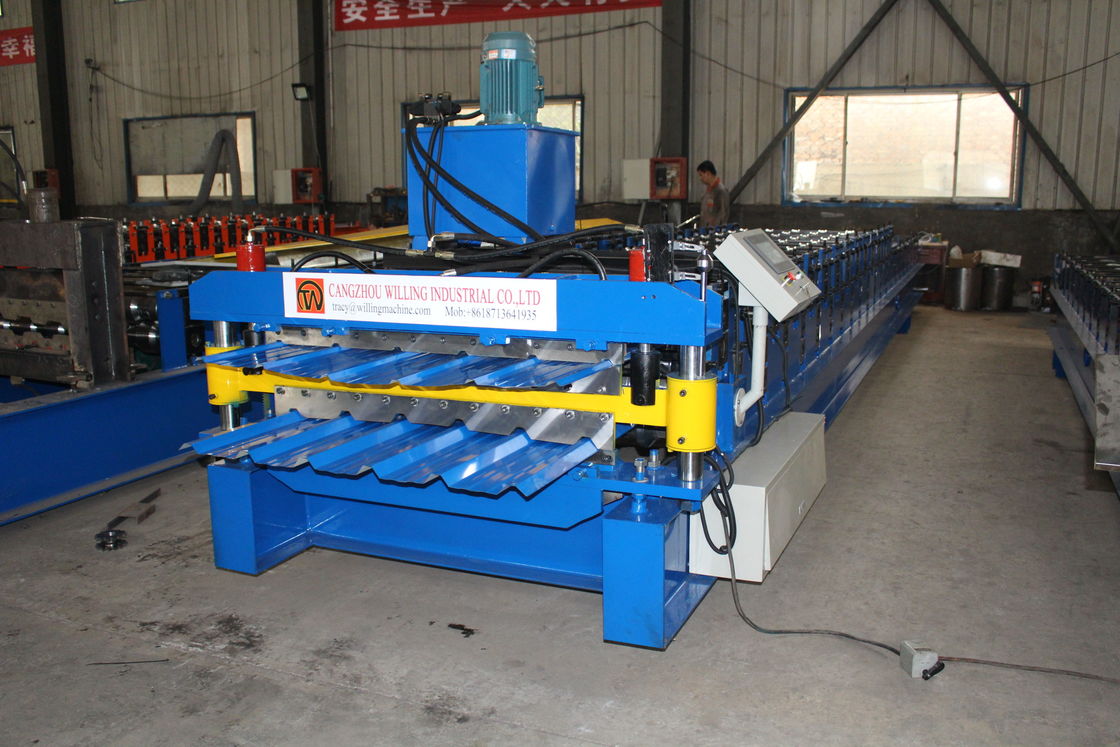

Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase

It makes colored steel roof plates of different shapes, which are used in buildings, factories, supermarkets, etc. For this machine, it is suitable for winding width of 1250mm and thickness range from 0.2 mm to 0.6 mm. We use the 16 mm thick wall panel type to make the rack strong. Generally, it can run to 15m/min at the highest speed. PLC and touch screen operation make the machine easy to use.

Specification

Main motor power	5.5kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	18 groups
Raw material	0.2-0.6mm
Coil width	1250mm
Working speed	7m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 5 ton
Size of machine	About 6300×1200×1500mm L x W x H
Color of machine	as per request
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Advantage

has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied

Application

Color profiled steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc
