Name: Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: چین دار هیدرولیک
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve

ppgl roofing forming machine,hydraulic crimping roofing forming machine,hydraulic crimping roof roll forming machine

hydraulic crimping roofing forming machine

hydraulic crimping roof roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

چین دار هیدرولیک

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه تشکیل سقف منحنی فلزی قوس دار هیدرولیک

مواد خام:

PPGL,GL,PPGI,GI,

ابعاد (L*W*H):

2050*1500*1300

ضخامت نورد:

0.3-0.7 میلی متر

ماده شفت:

45# قطر بیرونی فولاد: 70 میلی متر

قاب اصلی:

فولاد 350H

سیستم کنترل:

PLC

ولتاژ:

220V/380V/440V

برجسته کردن:

ppgl roofing forming machine,hydraulic crimping roofing forming machine,hydraulic crimping roof roll forming machine

hydraulic crimping roofing forming machine

hydraulic crimping roof roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

40 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

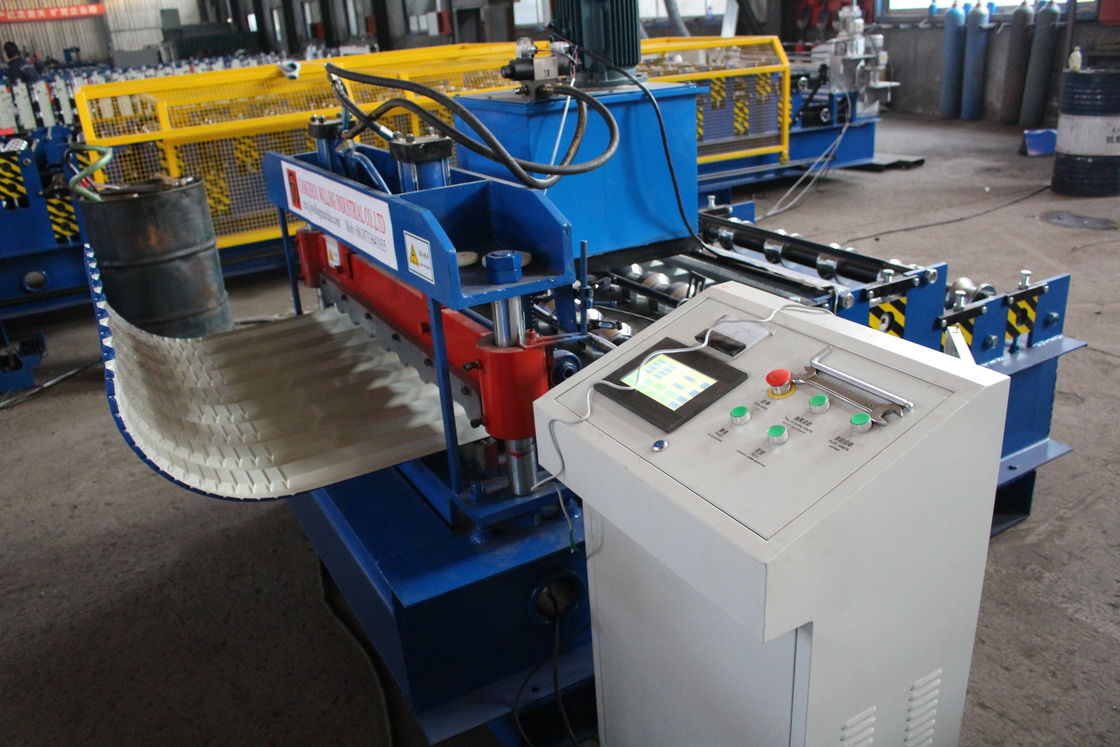

Hydraulic Crimping Arch Metal Curve Roofing Forming Machine

The vertical seam roof bending machine is used to bend the vertical seam roof truss into concave and convex shape, roll forming in three steps, and select gear transmission. It can bend both aluminum plates and metal plates. This vertical roof can be used to build more beautiful steel houses and large sports halls. With such a small design, you can take this machine anywhere in your steel construction project.

Specification

Product name	Color Steel Roof Curving Machine
Size	15008502000mm
Weight	1200KGS
Voltage	380V/50HZ/3PH
Motor Power	4KW
Hydraulic Power	3KW
Motor for changing models Power	0.37KW
Curved Thickness for Aluminum	0.8-1.2mm
Curved Thickness for Steel	0.7-1.0mm
Width of straight roofing to curve	300mm to 600mm
Min.Width of Tapered Roofing to Curved	250mm
Max.Width of Tapered Roofing to Curved	500mm
Working Speed	10-16m/min

Application

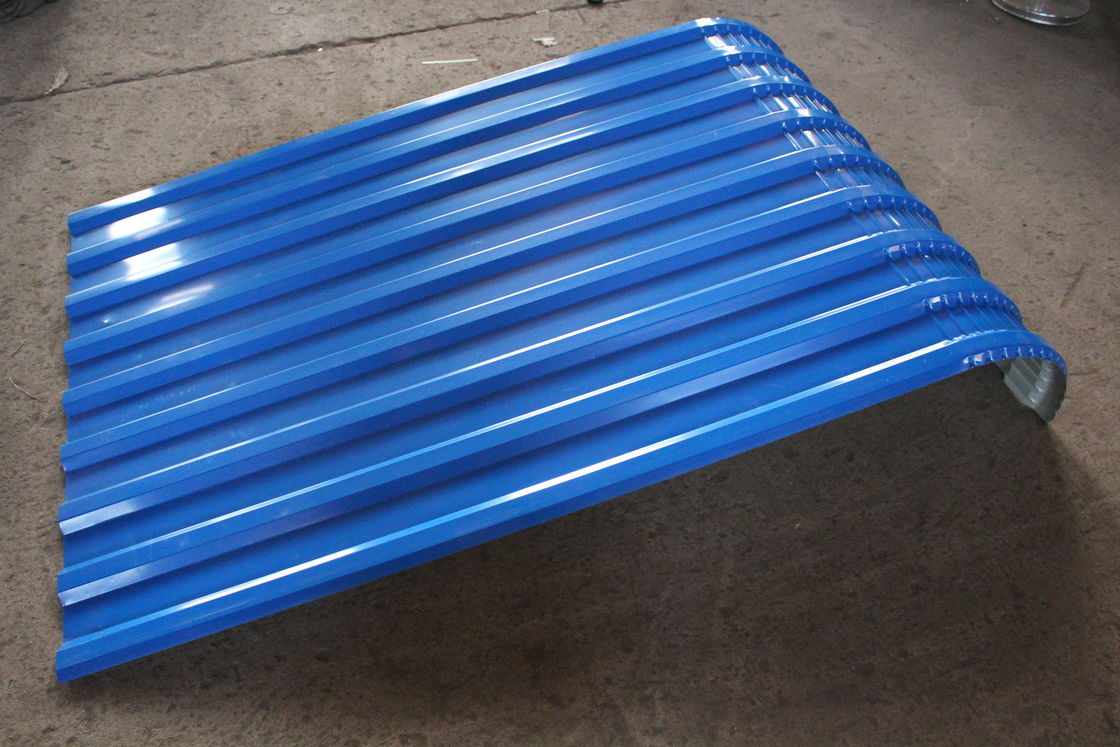

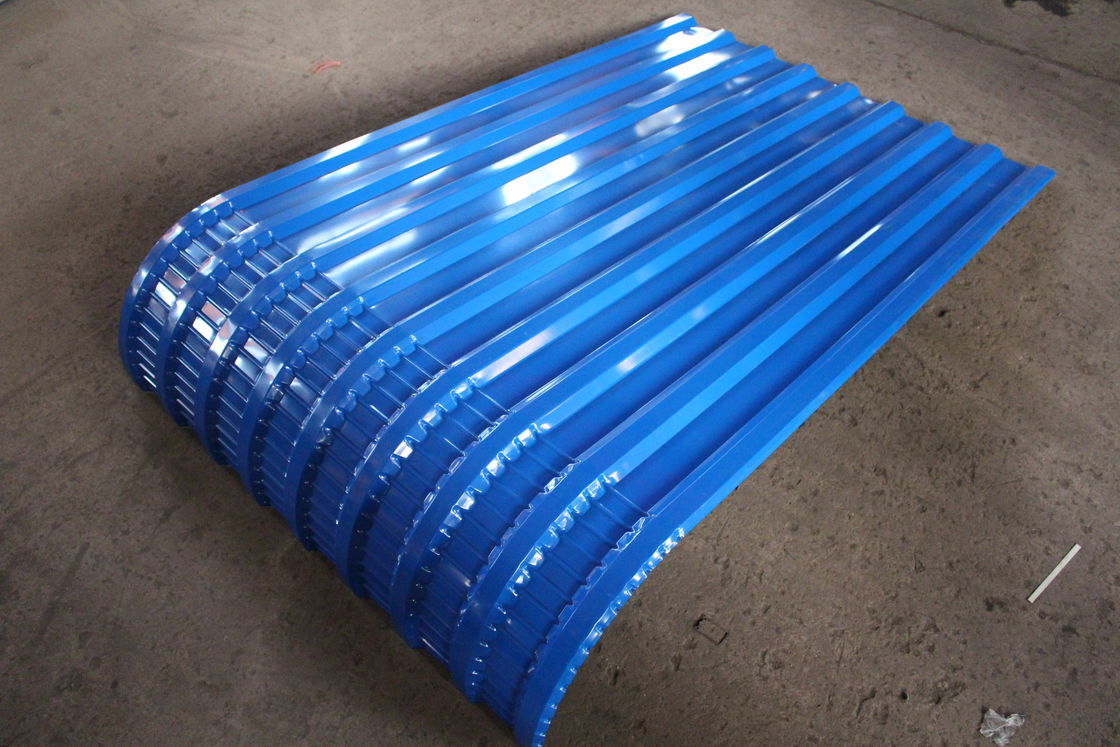

This Curved roofing arch sheet building machine hydraulic crimping machine will be very smooth and beautiful without any scratch on surface.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.Fully Automatic Control System with PLC.Easy operation: Key in the length and quantity on the control panel.

Payment terms

40% in advance.

60% before the shipment is processed.

Delivery

FOB Tianjin Xingang Port or CNF Designated port

The Delivery Time: 30 days after the down payment is received
