Name: Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: هشت ضلعی
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Octagonal Tube Stud And Track Roll Forming Machine Galvanized Steel

octagonal tube stud roll forming machine,galvanized steel stud and track machine,20m/min stud and track machine

galvanized steel stud and track machine

20m/min stud and track machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

هشت ضلعی

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ لوله و مسیر لوله هشت ضلعی فولادی گالوانیزه

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

15-20 متر در دقیقه

عرض تغذیه:

طبق درخواست

ابعاد (L*W*H):

5000*600*900

وزن:

3500 کیلوگرم

اجزای اصلی:

موتور ، PLC

ماده غلتکی:

Gcr15 فولاد کروم اندود

برجسته کردن:

octagonal tube stud roll forming machine,galvanized steel stud and track machine,20m/min stud and track machine

galvanized steel stud and track machine

20m/min stud and track machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

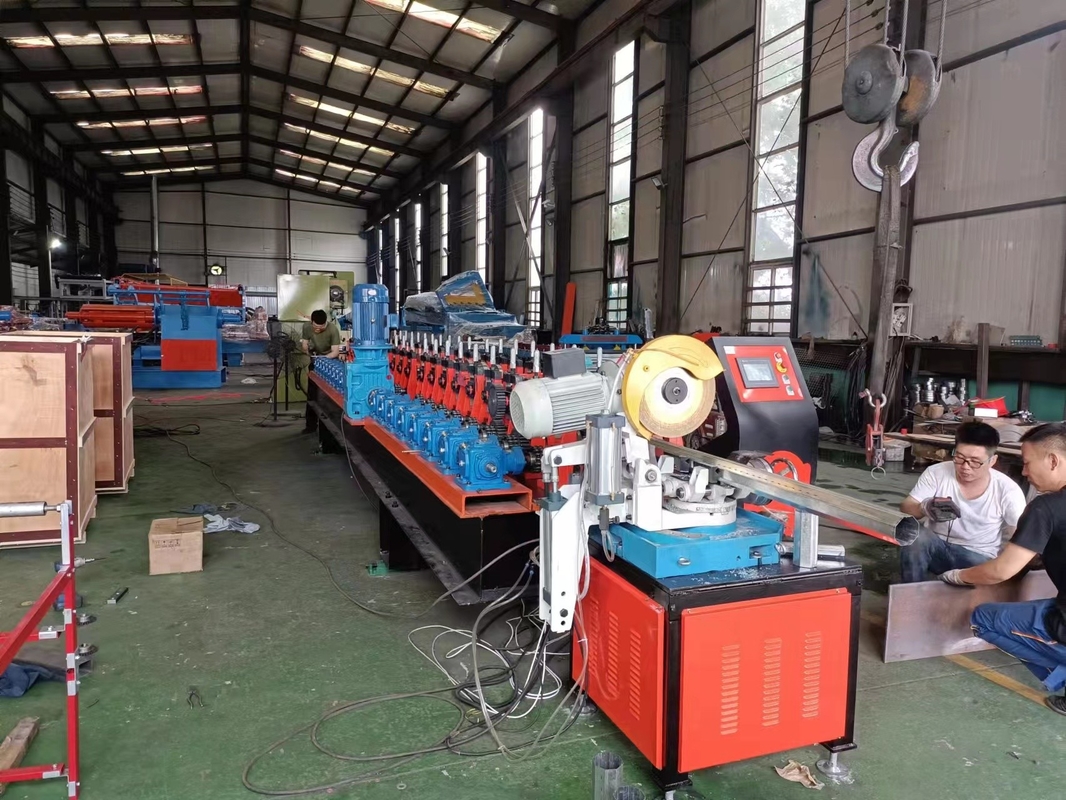

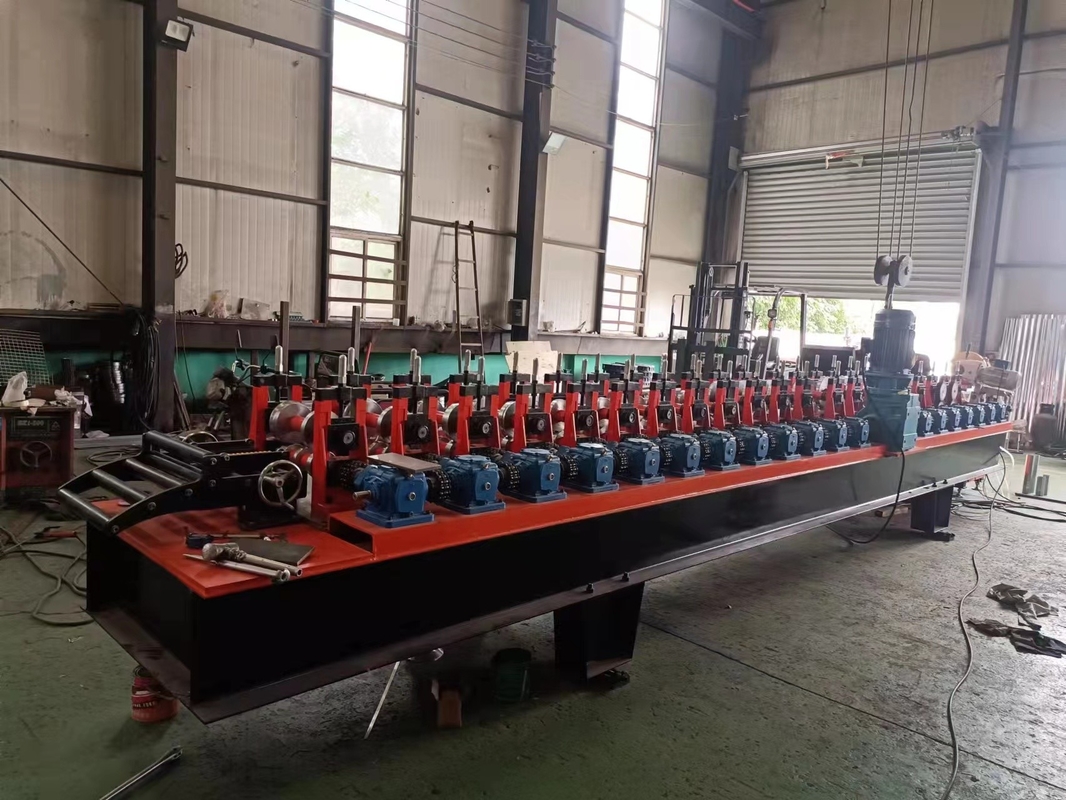

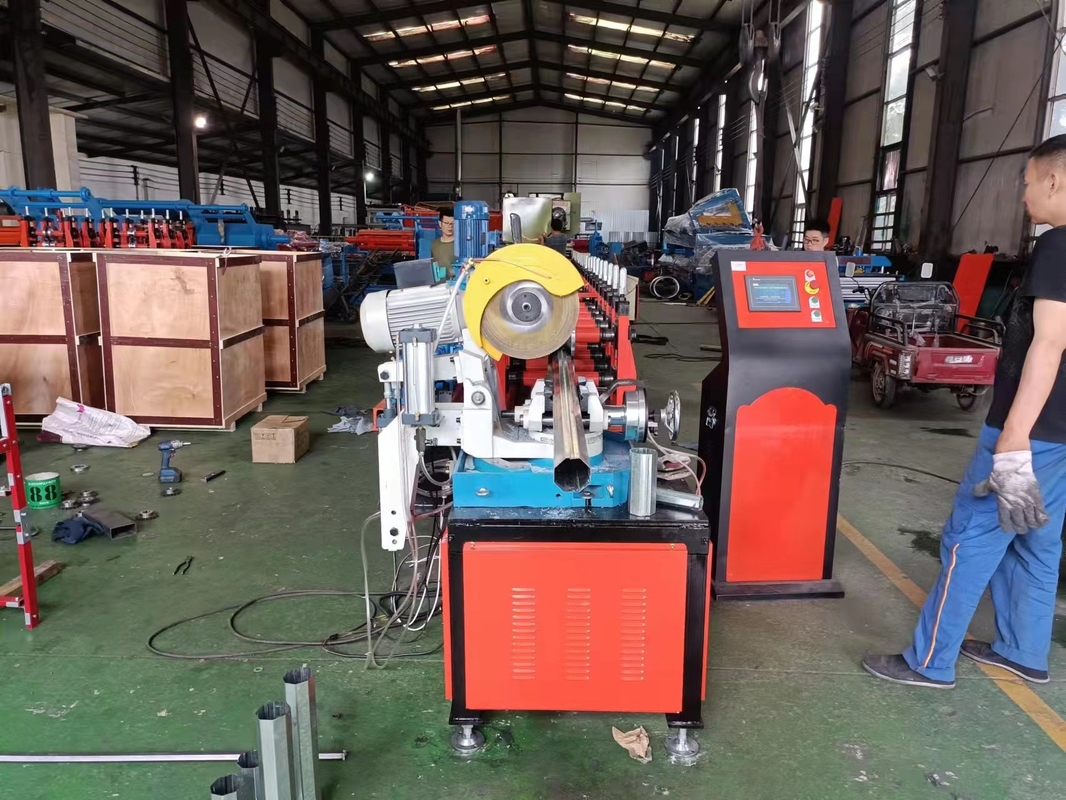

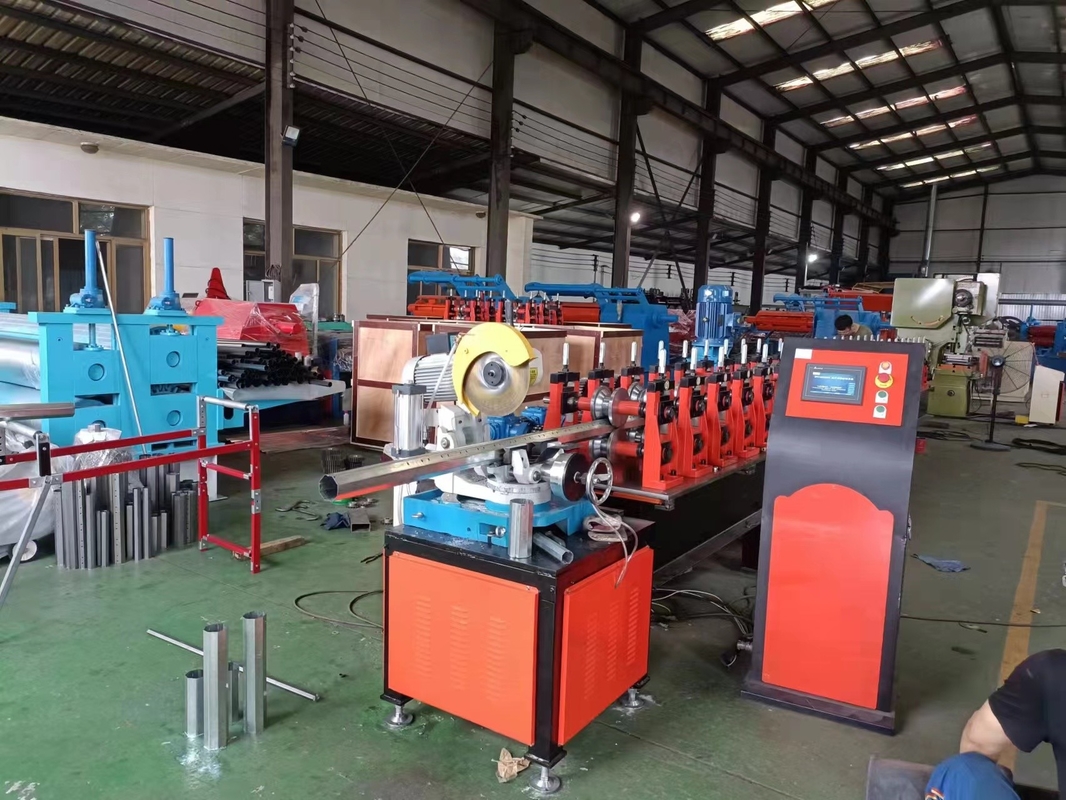

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine

The octagonal pipe production line is one of the components of rolling door equipment. It is used to collect the "octagonal tube" scroll of rolling door leaves and rolling door panels. It should be used in supermarkets, shops, private residential garages, warehouses, factory buildings and other rolling door.

Specification

Galvanized Steel Octagonal Tube Stud And Track Roll Forming Machine
Metal material thickness	0.3 - 0.6mm
Metal material width	235mm or as client require
Roller Stage	22 forming rows
Roller Material	Gcr15 steel with chromium plate
Diameter of shaft	Φ70mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H Steel
Side Panel of Machine	25mm
Cutting Type	No Stop Sawing Cutting
Motor power	5.5 kw
Hydraulic power	4 kw
Productivity	15-20 meters per minute
Plc control system	Delta or as customer require

Guarantee

In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB or CNF
The Delivery Time: 30-40 days after the down payment is received.
