Name: Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درب کرکره ای
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged

Aluminum Shutter Door Rolling Machine,Forged Shutter Door Rolling Machine,Shutter Door Rolling Machine 380V 50Hz

Forged Shutter Door Rolling Machine

Shutter Door Rolling Machine 380V 50Hz

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

درب کرکره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه نورد درب کرکره آلومینیومی 380 ولت 50 هرتز درجه بالا شماره 45 فورج

مواد خام:

گالوالوم، گالوانیزه، PPGI

وزن:

حدود 3.5 تن

ضخامت مواد:

0.3 میلی متر - 0.8 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

15-20 متر در دقیقه

ماده شفت:

درجه عالی No.45 فورج

جنس برش::

فولاد قالب CR12 با عملیات خاموش شده

برجسته کردن:

Aluminum Shutter Door Rolling Machine,Forged Shutter Door Rolling Machine,Shutter Door Rolling Machine 380V 50Hz

Forged Shutter Door Rolling Machine

Shutter Door Rolling Machine 380V 50Hz

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

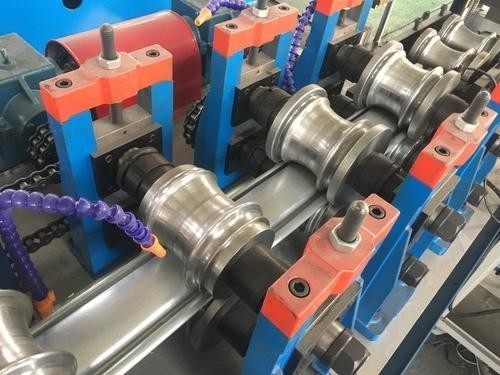

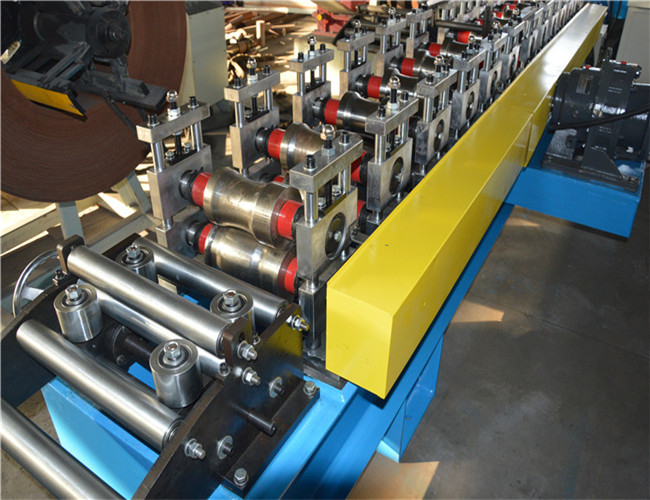

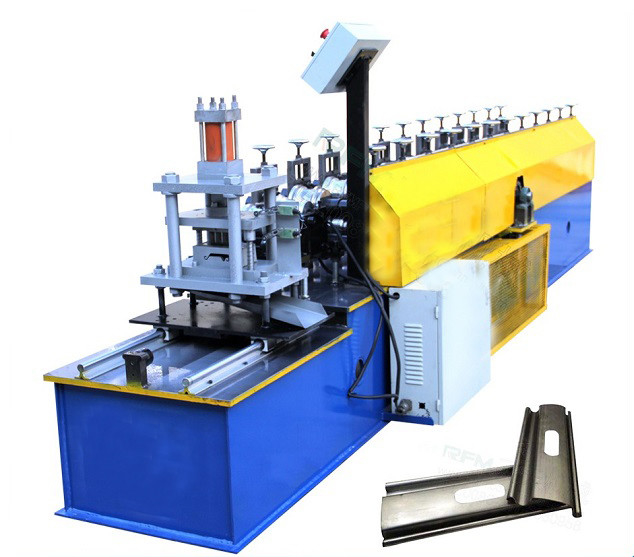

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged

1. This shutter door roll forming machine is widely used for garage door /commercial door / industrial door and so on .
2. A whole shutter door main inculde three parts , shutter door salt and sliding U guide rail with bottom strip . These three part work together to give us a safity environment .
3. it can embossing different patterns according to customer's requirements. Meanwhile, it has manual and automatic two operate model, in this way, client can easy operat this machine.
As to the shutter door can protect the shop or garage well , it is very popular in the world and has a large market .

Specification

Machine Specifications
Size	About 5.6mx1.2mx1.3m(length x width x height)
Color	Main color: blue or as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.5-0.8mm or 0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	11-12
Diameter of forming rollers shafts	60mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 4kw
Electric Power requirement	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
