Cold Panel Metal Roofing Sheet Roll Forming Machine Hydraulic

Metal Roofing Sheet Roll Forming Machine,ISO Metal Roofing Sheet Making Machine

ISO Metal Roofing Sheet Making Machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ ورق سقف فلزی دستگاه ساخت ورق سقفی پنل سرد

روش:

فشار هیدرولیکی

ظرفیت تولید:

8-10 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

عرض تغذیه:

900 میلی متر

مواد غلتکی (سخت):

Cr12، حرارت داده شده و خاموش، پرداخت

ابعاد (L*W*H):

6500*1300*1500

ضخامت نورد:

0.3-0.8mm

زیر قاب:

350H-beam، ساختار جوش

مواد پیش برش:

cr12mov

مواد خام:

GI,PPGI,PPGL

قطر شافت:

70 میلی متر

برجسته کردن:

Metal Roofing Sheet Roll Forming Machine,ISO Metal Roofing Sheet Making Machine

ISO Metal Roofing Sheet Making Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine.Main Features:

1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

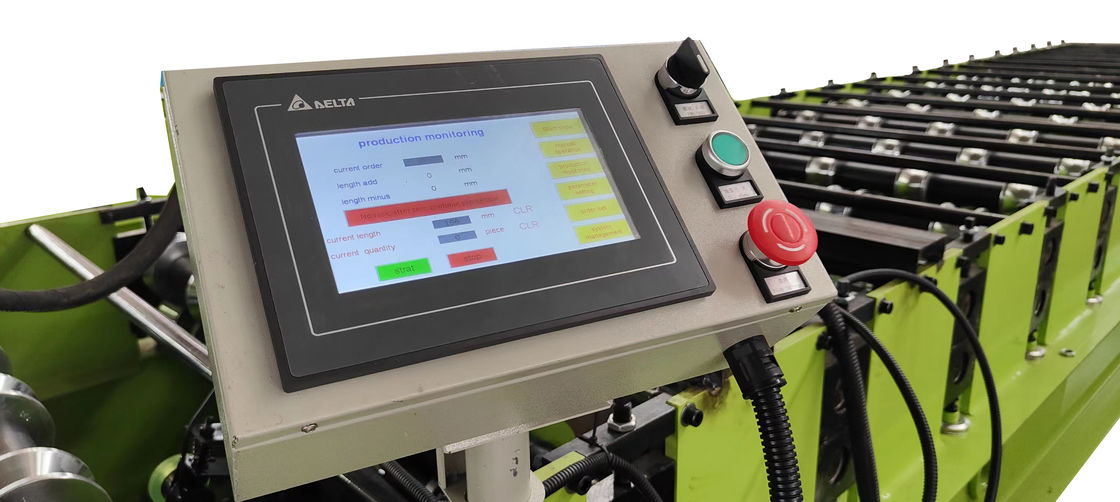

3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.

we have approved certification of ce iso9001,the concept control everyone orocess and perfect all products is curved in everyone mind ,each machine.will be via load carrying test before leaving factory,problem machines will never be delivered to customer.

we are willing to promote the economic and technical,exchange with the word ,and do positive work to enhance the between people from different countries,we sincerely hope you and hand in hand ,create the glorious future altogether.

Specification

SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE
Raw Material	feeding width	mm	1220
	effective width	mm	1000
	thickness	mm	0.3-0.8
Main Roll Forming Machine	roller material		45# steel plated with chrome
	diameter of shaft	mm	70
	roller station	steps	16
Main Configuration	main motor power	kw	5.5
	hydraulic station power	Kw	4
	control system	PLC brand	Mitsubishi

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
