Name: Down Pipe Gutter Downspout Making Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دهانه مربع / گرد رو به پایین
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Down Pipe Gutter Downspout Making Machine Full Automatic

Gutter Downspout Making Machine,PLC Downspout Making Machine,PLC Gutter Downspout Machine

PLC Downspout Making Machine

PLC Gutter Downspout Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دهانه مربع / گرد رو به پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

Down Pipe Roll Forming Machine دستگاه ساخت ناودان Downspout

ظرفیت تولید:

8-12 متر در دقیقه

وزن:

5 تن

ضخامت:

0.3-0.8 میلی متر

سیستم کنترل:

PLC

عرض تغذیه:

1220 میلی متر

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

اتهام اتوماسیون:

تمام توان

نوع برش:

برش هیدرولیکی

برجسته کردن:

Gutter Downspout Making Machine,PLC Downspout Making Machine,PLC Gutter Downspout Machine

PLC Downspout Making Machine

PLC Gutter Downspout Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Down Pipe Roll Forming Machine Gutter Downspout Making Machine

Down Pipe Roll Forming Machine Gutter Downspout Making Machine Advantage :

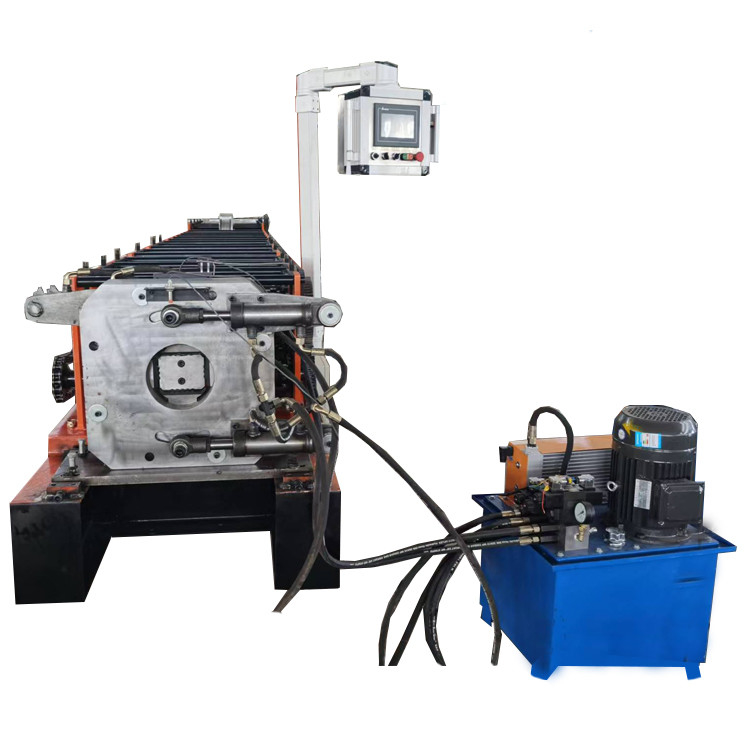

downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table
1. The whole line working speed is about 10m/min.,max working speed could be 15 meters per minute.
2. Feeding material width should be confirmed before machine design .the width are changeable,
3. Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
4. Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing
5. Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
6. Pre-cutting are provided as you want.

Specification

Down Pipe Roll Forming Machine Gutter Downspout Making Machine
No.	Item	Specifications
1	Coil Width	according to drawings
2	Diameter of shaft	70mm
3	Forming Speed	8-12meters/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel
8	Cutting type	hydraulic -cutting
9	Main power	4kw+3kw
10	Main frame	300H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(LWH)	About 6.51.21.2M
16	Weight	about 3 tons

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
