Name: Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه رول شکل دهی لوله پایین
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic

Metal Square Downpipe Roll Forming Machine,PCL Square Downpipe Roll Forming Machine

PCL Square Downpipe Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین آلات شکل دهی رول لوله مربعی فلزی برای Rainspout تمام اتوماتیک

ظرفیت تولید:

8-10 متر در دقیقه

برش مواد تیغه:

Cr 12 Mov

ضخامت:

2.0-3.0 میلی متر

صفحه نمایش لمسی:

نام تجاری زیمنس یا به عنوان نیاز مشتری

روش انتقال:

درایو موتور

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

سیستم کنترل:

PCL

قفسه محصول:

بدون برق، طول 4 متر

برجسته کردن:

Metal Square Downpipe Roll Forming Machine,PCL Square Downpipe Roll Forming Machine

PCL Square Downpipe Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

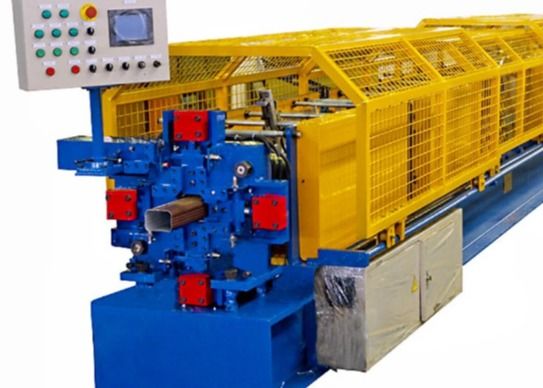

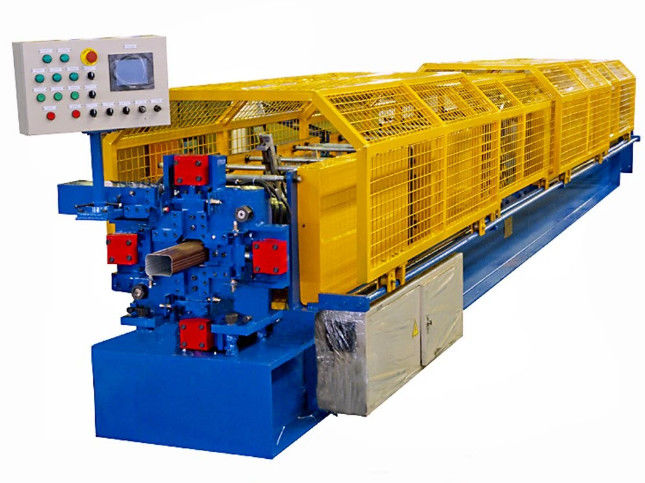

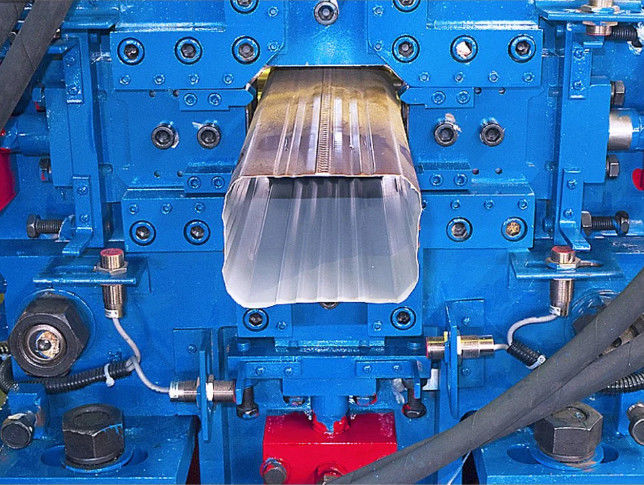

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic

Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.

Specification

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	2.0-3.0mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	17stages
Material of forming roller	1. 45# steel, CNC lathes, Hard Chrome Coated 2. 40Cr, heat treatment, nitrided treatment
Shafts Diameter	Φ75/95mm
Main motor power	18.5KWwith reducer
Max. Line speed of roll former	8-10m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	22KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9840mm×2030mm×1130mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
