Name: Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه رول شکل دهی لوله پایین
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span

PCL Cold Roll Forming Machine,Downpipe Cold Roll Forming Machine,PCL Downpipe Roll Forming Machine

Downpipe Cold Roll Forming Machine

PCL Downpipe Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی لوله سرد لوله ناودان باران مربعی K Span

ظرفیت تولید:

8-15 متر در دقیقه

برش مواد تیغه:

Cr 12 Mov

ضخامت:

0.4-0.6 میلی متر

صفحه نمایش لمسی:

نام تجاری زیمنس یا به عنوان نیاز مشتری

وزن ناخالص در واحد محصول:

9500 کیلوگرم

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

سیستم کنترل:

PCL

مراحل رول:

16 مرحله

برجسته کردن:

PCL Cold Roll Forming Machine,Downpipe Cold Roll Forming Machine,PCL Downpipe Roll Forming Machine

Downpipe Cold Roll Forming Machine

PCL Downpipe Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

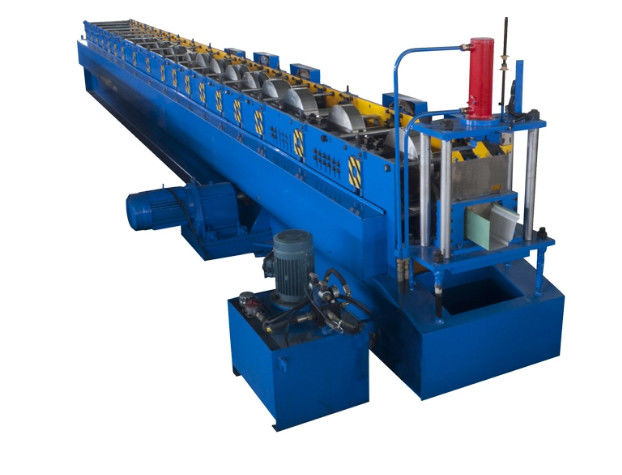

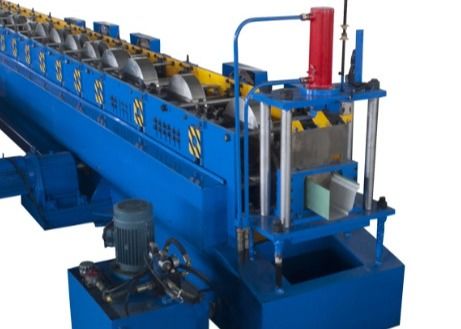

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

Specification

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span parameter
Suitable roll forming material	Color steel sheet
Thickness	0.4-0.6mm
Frame design	Wall-plate-frame-design /New-stand-frame-design
Roll stages	16 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Machine Dimensions	8850mm×1280mm×1550mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
