Steel Metal Water Gutter Roll Forming Machine Automatic

Automatic Water Gutter Roll Forming Machine,Metal Water Gutter Roll Forming Machine,5.5KW Siemens Roll Forming Machine

Metal Water Gutter Roll Forming Machine

5.5KW Siemens Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی اتوماتیک ناودان آب فلزی بام فولادی زه آب فلزی

سرعت:

45 متر در دقیقه

برش مواد تیغه:

Cr 12 Mov

ضخامت نورد:

0.3-0.8mm

عرض تغذیه:

330 میلی متر

وزن ناخالص در واحد محصول:

2.5T

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

سیستم کنترل:

PCL

نکات کلیدی فروش:

دقت بالا

برجسته کردن:

Automatic Water Gutter Roll Forming Machine,Metal Water Gutter Roll Forming Machine,5.5KW Siemens Roll Forming Machine

Metal Water Gutter Roll Forming Machine

5.5KW Siemens Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

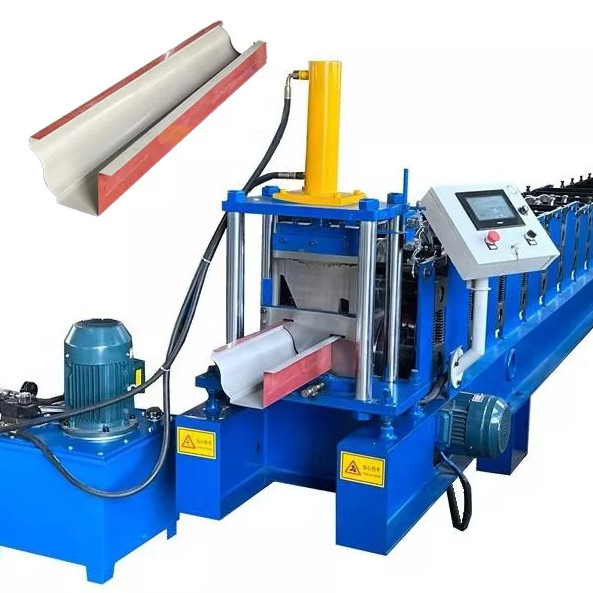

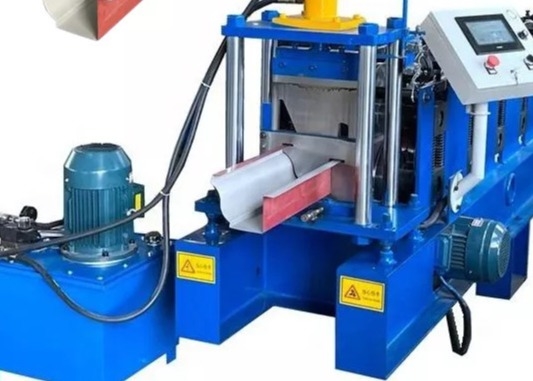

Automatic Metal Water Gutter Roll Forming Machine Steel Roofing Metal Water Gutter

Automatic Metal Water Gutter Roll Forming Machine Steel Roofing Metal Water Gutter can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

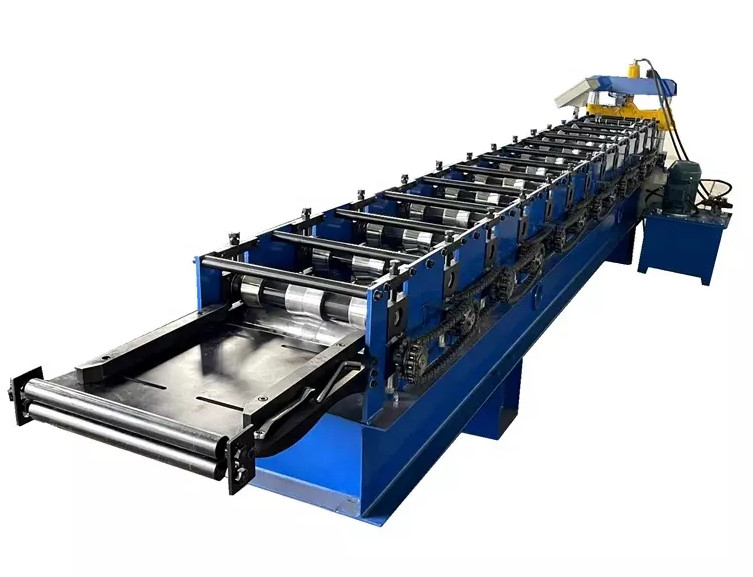

seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

Specification

Suitable material	PPGI GI AL
Thickness	0.3-0.5mm as custom
Power	380V 50Hz 3Phase as custom
Main motor	5.5KW Siemens
Hydraulic motor	4KW Siemens
Speed	45m/min
Forming stations	12 rows
Roller material	Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material	45# steel quenched and tempered
Shaft diameter	50mm
Drive	Gear
Screem HMI	Delta , Touch Screen
PLC	Delta , Siemens
Processing precision	Within 1mm
Size	4.6m×1.5m×1.2m
Weight	2.5T

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
