1"13/4"Metal Snap Lock Standing Seam Roll Forming Machine

Roofing Panel Roll Forming Machine 1",Roofing Panel Roll Forming Machine 13/4",Snap Lock Standing Seam Roll Forming Machine

Roofing Panel Roll Forming Machine 13/4"

Snap Lock Standing Seam Roll Forming Machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ پانل سقف درز ایستاده دستگاه ساخت قفل فلزی 1 اینچ 13/4

ظرفیت تولید:

15 متر/دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

ضخامت نورد:

0.4-0.8 میلی متر

سرعت ماشین:

8-20 متر در دقیقه

عرض تغذیه:

600 میلی متر

ماده غلتکی:

45# فولاد کروم اندود

اجزای اصلی:

موتور، پمپ، موتور، PLC

مواد خام:

GI,PPGI,PPGL

برجسته کردن:

Roofing Panel Roll Forming Machine 1",Roofing Panel Roll Forming Machine 13/4",Snap Lock Standing Seam Roll Forming Machine

Roofing Panel Roll Forming Machine 13/4"

Snap Lock Standing Seam Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

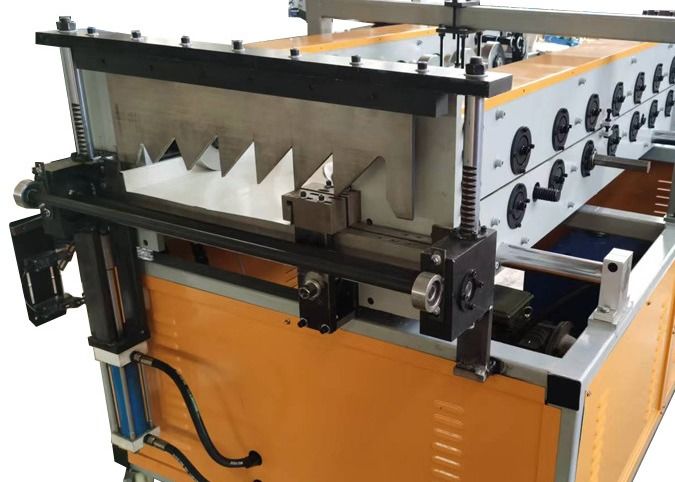

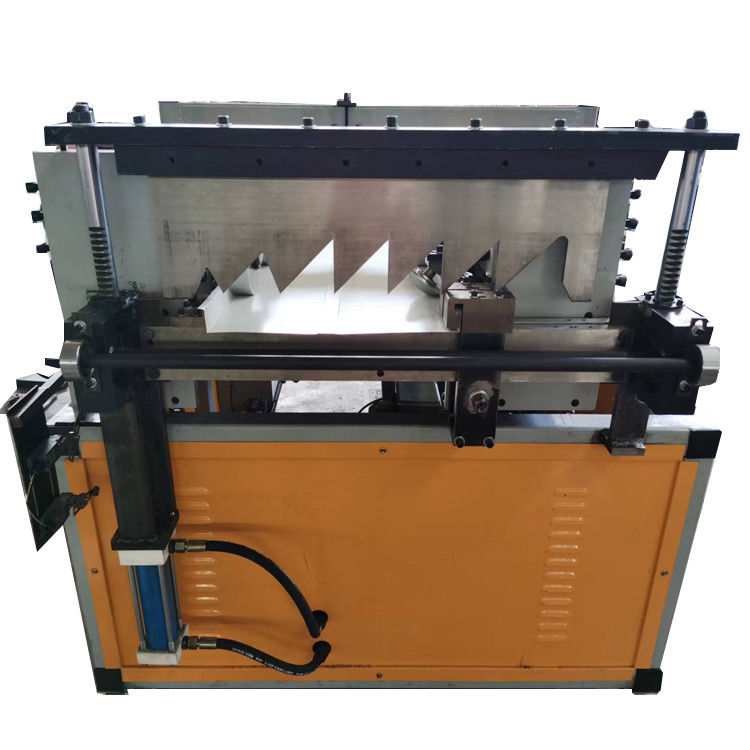

Standing Seam Roofing Panel Roll Forming Machine 1"13/4"Metal Snap Lock Making Machine

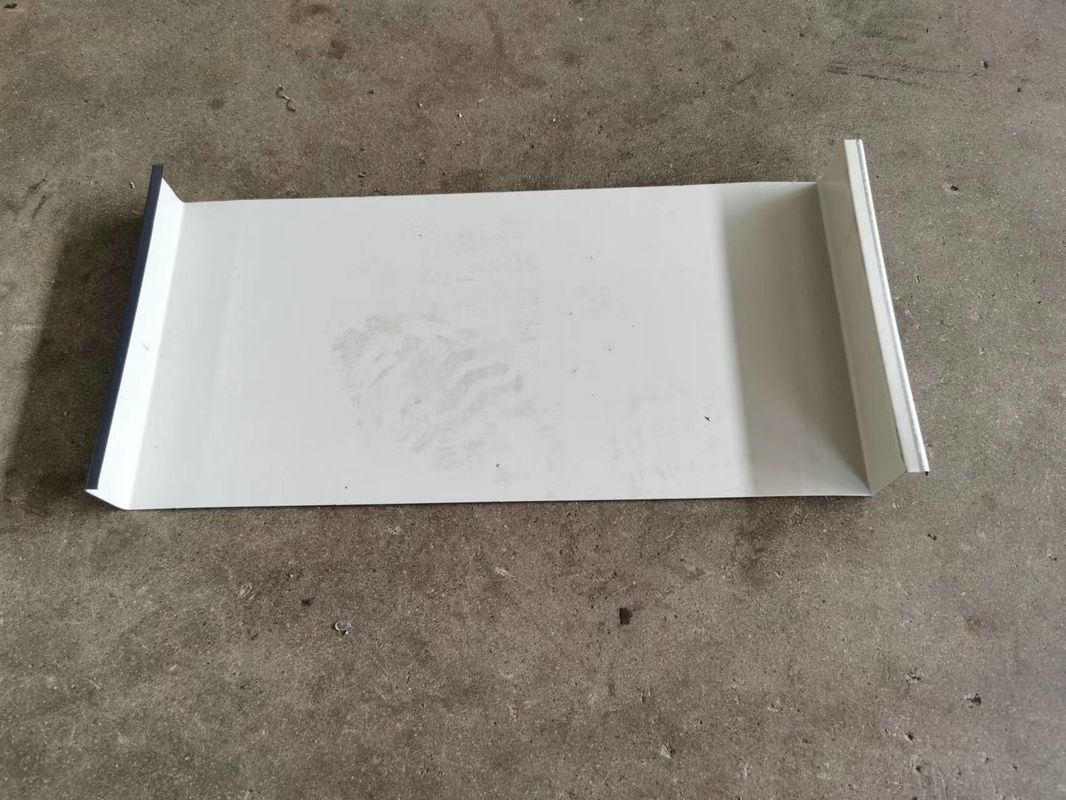

Standing Seam Roofing Panel Roll Forming Machine 1"13/4"Metal Snap Lock Making Machine is used to make unexposed screw roof sheet.

Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels!

The material thickness varies from 0.4-0.9mm,in some places such as USA,they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.

Specification

1	Material Width	290-600mm
2	Effective Width	220-530mm
3	Thickness of Coil	0.5-0.8mm
4	Application	standing seam roof panel
5	Estimated Dimension	1500mmX1100mmX1200mm
6	Total Weight	1.9 Tons
7	Main Power	4.5KW
8	Decoiler	Manual or Hydraulic Decoiler
9	Inner Diameter	508mm
10	Outer Diameter	600
12	Forming Speed	0-11m/min
13	Forming Station	6 stations
14	Bracket	Welded with 36 # I-steel
15	Material of Shaft	High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished
16	Diameter of the Roll	60mm
17	Material of Roller	High Quality Cr12 Quenched HRC58-62 °
18	Processing Technology	Rough Processing ---Refined Processing--Hard Chromium Plating.
19	Material of Rack	Complete Welded Structure of A3 Steel Plate 20 mm Thickness
20	Transmission	Chain driving
21	Material of cutting blade	Cr12 with Quenched Treatment 60-62 °
22	Cutting system	Hydraulic Stop or Tracking Cutting
23	Voltage	380V/50HZ/3 Phase or as Customer Require

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

1"13/4"Metal Snap Lock Standing Seam Roll Forming Machine 0
