Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile

Trapezoidal Roofing Sheet Roll Forming Machine,Metal Roofing Sheet Roll Forming Machine,10m/min Roll Forming Machine

Metal Roofing Sheet Roll Forming Machine

10m/min Roll Forming Machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی ورق فلزی بام ذوزنقه ای برای کاشی فولاد Ibr رنگ روی

مواد خام:

PPGI، GI، GL، PPGL

ظرفیت تولید:

8-10 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

ضخامت قاب:

18 میلی متر

مواد غلتکی (سخت):

Cr12، حرارت داده شده و خاموش، پرداخت

ابعاد (L*W*H):

حدود 6.1M*1.3M*1.2M

ماده شفت:

45# فولاد

زیر قاب:

350H-beam، ساختار جوش

برجسته کردن:

Trapezoidal Roofing Sheet Roll Forming Machine,Metal Roofing Sheet Roll Forming Machine,10m/min Roll Forming Machine

Metal Roofing Sheet Roll Forming Machine

10m/min Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

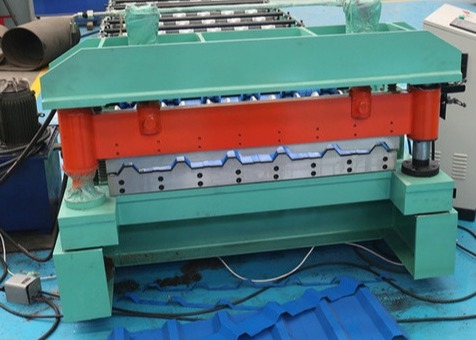

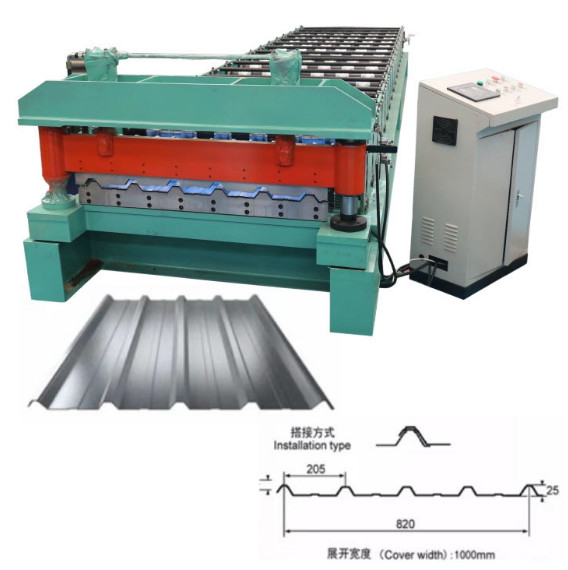

Trapezoidal Metal Roofing Sheet Roll Forming Machine For Zinc Color Steel Ibr Tile

The components of the roof panel roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, feeding table, main roll forming machine, electric/ hydraulic cutting system, plc control system, main motor, pump station, simple receving table/ Automatic stacker.

Different roof panel roll forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and other requirements. The steel roof wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

Specification

Machine Specifications
Weight	About 2.5tons
Size	About 6.1M1.3M1.2M(length x width x height)
Color	Main color: bule or as your need
Color	Warning color: yellow
Suitable Raw Material
Material	GI PPGI GL PPGL
Thickness	0.3-0.8mm
Yield Strength	235Mpa or as your need
Main Technical Parameters
Quantity of forming rollers stations	15
Diameter of forming rollers shafts	70mm
Roll Forming Speed	15m/min
Forming rollers material	45# steel, coated with chromed treatment
Cutter material	Cr12MOV, with quenched treatment
Controlling system	PLC
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 4kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
