Solar Structure Panel Roll Forming Machine 1.2mm - 2.5mm Material Thickness

Solar Structure Panel Roll Forming Machine,2.5mm Panel Roll Forming Machine,1.2mm Panel Roll Forming Machine

2.5mm Panel Roll Forming Machine

1.2mm Panel Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول شکل دهی پانل خورشیدی 1.2mm-2.5mm ضخامت مواد

نکات کلیدی فروش:

خودکار

سرعت ماشین:

20-25 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

ابعاد (L*W*H):

حدود 9500*1000*1200 میلی متر

ضخامت مواد اولیه:

1.2mm-2.5mm

مواد شیف:

فولاد C45

ماده غلتکی:

فولاد فورج 45#

نوع برش:

برش هیدرولیکی

ضخامت نورد:

1.5-2.5 میلی متر

مواد برش:

cr12mov

برجسته کردن:

Solar Structure Panel Roll Forming Machine,2.5mm Panel Roll Forming Machine,1.2mm Panel Roll Forming Machine

2.5mm Panel Roll Forming Machine

1.2mm Panel Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

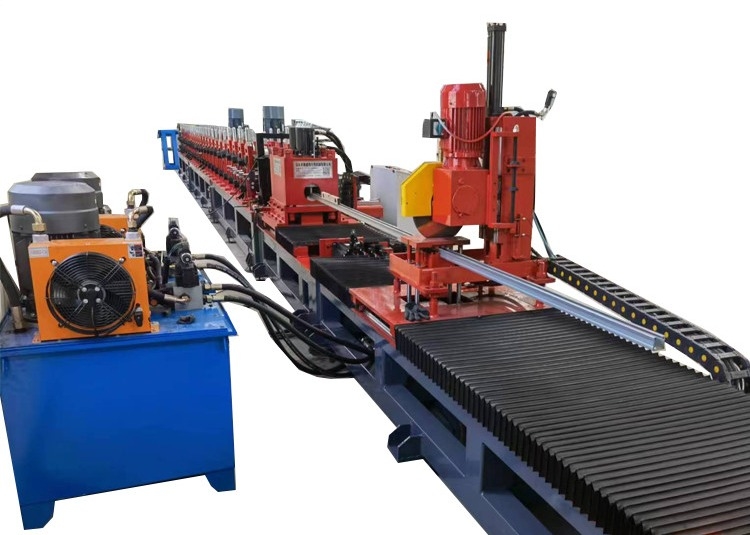

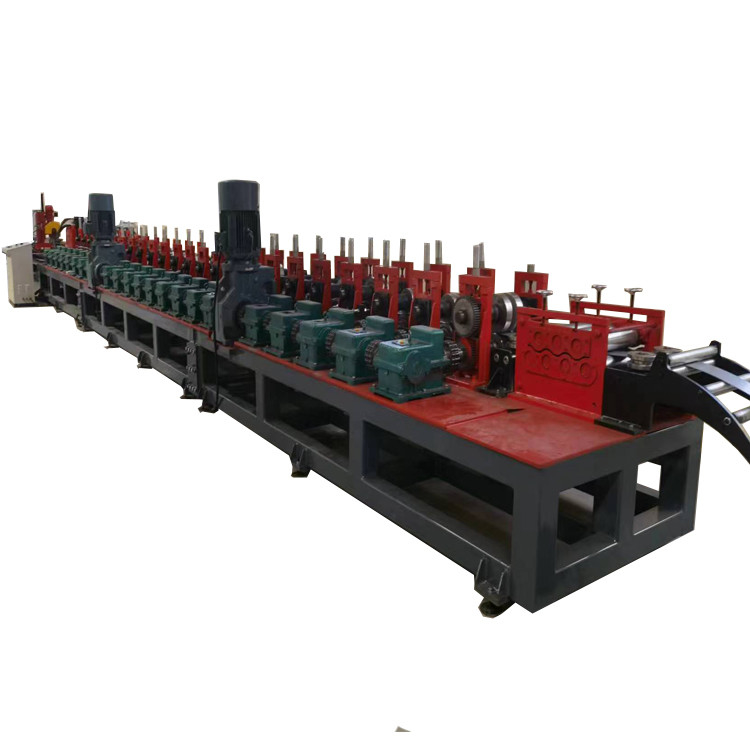

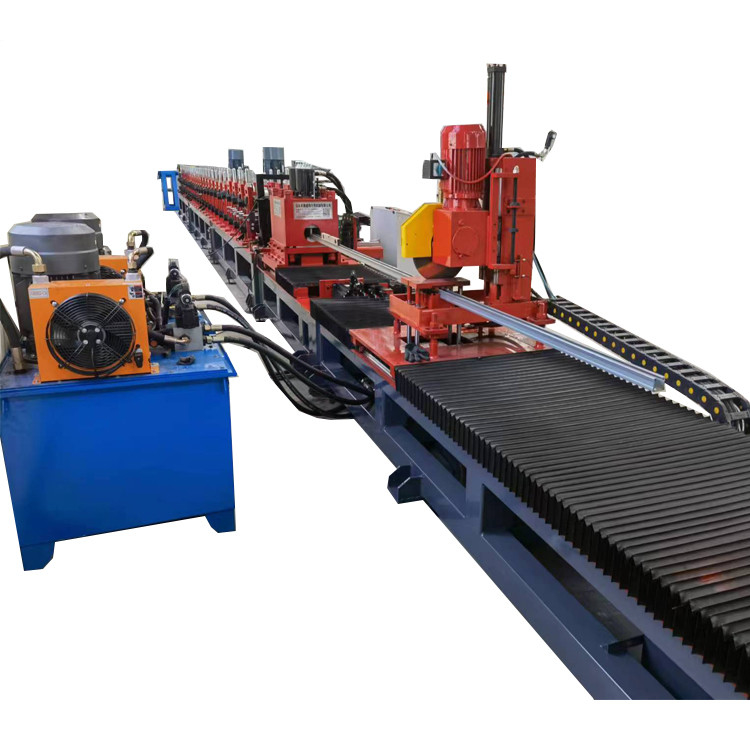

Solar Structure Panel Roll Forming Machine 1.2mm-2.5mm Material Thickness

Solar Structure Panel Roll Forming Machine 1.2mm-2.5mm Material Thickness

Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack

This machine is widely used in solar structure,kinds of shelves,ceiling frames, drywall partition, steel structure building, ect.

Our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

specifications

Machine Specifications
Weight	About 4tons
Size	About 10.2m1.2m1.3m(length x width x height)
Color	Main color: Red or as your requirements
Color	Warning color: yellow
Suitable Raw Material
Material	Cold-rolled strip steel, galvanized sheet
Thickness	1.2mm-2.5mm
Yield Strength	Q235-300
Main Technical Parameters
Quantity of forming rollers stations	21 stations
Diameter of forming rollers shafts	70mm
Roll Forming Speed	20m-25m/min
Forming rollers material	Gcr15
Cutter material	Cr12MOV
Controlling system	PLC
Electric Power requirement	Main motor power: 15kw+7.5KW
Electric voltage	According to customer’s requirement

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
