Name: 15 - 20m/Min Floor Decking Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

15 - 20m/Min Floor Decking Roll Forming Machine Hydraulic Cutting

15m/Min Floor Decking Roll Forming Machine,20m/Min Floor Decking Roll Forming Machine

20m/Min Floor Decking Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه برش هیدرولیک رول فرمینگ کف 15-20 متر/دقیقه

ابعاد (L*W*H):

16500*1500*1300

برش مواد تیغه:

CR12 خاموش شد

نوع کنترل:

سیستم PLC

ماده شفت:

درجه عالی No.45 فورج

وزن:

6000 کیلوگرم

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

15-20 متر در دقیقه

برجسته کردن:

15m/Min Floor Decking Roll Forming Machine,20m/Min Floor Decking Roll Forming Machine

20m/Min Floor Decking Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

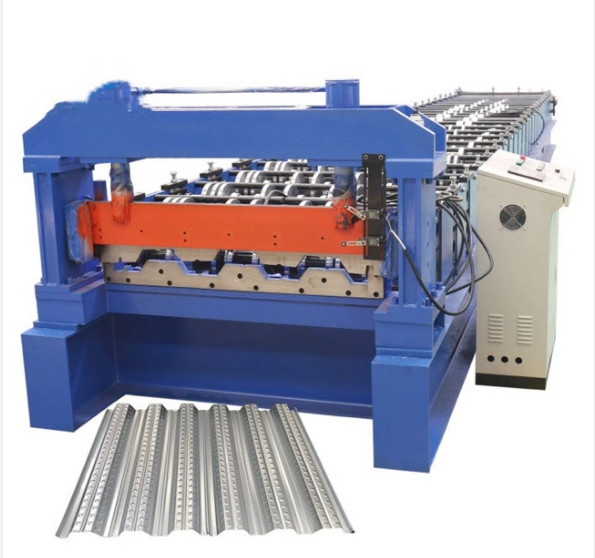

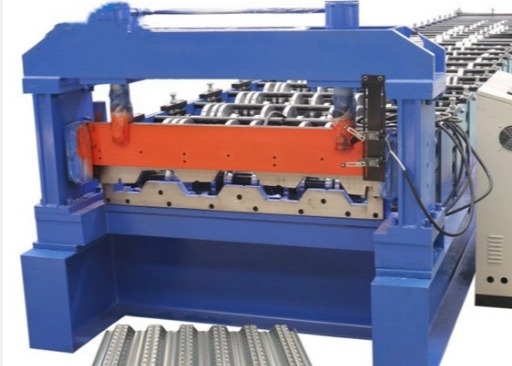

15-20m/Min Floor Decking Roll Forming Machine Hydraulic Cutting

15-20m/Min Floor Decking Roll Forming Machine Hydraulic Cutting.The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

- Floor decking sheet roll forming machine is automatic hydraulic shearing machine.
- The production is used for floor panels.The production has high wave, high strength and other characteristics.
- Floor decking sheet roll forming machine has a high degree automatically producing, and low cost.
- This machine is a new type of energy-saving and high-effective producing equipment for steel structure.

The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.

Specification

15-20m/Min Floor Decking Roll Forming Machine Hydraulic CuttingSpecifications
Weight	About 3tons
Size	About 12.5mx1.5mx1.3m(length x width x height)
Color	Machine Main color: blue or can as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils,color steel
Thickness	0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters

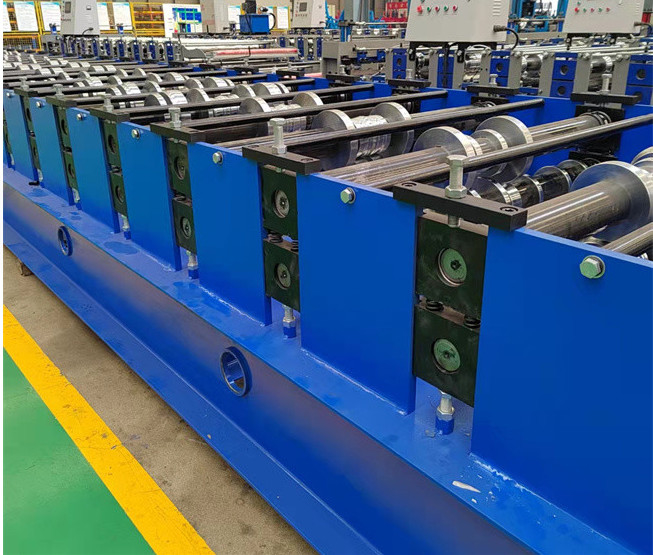

Quantity of forming rollers stations	25stations
Diameter of forming rollers shafts	95mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 18.5kw+18.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
