Name: High Speed Steel Floor Deck Machine 0.8 - 1.5mm Thickness Customized
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

High Speed Steel Floor Deck Machine 0.8 - 1.5mm Thickness Customized

1.5mm Steel Deck Roll Forming Machine,0.8mm Deck Floor Roll Forming Machine

0.8mm Deck Floor Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ماشین عرشه کف فولادی با سرعت بالا با ضخامت 0.8-1.5 میلی متر سفارشی شده است

ابعاد (L*W*H):

حدود 12.5mx1.5mx1.4m

برش مواد تیغه:

CR12 خاموش شد

نوع کنترل:

سیستم PLC

ماده شفت:

درجه عالی No.45 فورج

وزن:

6000 کیلوگرم

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

15-20 متر در دقیقه

ضخامت مواد:

0.8 تا 1.5 میلی متر

عرض سیم پیچ:

1200 میلی متر / 1220 میلی متر / 1250 میلی متر

برجسته کردن:

1.5mm Steel Deck Roll Forming Machine,0.8mm Deck Floor Roll Forming Machine

0.8mm Deck Floor Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

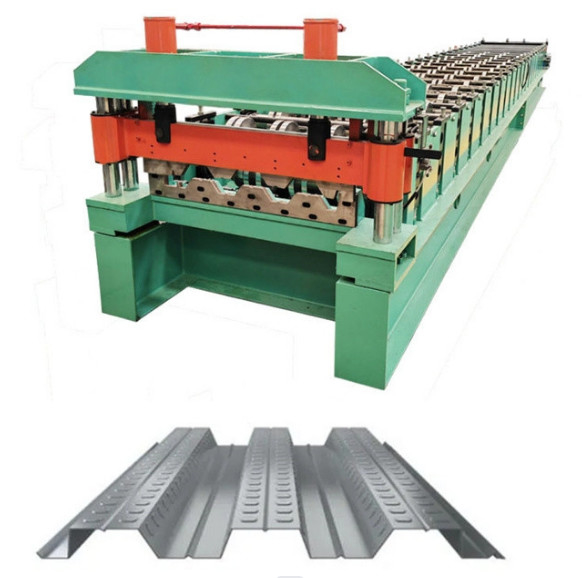

High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized

The floor deck roll forming machine can form the flat sheet into a customized shape, the raw amterial is gi,ppgi,color steel.

The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,
cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,
logistics centers, Olympic venues and gymnasium Steel structures.

Specification

High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized
Weight	About 3tons
Size	About 12.5mx1.5mx1.4m(length x width x height)
Color	Machine Main color: blue or can as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	24stations
Diameter of forming rollers shafts	95mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 18.5kw+18.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
